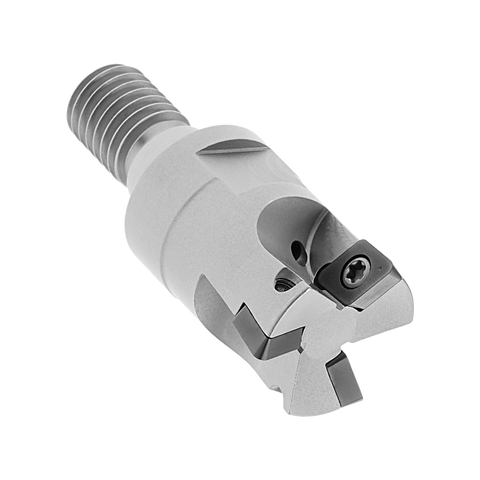

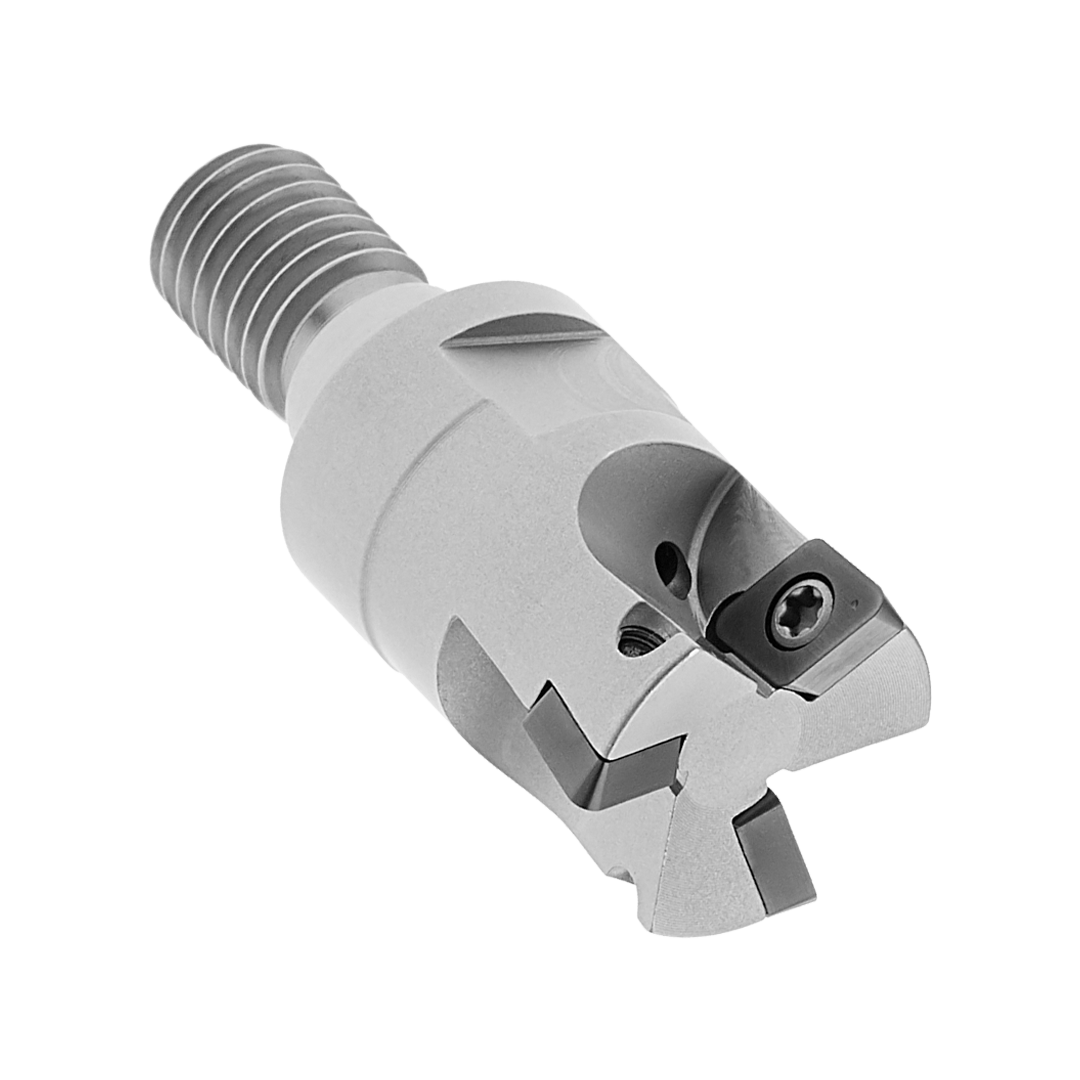

Palbit Threaded Coupling Holder - For XD0602 Inserts - 25mm Cutter Diameter - 181034000
| Insert Size & Shape | XD0602 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 95 |
Learn more about Klarna
Palbit Threaded Coupling Holder for XD0602 inserts delivers secure insert retention and exceptional rigidity, engineered for precise internal threading in demanding CNC applications. Designed to work with XD0602 inserts, this holder ensures accurate thread profiles and reliable performance across the full cutting envelope. Product code 181034000.
- Compatibility: Designed to mate with XD0602 inserts for consistent threading performance.
- Threaded Coupling Design: Secure retention that minimizes movement and ensures precise thread profiles.
- cutter Diameter: 25 mm cutter diameter optimized for standard internal threading operations.
- Rigidity: Engineered to provide outstanding stiffness, reducing deflection during cuts.
- Chip Evacuation: Facilitates effective chip removal to maintain cutting efficiency and surface finish.
- Tool Life: Enhanced durability and longevity through stable engagement and reduced vibration.
This holder helps deliver consistent internal thread quality, improved machining stability, and longer service life for your CNC threading processes. It supports reliable performance in high-precision environments, helping you meet tight tolerances with repeatable results.
| Insert Size & Shape | XD0602 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 95 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 30 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 40095 - Threaded Coupling
View full collection →You are viewing PAL-181034000. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181012200 | XD0602 | Profile Cutters | Threaded Coupling | 20 | 28 | £113.32 | 5 days | |
| PAL-181034000 Viewing | XD0602 | Profile Cutters | Threaded Coupling | 25 | 30 | £122.36 | 5 days | |
| PAL-181015600 | XD0602 | Profile Cutters | Threaded Coupling | 25 | 30 | £122.36 | 5 days | |
| PAL-181012100 | XD0602 | Profile Cutters | Threaded Coupling | 16 | 23 | £109.26 | 5 days |
