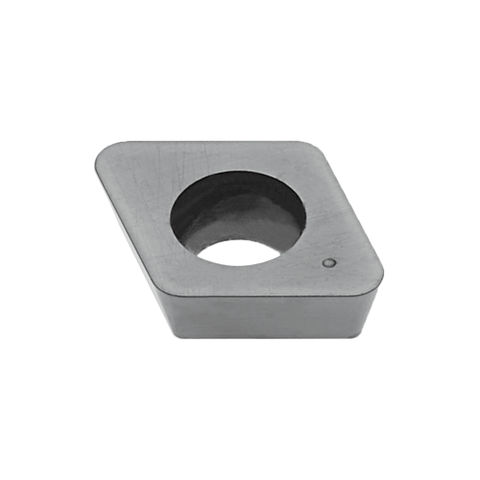

Palbit Indexable Milling Insert - for Profile Milling - XDHW 060210 PH6125
| ISO Code | XDHW 060210 PH6125 |
| Insert Size and Shape | XD0602 |
| Product Line | LINEPRO 40095 |
| Grade | PH6125 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 1 |
Learn more about Klarna
The Palbit XDHW indexable milling insert is designed for precision profile milling, delivering exceptional performance on complex contours and detailed surfaces. Built for reliability in demanding milling operations, it combines advanced cutting geometry with durable carbide construction to achieve smooth machining and high-quality finishes.
- Geometry: XDHW cutting geometry optimized for profile milling of complex contours and intricate details.
- Material: Robust carbide construction for wear resistance and longer tool life.
- Application: Specifically designed for precision profile milling tasks and fine surface features.
- Finish: Supports smooth cutting actions that yield superior surface finishes.
- Durability: Hardened insert design enables extended tool life under demanding milling conditions.
Using this insert helps you achieve accurate profiles with tight tolerances, reduce cycle times, and improve overall productivity. The XDHW geometry supports stable cutting and efficient chip control, enabling consistent results on challenging workpieces without frequent tool changes.
| ISO Code | XDHW 060210 PH6125 |
| Insert Size and Shape | XD0602 |
| Product Line | LINEPRO 40095 |
| Grade | PH6125 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 1 |
| Operation Type (CTPT) | Profile Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | X |
| Inscribed Circle Diameter (IC) | 6.5 |
| Insert Thickness (S) | 2.38 |
| Corner Radius (RE) | 1 |
| Cutting Edge Effective Length (LE) | 6.2 |
| Fixing Hole Diameter (D1) | 2.9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Palbit XDHW Inserts
View full collection →You are viewing PAL-111053278. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1110573M6 | XDHW 040110 PH6103 | XD0401 | LINEPRO 41095 | X | 1.59 | £7.16 | 5 days | |
| PAL-1110532M6 | XDHW 060210 PH6103 | XD0602 | LINEPRO 40095 | X | 2.38 | £7.16 | 5 days | |
| PAL-1110905P2 | XDHW 040105 PHD103 | XD0401 | LINEPRO 41095 | X | 1.59 | £33.65 | 5 days | |
| PAL-1110573P2 | XDHW 040110 PHD103 | XD0401 | LINEPRO 41095 | X | 1.59 | £33.65 | 5 days | |
| PAL-111057378 | XDHW 040110 PH6125 | XD0401 | LINEPRO 41095 | X | 1.59 | £7.16 | 5 days | |
| PAL-111057354 | XDHW 040110 PH6910 | XD0401 | LINEPRO 41095 | X | 1.59 | £7.16 | 5 days | |
| PAL-1110573M5 | XDHW 040110 PH0103 | XD0401 | LINEPRO 41095 | X | 1.59 | £7.16 | 5 days | |
| PAL-111056578 | XDHW 10T310 PH6125 | XD10T3 | LINEPRO 40595 | X | 3.97 | £8.20 | 5 days | |
| PAL-111056554 | XDHW 10T310 PH6910 | XD10T3 | LINEPRO 40595 | X | 3.97 | £8.20 | 5 days | |
| PAL-111056586 | XDHW 10T310 PH6135 | XD10T3 | LINEPRO 40595 | X | 3.97 | £8.20 | 5 days | |
| PAL-1110565M6 | XDHW 10T310 PH6103 | XD10T3 | LINEPRO 40595 | X | 3.97 | £8.20 | In Stock | |
| PAL-1110532P2 | XDHW 060210 PHD103 | XD0602 | LINEPRO 40095 | X | 2.38 | £36.47 | 5 days | |
| PAL-111053278 Viewing | XDHW 060210 PH6125 | XD0602 | LINEPRO 40095 | X | 2.38 | £7.16 | 5 days | |
| PAL-111053254 | XDHW 060210 PH6910 | XD0602 | LINEPRO 40095 | X | 2.38 | £7.16 | 5 days | |
| PAL-111053286 | XDHW 060210 PH6135 | XD0602 | LINEPRO 40095 | X | 2.38 | £7.16 | 5 days |
