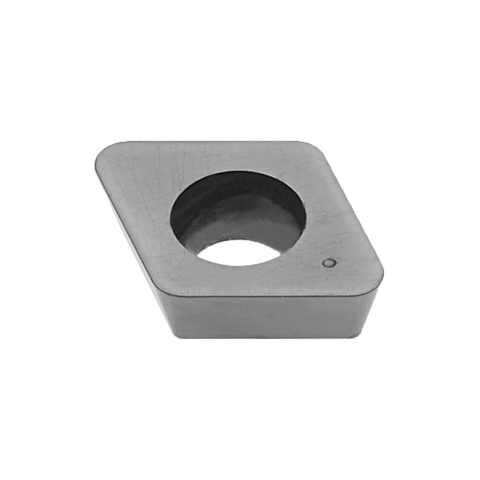

Palbit Indexable Milling Insert - for Profile Milling - XDHW 060210 PH6103

Palbit Indexable Milling Insert - for Profile Milling - XDHW 060210 PH6103

SKU:PAL-1110532M6
The Palbit XDHW indexable milling insert is engineered for precision profile milling, delivering clean contours on complex shapes and detailed surfaces. Application: Profile milling for complex ... Read more ↓
Material Compatibility
H
Specification
ISO CodeXDHW 060210 PH6103
Insert Size and ShapeXD0602
Product LineLINEPRO 40095
GradePH6103
HandNeutral
Cutting Edge Count (CEDC)1
View all specifications ↓
£7.16
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit XDHW indexable milling insert is engineered for precision profile milling, delivering clean contours on complex shapes and detailed surfaces.

  • Application: Profile milling for complex contours and intricate surface finishes.
  • Cutting Geometry: Advanced geometry designed for smooth cutting action and consistent chip formation.
  • Material: Durable carbide construction for extended tool life and reliable performance.
  • Indexable Design: Secure mounting in compatible milling tools with an indexable edge rotation for multiple uses.
  • Part/Code: XDHW 060210 PH6103

The XDHW insert enables precise, repeatable milling on challenging profiles while delivering superior surface finishes. Its carbide composition stands up to demanding materials, reducing wear and extending tool life. The optimized cutting geometry helps minimize cutting forces and chatter, supporting tighter tolerances on intricate contours. With a reliable indexable design, you can rotate to fresh edges easily, maintaining consistent performance over time.

ISO Code XDHW 060210 PH6103
Insert Size and Shape XD0602
Product Line LINEPRO 40095
Grade PH6103
Hand Neutral
Cutting Edge Count (CEDC) 1
Operation Type (CTPT) Profile Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) X
Inscribed Circle Diameter (IC) 6.5
Insert Thickness (S) 2.38
Corner Radius (RE) 1
Cutting Edge Effective Length (LE) 6.2
Fixing Hole Diameter (D1) 2.9
