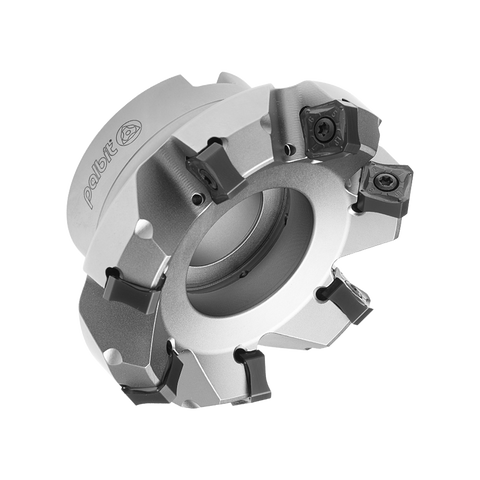

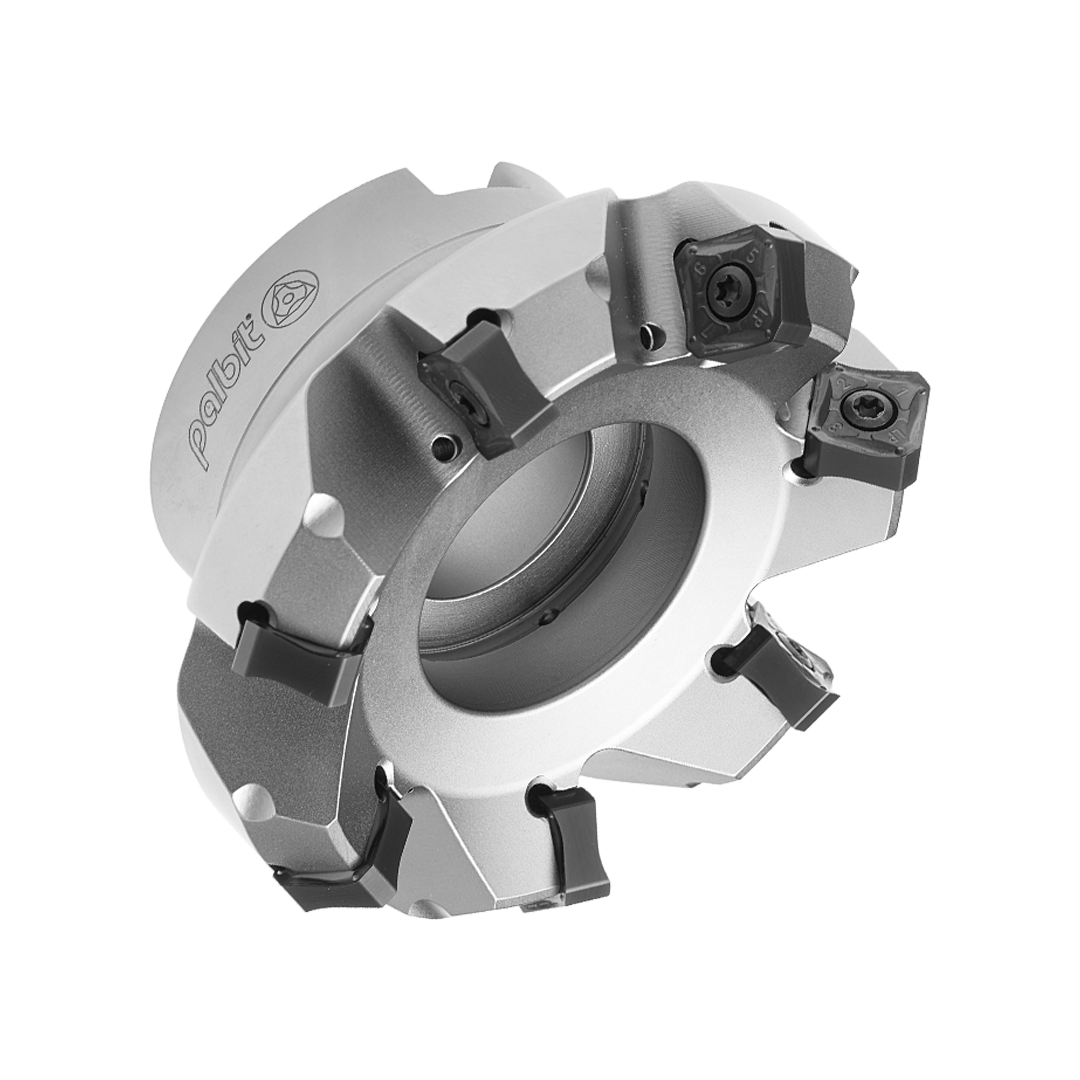

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 100mm Cutter Diameter - 181048500
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 8 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
Learn more about Klarna
The Palbit Arbor Mounting Holder securely fits SN1206 and ON0505 inserts for versatile grooving and parting applications. Optimized for 100 mm cutter diameter configurations, it delivers solid rigidity and precise cutting performance across demanding workloads.
- Secure insert retention: The holder clamps SN1206 and ON0505 inserts firmly in place, reducing movement and chatter for consistent, repeatable cuts.
- Rigid, precise grooving and parting: Engineered for high rigidity, it maintains accurate depths and smooth cutting action across tough materials and long runs.
- Durable, easy-to-use design: Robust construction and straightforward mounting mean fewer tool changes and longer service life in demanding production settings.
Using the Palbit Arbor Mounting Holder helps you deliver reliable, repeatable results from setup to finish, improving throughput and reducing downtime. With stable insert retention and extended tool life, you can maintain tight tolerances, achieve cleaner grooves, and maintain efficient, consistent performance across CNC operations.
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 8 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 100 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 107.6 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 90945 - Arbor Mounting
View full collection →You are viewing PAL-181048500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181067200 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £353.45 | 5 days | |
| PAL-181048400 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £261.90 | 5 days | |
| PAL-181067100 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £324.48 | 5 days | |
| PAL-181048300 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £229.03 | 5 days | |
| PAL-181067000 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 50 | 40 | £229.03 | 5 days | |
| PAL-181048200 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 50 | 40 | £183.07 | 5 days | |
| PAL-181064700 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 250 | 63 | £1,537.36 | 5 days | |
| PAL-181052800 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 200 | 63 | £1,038.69 | 5 days | |
| PAL-181048700 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 160 | 63 | £540.39 | 5 days | |
| PAL-181048600 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 125 | 63 | £353.45 | 5 days | |
| PAL-181067300 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £540.39 | 5 days | |
| PAL-181048500 Viewing | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £324.48 | 5 days |
