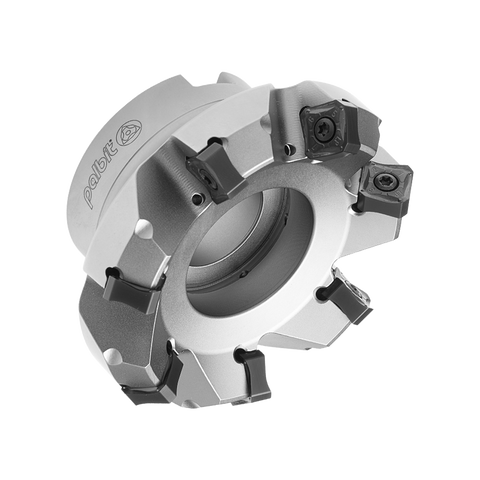

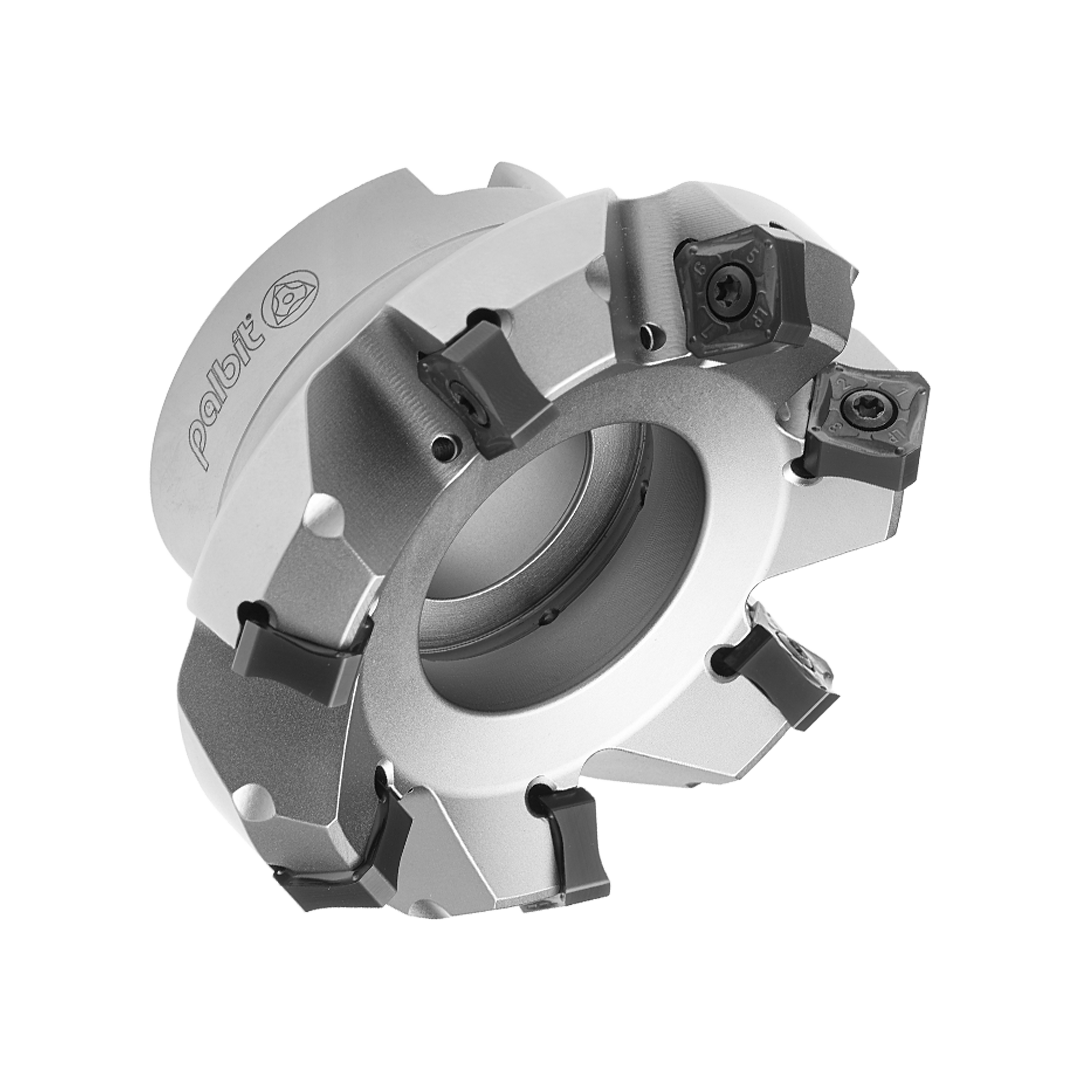

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 200mm Cutter Diameter - 181052800

PAL-181052800

Availability: 5 days Estimated lead time, subject to availability

Designed for versatile grooving and parting applications, Palbit Arbor Mounting Holders securely fit SN1206 and ON0505 inserts to deliver excellent rigidity and precise cutting performance. Thes... Read more

Specification Value
Insert Size & Shape SN1206 ON0505
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 14
Connection Diameter (DCONMS) 60
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 172
Tool Cutting Edge Angle (KAPR) 45
Cutting Diameter (DC) 200
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 207.6
Functional Length (LF) 63
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -9

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Designed for versatile grooving and parting applications, Palbit Arbor Mounting Holders securely fit SN1206 and ON0505 inserts to deliver excellent rigidity and precise cutting performance. These holders ensure stable insert retention and extended tool life, making them ideal for CNC engineers and machinists focused on accuracy and efficiency in demanding production environments.
