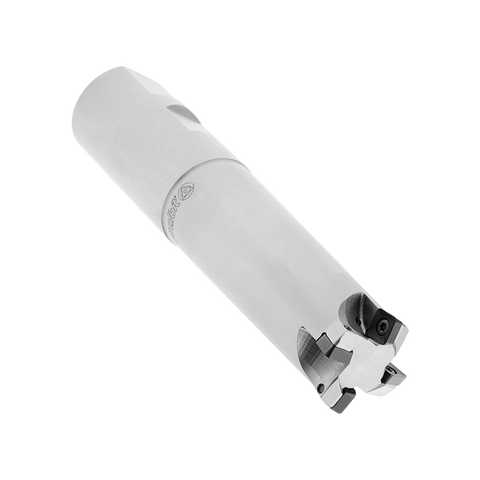

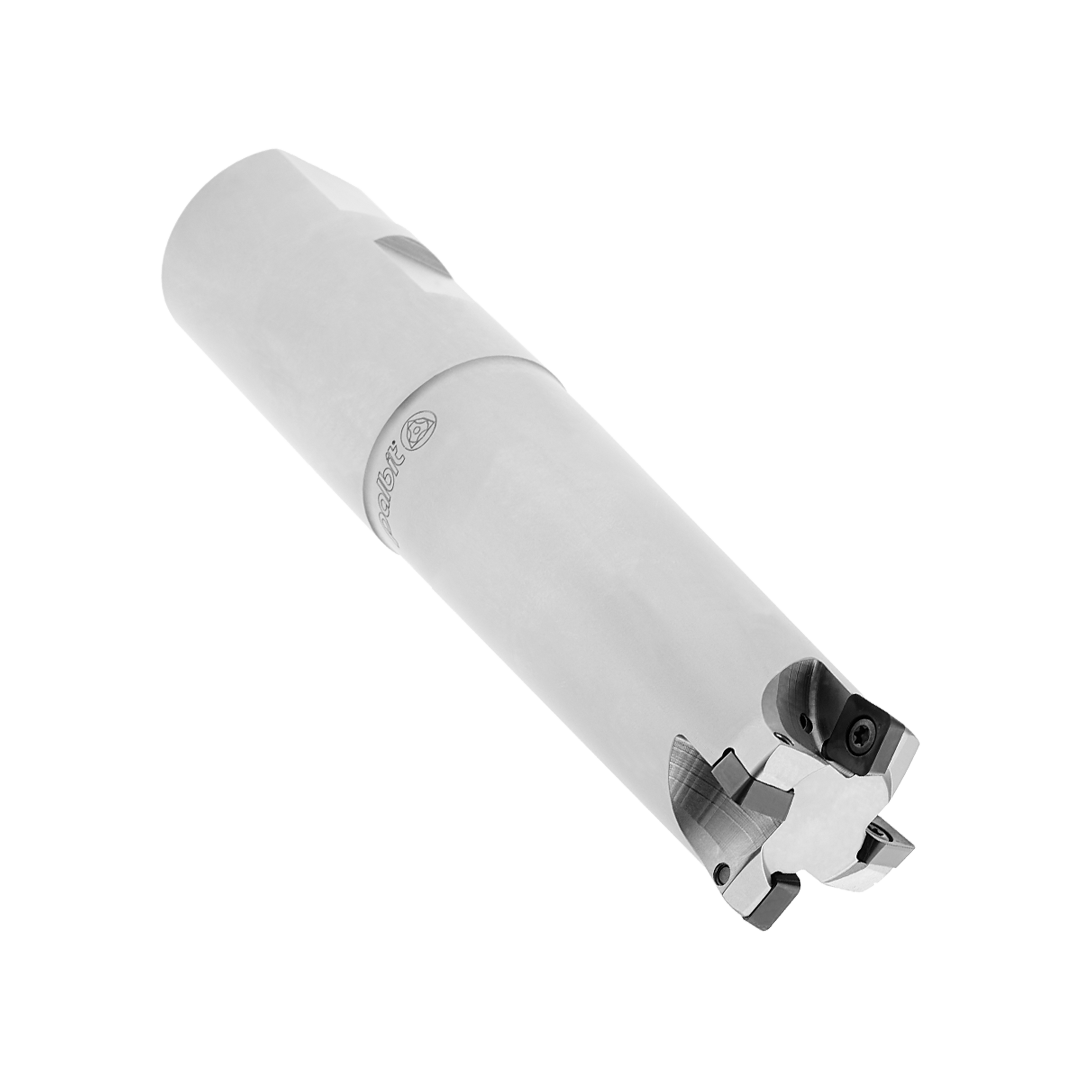

Palbit Weldon Shank Holder - For SO0803 Inserts - 25mm Cutter Diameter - 181076400
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 10 |
Learn more about Klarna
Introducing the Palbit Weldon Shank Holder for SO0803 inserts—a precision toolholder designed for fine grooving and parting in high-accuracy CNC work. It delivers secure clamping and exceptional rigidity to minimize runout and vibration during cutting.
- For SO0803 Inserts: Specifically designed to securely hold Palbit SO0803 inserts for reliable seating and alignment.
- Shank Type: Weldon shank holder provides robust, rigid support during demanding cuts.
- Cutting Diameter: 25 mm cutter diameter tailored for fine grooving and parting operations.
- Secure Clamping: Proven clamping mechanism keeps the insert firmly in place for consistent cuts.
- Rigidity: Exceptional rigidity minimizes tool deflection and chatter.
- Precision Cutting Performance: Delivers precise, repeatable cuts with tight tolerances.
- Extended Tool Life: Reduced vibration and stable engagement extend tool life in tough productions.
- Product Code: 181076400
This holder is trusted by engineers and machinists for consistent results and superior surface finishes in demanding production environments. Its optimized design supports high-accuracy CNC machining, helping you achieve clean grooves, smooth parting passes, and longer intervals between tool changes.
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 10 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 140 |
| Usable Length (LU) | 80 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06410 - Weldon Shank
View full collection →You are viewing PAL-181076400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181081300 | SO0803 | HI Feed | Weldon Shank | 32 | 200 | £173.86 | 5 days | |
| PAL-181076500 | SO0803 | HI Feed | Weldon Shank | 32 | 150 | £152.64 | 5 days | |
| PAL-181081100 | SO0803 | HI Feed | Weldon Shank | 25 | 200 | £152.64 | 5 days | |
| PAL-181076400 Viewing | SO0803 | HI Feed | Weldon Shank | 25 | 140 | £130.84 | 5 days | |
| PAL-181080900 | SO0803 | HI Feed | Weldon Shank | 20 | 190 | £139.35 | 5 days | |
| PAL-181076300 | SO0803 | HI Feed | Weldon Shank | 20 | 130 | £117.77 | 5 days |
