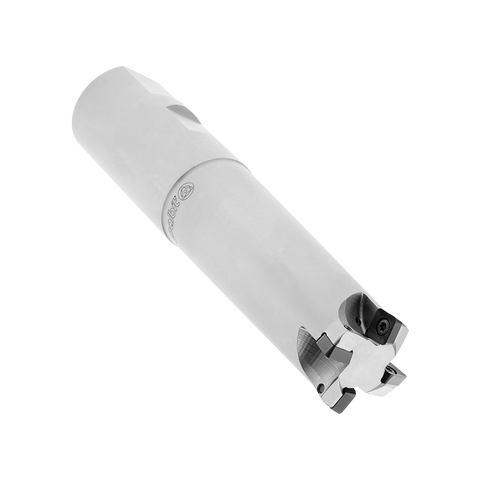

Palbit Weldon Shank Holder - For SO0803 Inserts - 32mm Cutter Diameter - 181076500
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 10 |
Learn more about Klarna
Palbit Weldon Shank Holder for SO0803 inserts delivers secure clamping and exceptional rigidity, engineered for precise cutting in fine grooving and parting applications. Compatible with a 32 mm cutter diameter, it supports high-accuracy CNC machining in demanding production environments.
- Compatibility: Designed to hold Palbit SO0803 inserts with reliable alignment.
- Shank Type: Weldon shank design for secure seating and stable performance.
- Diameter Support: 32 mm cutter diameter compatibility for consistent tooling setup.
- Optimized Operations: Specially tuned for fine grooving and parting tasks.
- Clamping & Rigidity: Secure clamping minimizes movement and enhances rigidity during cuts.
- Precision Performance: Delivers accurate cutting, contributing to cleaner finishes and tighter tolerances.
- Durability: Built to extend tool life in demanding production environments.
By providing secure clamping and exceptional rigidity, this holder minimizes deflection and vibration, enabling consistent depth control and repeatable results across multiple passes. Expect improved surface finishes, tighter tolerances, and longer-lasting tooling in high-precision CNC operations—especially during fine grooving and parting tasks.
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 10 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 150 |
| Usable Length (LU) | 90 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06410 - Weldon Shank
View full collection →You are viewing PAL-181076500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181081300 | SO0803 | HI Feed | Weldon Shank | 32 | 200 | £173.86 | 5 days | |
| PAL-181076500 Viewing | SO0803 | HI Feed | Weldon Shank | 32 | 150 | £152.64 | 5 days | |
| PAL-181081100 | SO0803 | HI Feed | Weldon Shank | 25 | 200 | £152.64 | 5 days | |
| PAL-181076400 | SO0803 | HI Feed | Weldon Shank | 25 | 140 | £130.84 | 5 days | |
| PAL-181080900 | SO0803 | HI Feed | Weldon Shank | 20 | 190 | £139.35 | 5 days | |
| PAL-181076300 | SO0803 | HI Feed | Weldon Shank | 20 | 130 | £117.77 | 5 days |
