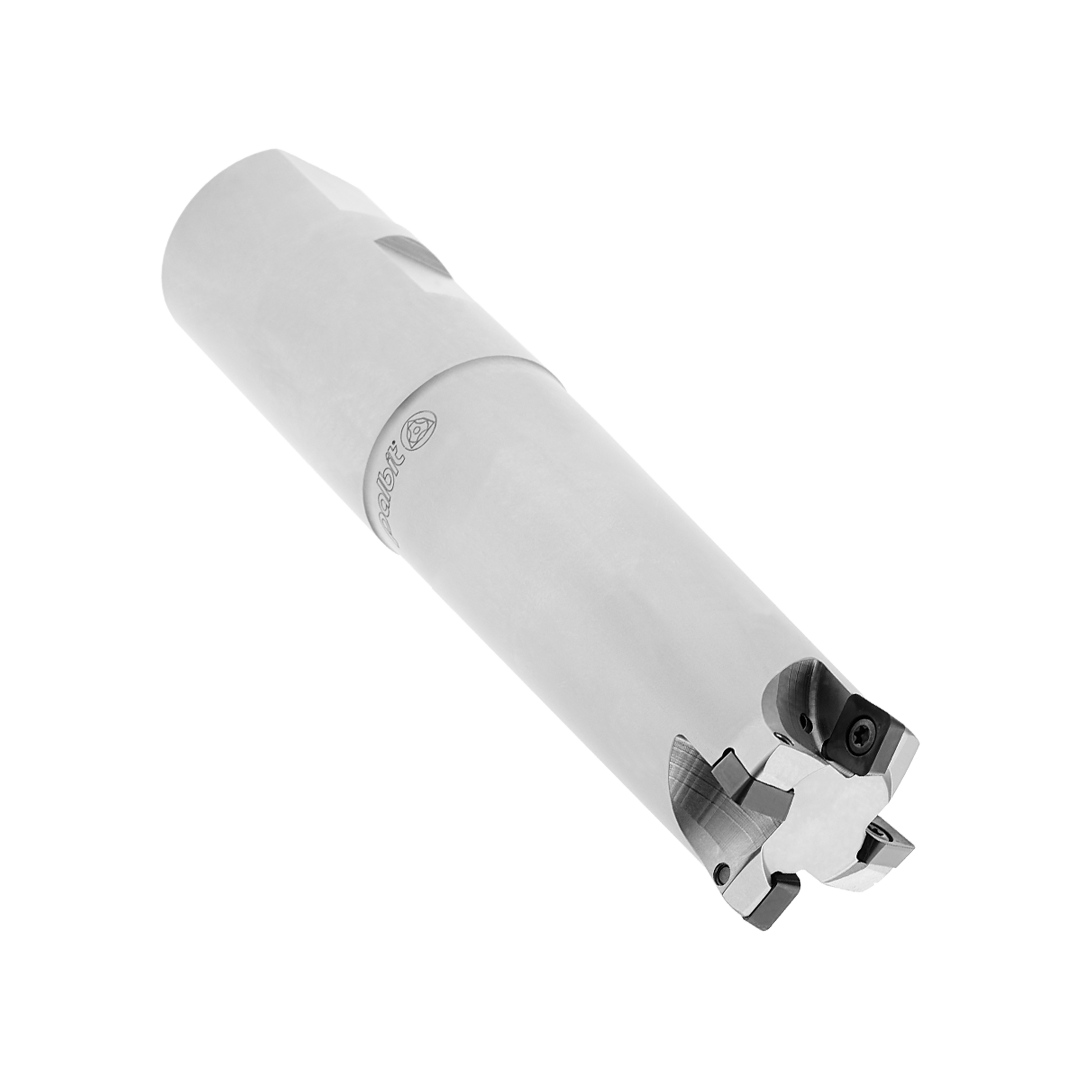

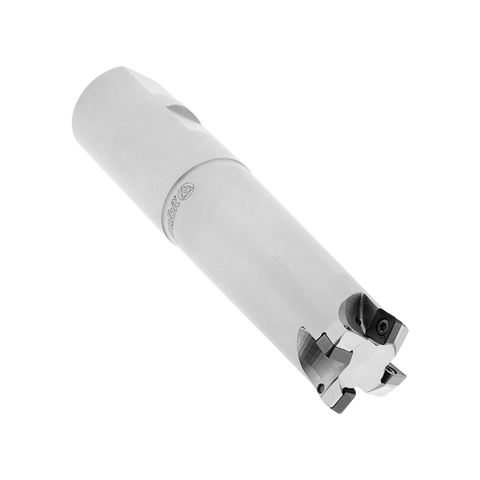

Palbit Weldon Shank Holder - For SO0803 Inserts - 20mm Cutter Diameter - 181080900
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 10 |
Learn more about Klarna
Optimised for fine grooving and parting operations, the Palbit Weldon Shank Holder for SO0803 inserts delivers secure clamping and exceptional rigidity. It enables precise cutting performance and helps minimize vibration, supporting consistent results in high-accuracy CNC machining.
- Compatibility: Designed for Palbit SO0803 inserts to ensure a reliable fit and performance.
- Stock Number: 181080900
- Diameter: 20mm cutter diameter for compact, precise engagements.
- Clamping & Rigidity: Secure clamping with high rigidity to minimize deflection during cuts.
- Vibration Reduction: Engineered to reduce chatter, promoting smoother cutting and longer tool life.
- Applications: Optimised for fine grooving and parting in high-accuracy CNC tasks.
These attributes translate to extended tool life, tighter tolerances, and superior surface finishes on demanding parts. Rely on the holder for repeatable performance, reduced downtime, and consistent results across busy production environments.
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 10 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 190 |
| Usable Length (LU) | 110 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06410 - Weldon Shank
View full collection →You are viewing PAL-181080900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181081300 | SO0803 | HI Feed | Weldon Shank | 32 | 200 | £173.86 | 5 days | |
| PAL-181076500 | SO0803 | HI Feed | Weldon Shank | 32 | 150 | £152.64 | 5 days | |
| PAL-181081100 | SO0803 | HI Feed | Weldon Shank | 25 | 200 | £152.64 | 5 days | |
| PAL-181076400 | SO0803 | HI Feed | Weldon Shank | 25 | 140 | £130.84 | 5 days | |
| PAL-181080900 Viewing | SO0803 | HI Feed | Weldon Shank | 20 | 190 | £139.35 | 5 days | |
| PAL-181076300 | SO0803 | HI Feed | Weldon Shank | 20 | 130 | £117.77 | 5 days |
