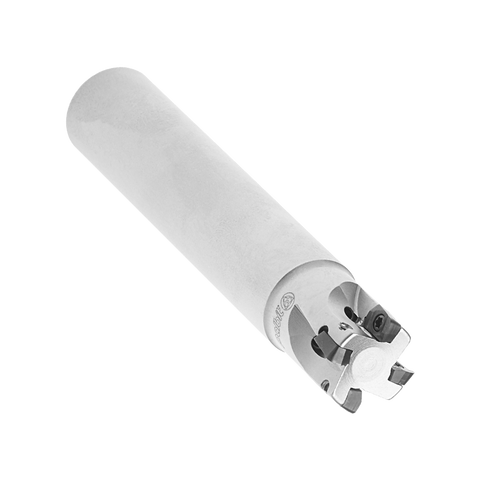

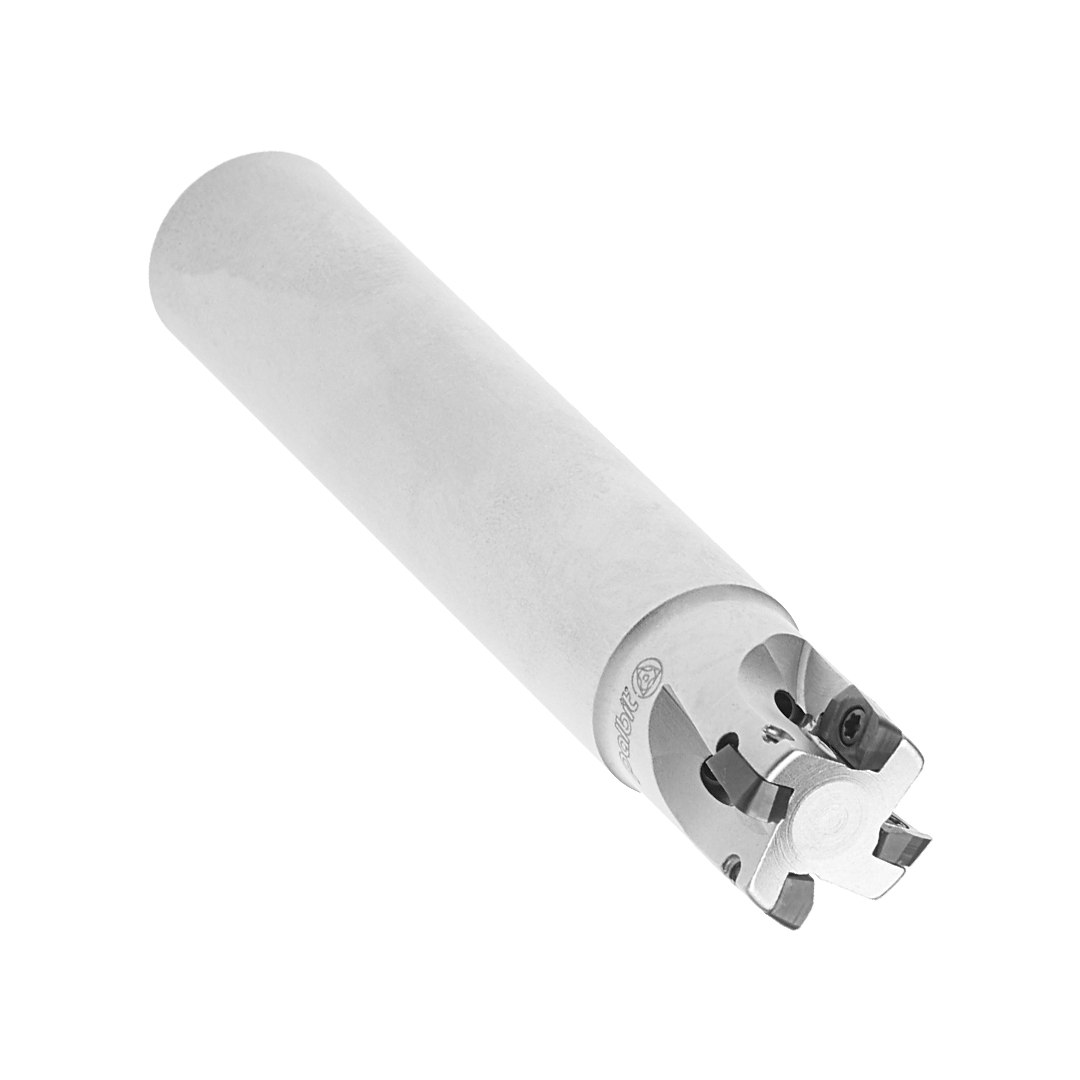

Palbit Cylindrical Shank Holder - For XP0602 Inserts - 12mm Cutter Diameter - 181087200
| Insert Size & Shape | XP0602 |
| Depth of Cut Maximum (APMX) | 4 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 12 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 0 |
Learn more about Klarna
Designed for precision grooving and profiling, the Palbit Cylindrical Shank Holder delivers rigid support and secure insert retention for XP0602 inserts. Perfect for tight-tolerance CNC applications, it minimizes vibration and promotes consistent cutting performance.
- Inserts compatibility: Specifically designed for XP0602 inserts
- Cutting diameter: 12 mm
- Rigidity: High rigidity to stabilize the cutting process
- Retention: Secure insert retention to reduce movement during operation
- Cutting performance: Smooth cutting action with minimized chatter
- Application: Optimized for precision grooving and profiling in demanding environments
By delivering stable, vibration-resistant performance, this holder helps improve surface finish, extends tool life, and provides a reliable solution for engineers and machinists working in challenging, tight-tolerance production settings.
| Insert Size & Shape | XP0602 |
| Depth of Cut Maximum (APMX) | 4 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 12 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 0 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 12 |
| Torque (TQ) | 0.6 |
| Functional Length (LF) | 80 |
| Axial Rake Angel (GAMP) | 4 |
| Rdial Rake Angle (GAMF) | -10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 20090 - Cylindrical Shank
View full collection →You are viewing PAL-181087200. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181087200 Viewing | XP0602 | Shouldering Cutters | Cylindrical Shank | 12 | 80 | £115.72 | 5 days | |
| PAL-181097200 | XP0602 | Shouldering Cutters | Cylindrical Shank | 21 | 90 | £191.00 | 5 days | |
| PAL-181097100 | XP0602 | Shouldering Cutters | Cylindrical Shank | 17 | 90 | £187.15 | 5 days | |
| PAL-181087400 | XP0602 | Shouldering Cutters | Cylindrical Shank | 16 | 90 | £163.33 | In Stock | |
| PAL-181087300 | XP0602 | Shouldering Cutters | Cylindrical Shank | 16 | 90 | £139.35 | In Stock | |
| PAL-181109900 | XP0602 | Shouldering Cutters | Cylindrical Shank | 12 | 120 | £135.46 | In Stock | |
| PAL-181108300 | XP0602 | Shouldering Cutters | Cylindrical Shank | 10 | 100 | £115.72 | In Stock | |
| PAL-181087100 | XP0602 | Shouldering Cutters | Cylindrical Shank | 10 | 55 | £111.47 | In Stock |
