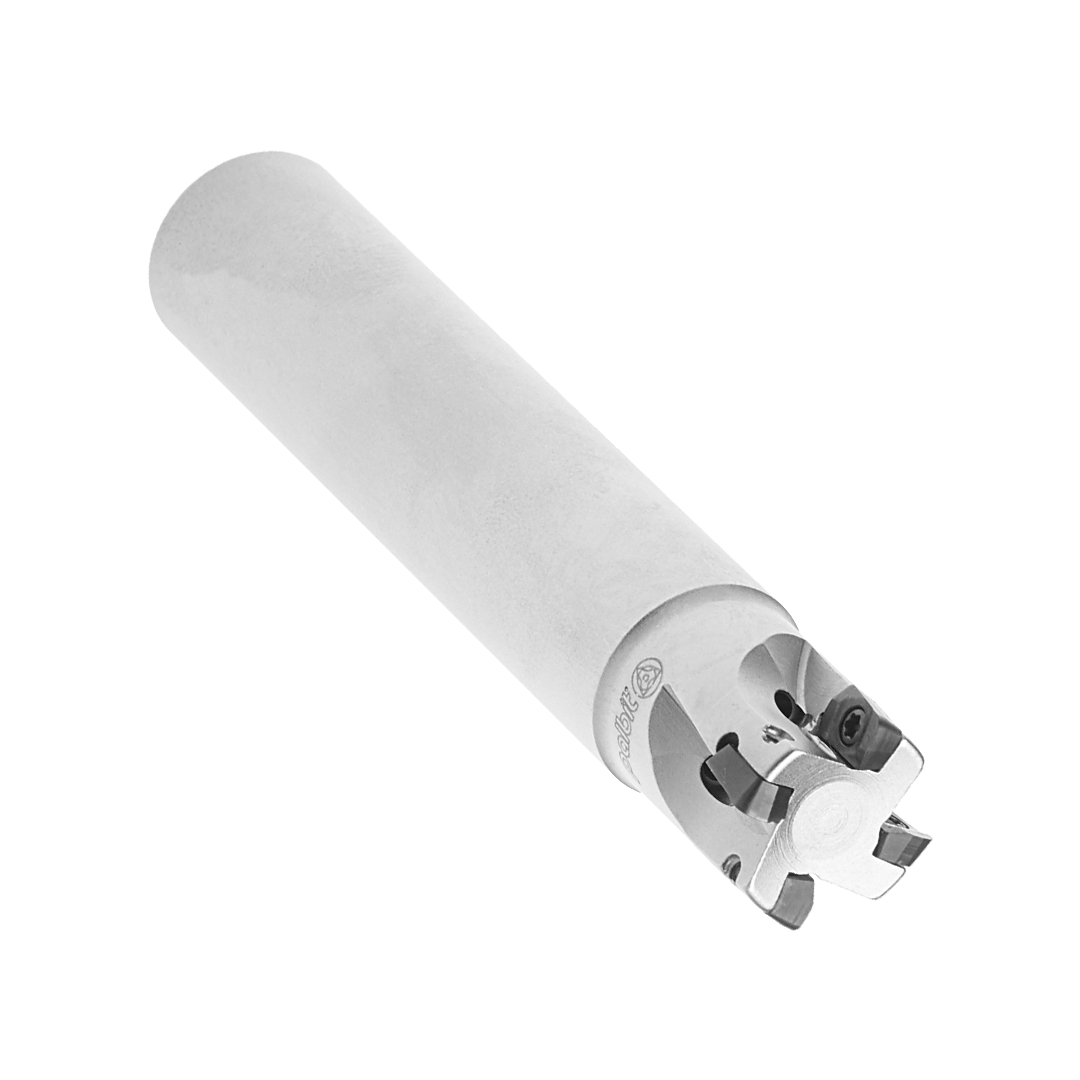

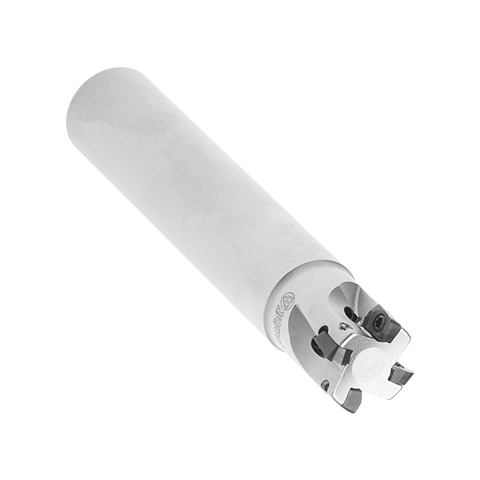

Palbit Cylindrical Shank Holder - For XP0602 Inserts - 10mm Cutter Diameter - 181108300
| Insert Size & Shape | XP0602 |
| Depth of Cut Maximum (APMX) | 4 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 10 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 0 |
Learn more about Klarna
Palbit Cylindrical Shank Holder is engineered for engineers and machinists performing high-precision CNC grooving and profiling with XP0602 inserts. It delivers rigidity, secure insert retention, and smooth cutting performance to support tight-tolerance production.
- Cutter Diameter: 10 mm
- Insert Compatibility: XP0602 inserts
- Shank Design: Cylindrical shank holder for precise alignment
- Rigidity: Excellent rigidity for stable cutting
- Insert Retention: Secure retention minimizes insert movement during operation
- Cutting Performance: Smooth cutting action reduces vibration and chatter
- Part Number: 181108300
- Applications: Ideal for high-precision CNC grooving and profiling in tight-tolerance environments
By securely locking XP0602 inserts, this holder minimizes tool deflection and vibration, helping achieve consistently smooth surface finishes on challenging materials. The robust cylindrical shank and precision interface improve runout control, reducing chatter and extending tool life in demanding production runs. Designed for reliability in tight-tolerance environments, it supports repeatable, high-precision machining across CNC grooving and profiling tasks.
| Insert Size & Shape | XP0602 |
| Depth of Cut Maximum (APMX) | 4 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 10 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 0 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 10 |
| Torque (TQ) | 0.6 |
| Functional Length (LF) | 100 |
| Axial Rake Angel (GAMP) | 4 |
| Rdial Rake Angle (GAMF) | -10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 20090 - Cylindrical Shank
View full collection →You are viewing PAL-181108300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181087200 | XP0602 | Shouldering Cutters | Cylindrical Shank | 12 | 80 | £115.72 | 5 days | |
| PAL-181097200 | XP0602 | Shouldering Cutters | Cylindrical Shank | 21 | 90 | £191.00 | 5 days | |
| PAL-181097100 | XP0602 | Shouldering Cutters | Cylindrical Shank | 17 | 90 | £187.15 | 5 days | |
| PAL-181087400 | XP0602 | Shouldering Cutters | Cylindrical Shank | 16 | 90 | £163.33 | In Stock | |
| PAL-181087300 | XP0602 | Shouldering Cutters | Cylindrical Shank | 16 | 90 | £139.35 | In Stock | |
| PAL-181109900 | XP0602 | Shouldering Cutters | Cylindrical Shank | 12 | 120 | £135.46 | In Stock | |
| PAL-181108300 Viewing | XP0602 | Shouldering Cutters | Cylindrical Shank | 10 | 100 | £115.72 | In Stock | |
| PAL-181087100 | XP0602 | Shouldering Cutters | Cylindrical Shank | 10 | 55 | £111.47 | In Stock |
