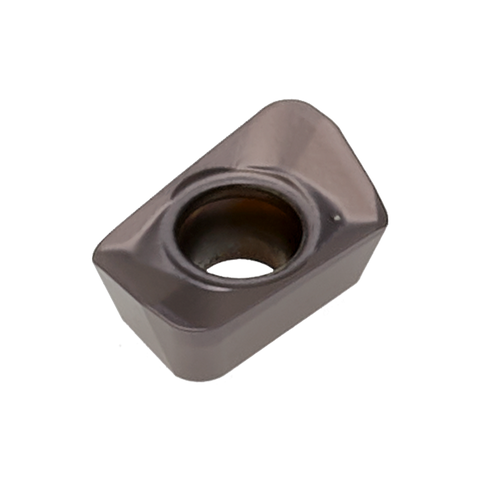

Palbit Indexable Milling Insert - for Shoulder Milling - XPET 060204 PDER-LP PHH930
SKU:PAL-1112002X9
Palbit XPET indexable milling insert is engineered for high-precision shoulder milling, delivering accurate 90° shoulders and superb surface finishes even in demanding production environments. Des...
Read more ↓
Material Compatibility
M
S
Specification
View all specifications ↓
| ISO Code | XPET 060204 PDER-LP PHH930 |
| Insert Size and Shape | XP0602 |
| Product Line | LINEPRO 20090 |
| Grade | PHH930 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
£12.31
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Palbit XPET indexable milling insert is engineered for high-precision shoulder milling, delivering accurate 90° shoulders and superb surface finishes even in demanding production environments. Designed for shops that value reliability and consistent results, it helps you achieve tight tolerances with fewer finishing passes.
- Model / Code: XPET 060204 PDER-LP PHH930
- Material: Robust carbide construction for durability and wear resistance
- Function: Indexable milling insert optimized for shoulder milling applications
- Geometry: Optimized geometry to maximize edge stability and consistent cutting performance
- Finish: Delivers superior surface finishes on machined shoulders
With its carbide robustness and carefully engineered geometry, this insert maintains stable, precise cuts that help you achieve tight shoulder tolerances, reduce finishing passes, and perform reliably in demanding production environments.
| ISO Code | XPET 060204 PDER-LP PHH930 |
| Insert Size and Shape | XP0602 |
| Product Line | LINEPRO 20090 |
| Grade | PHH930 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | E |
| Insert Shape Code (SC) | X |
| Insert Thickness (S) | 2.4 |
| Corner Radius (RE) | 0.4 |
| Cutting Edge Effective Length (LE) | 5.3 |
| Insert Length (INSL) | 0 |
| Fixing Hole Diameter (D1) | 1.92 |
| Chip Breaker (CBMD) | LP |
| Wiper Edge Length (BS) | 0.8 |
