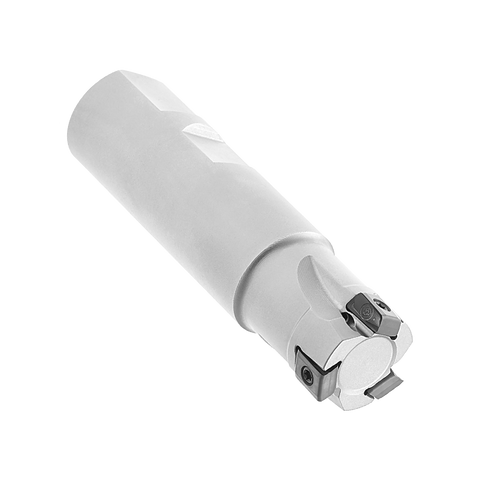

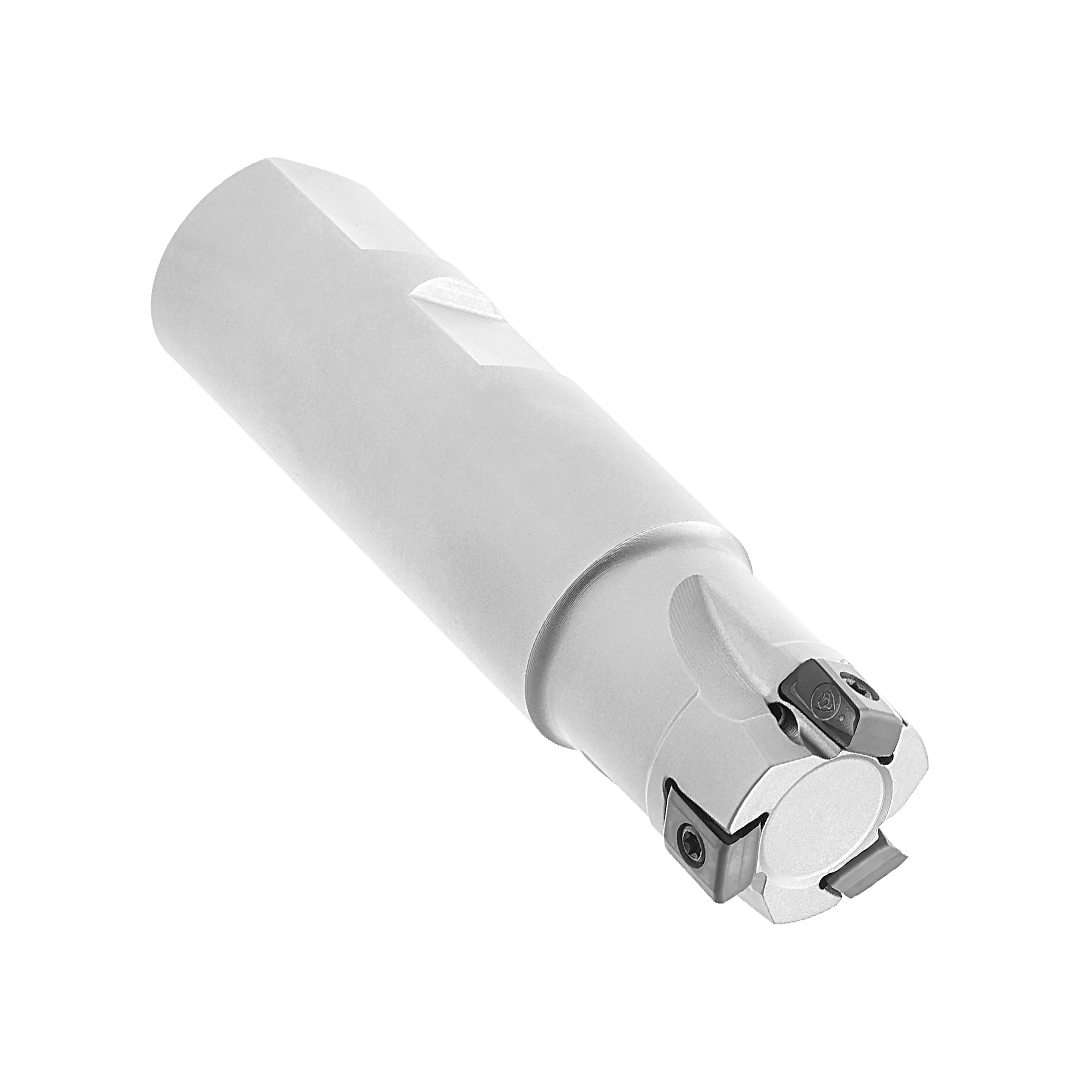

Palbit Weldon Shank Holder - For LN0904 Inserts - 16mm Cutter Diameter - 181109400
| Insert Size & Shape | LN0904 |
| Depth of Cut Maximum (APMX) | 7 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Engineered for high-precision CNC grooving and parting, the Palbit Weldon Shank Holder is built to secure LN0904 inserts with a 16 mm cutter diameter, delivering stable, accurate cuts every time.
- LN0904 Insertion Compatibility: Precisely engineered to accept LN0904 inserts for reliable seating and alignment.
- Secure Clamping: Robust weldon shank design provides firm, repeatable grip to minimize slip during heavy cuts.
- High Rigidity & Vibration Control: Optimized geometry reduces chatter and deflection, enhancing surface quality.
- 16 mm Cutter Diameter Support: Designed to accommodate a 16 mm cutter diameter for broader grooving and parting capabilities.
- Consistency in Performance: Delivers uniform cutting performance across cycles, preserving tolerance and finish.
- Tool Life Extension: Stable engagement and reduced vibration help extend insert and holder life in demanding production environments.
Designed for engineers and machinists who demand reliable results and superior surface finishes, this Weldon Shank Holder elevates repeatability and efficiency in demanding production settings. Its combination of secure clamping, rigidity, and compatible tooling makes it a dependable choice for precision grooving and parting tasks on CNC machines.
| Insert Size & Shape | LN0904 |
| Depth of Cut Maximum (APMX) | 7 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 16 |
| Functional Length (LF) | 90 |
| Usable Length (LU) | 25 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -30 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TGPLUS 90090 - Weldon Shank
View full collection →You are viewing PAL-181109400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181144100 | LN0904 | Shouldering Cutters | Weldon Shank | 32 | 110 | £246.02 | 5 days | |
| PAL-181109500 | LN0904 | Shouldering Cutters | Weldon Shank | 25 | 95 | £190.64 | 5 days | |
| PAL-181109400 Viewing | LN0904 | Shouldering Cutters | Weldon Shank | 16 | 90 | £149.50 | 5 days |
