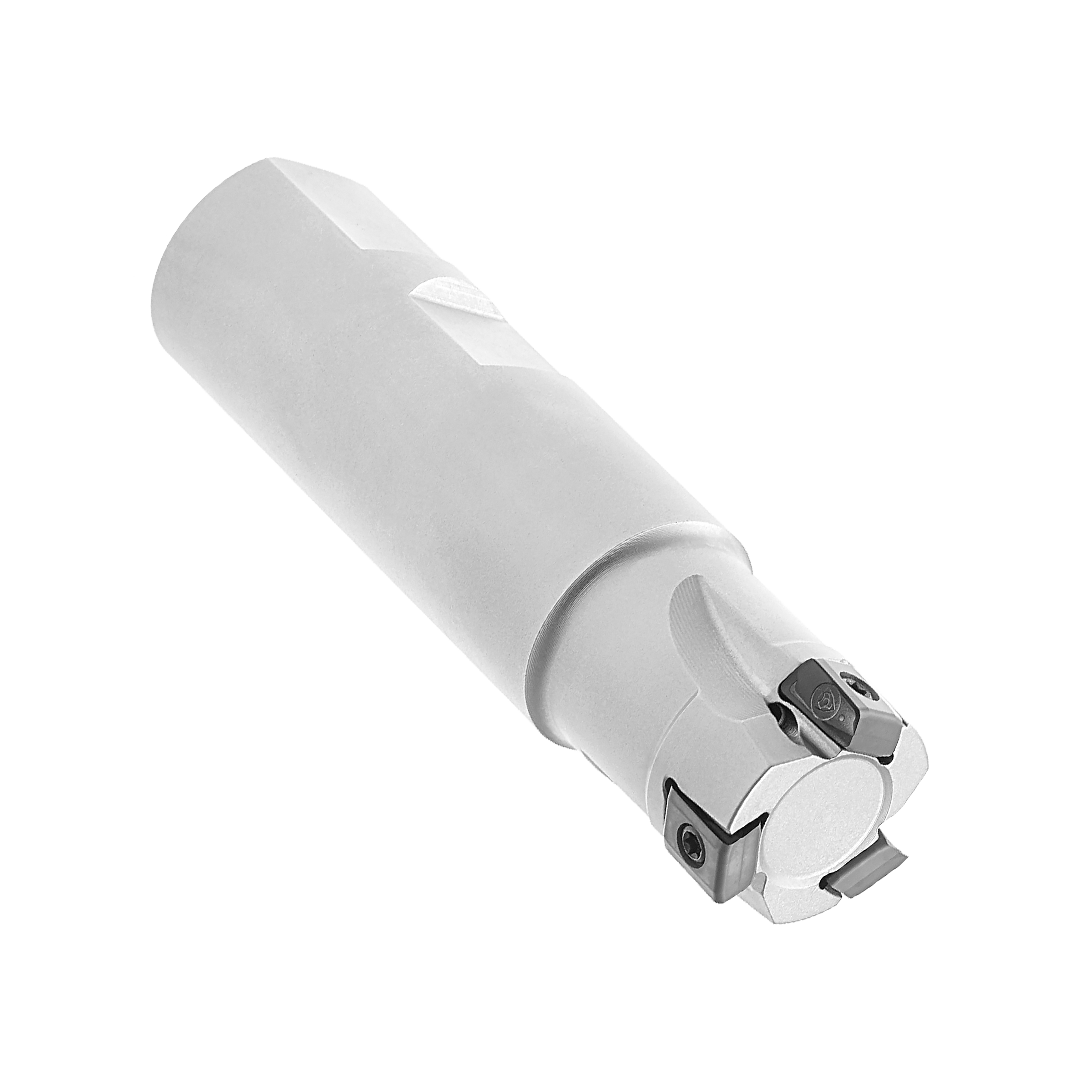

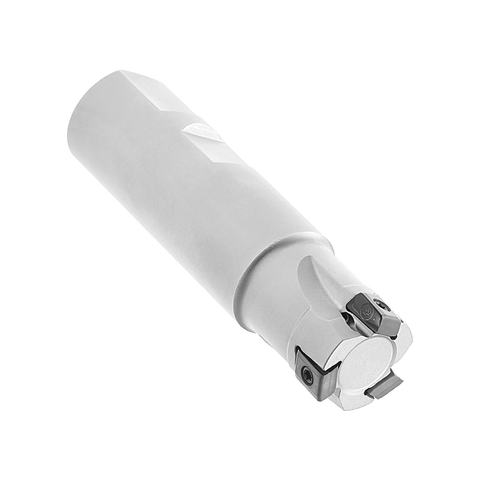

Palbit Weldon Shank Holder - For LN0904 Inserts - 32mm Cutter Diameter - 181144100
| Insert Size & Shape | LN0904 |
| Depth of Cut Maximum (APMX) | 7 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Weldon Shank Holder for LN0904 inserts, designed for a 32 mm cutter diameter, delivers secure clamping and high rigidity for precision CNC grooving and parting. It provides repeatable performance and long-term reliability in demanding production environments.
- Compatibility: Optimised seating for LN0904 inserts ensures precise alignment.
- 32 mm cutter diameter: Specifically designed to accommodate a 32 mm cutter diameter for consistent geometry.
- Weldon shank design: Weldon-style clamping provides uniform contact and stability under load.
- Secure clamping: Strong, reliable grip keeps inserts in place during heavy cutting.
- Rigidity and vibration control: Excellent rigidity reduces chatter, improving surface finish.
- Consistent performance: Delivers repeatable cutting performance across production cycles.
- Extended tool life: Reduced vibration and stable seating contribute to longer tool life.
By combining secure clamping, high rigidity, and reduced vibration, this holder helps achieve tighter tolerances and smoother surface finishes while minimizing downtime due to tool wear. It’s a dependable choice for engineers and machinists who demand reliable results and superior finishes in challenging CNC environments, particularly during precision grooving and parting operations.
| Insert Size & Shape | LN0904 |
| Depth of Cut Maximum (APMX) | 7 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 32 |
| Functional Length (LF) | 110 |
| Usable Length (LU) | 30 |
| Axial Rake Angel (GAMP) | -4 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TGPLUS 90090 - Weldon Shank
View full collection →You are viewing PAL-181144100. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181144100 Viewing | LN0904 | Shouldering Cutters | Weldon Shank | 32 | 110 | £246.02 | 5 days | |
| PAL-181109500 | LN0904 | Shouldering Cutters | Weldon Shank | 25 | 95 | £190.64 | 5 days | |
| PAL-181109400 | LN0904 | Shouldering Cutters | Weldon Shank | 16 | 90 | £149.50 | 5 days |
