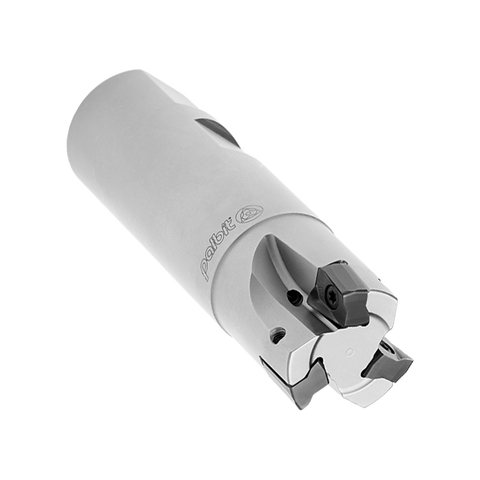

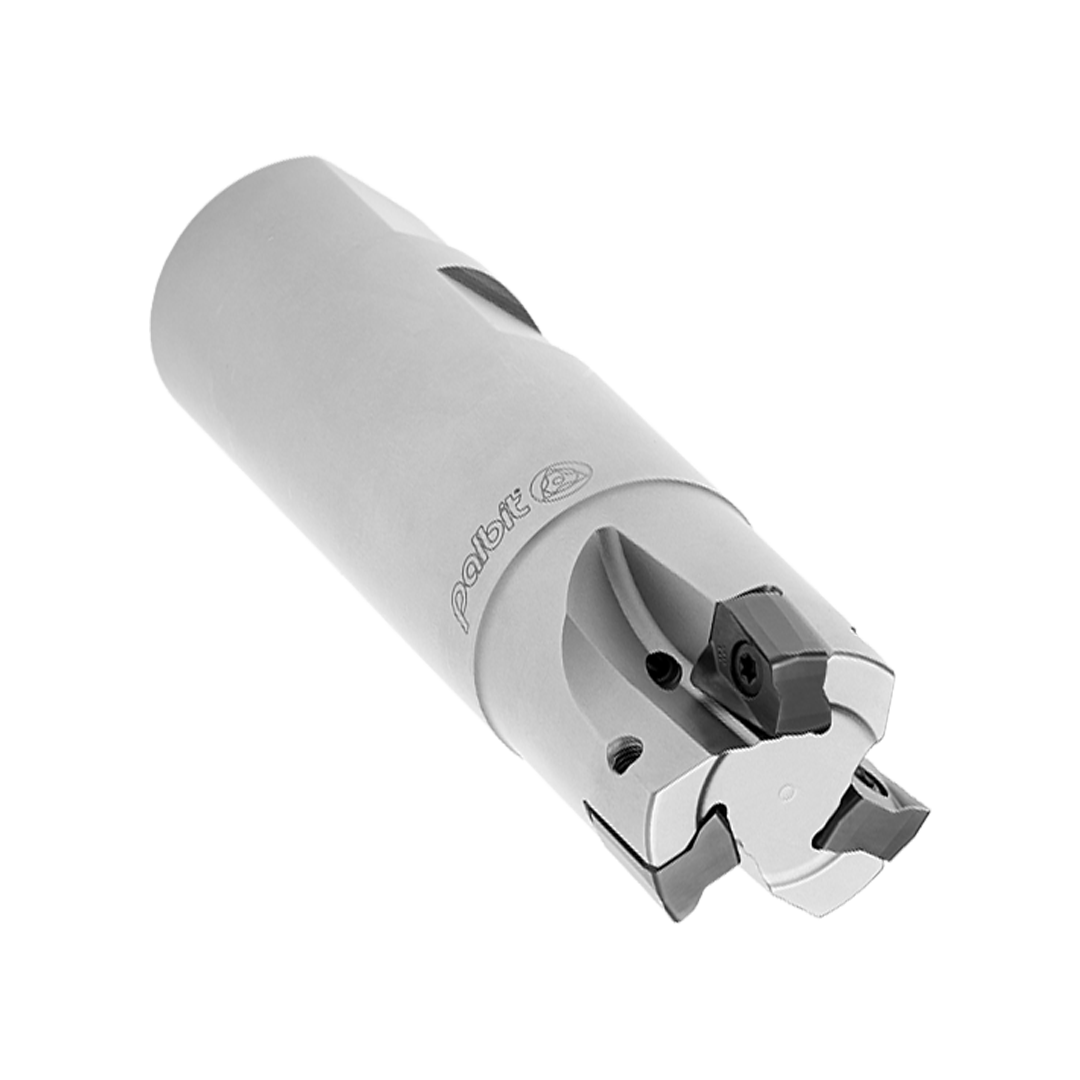

Palbit Weldon Shank Holder - For AN1206 Inserts - 25mm Cutter Diameter - 181116000
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Engineered for precision grooving and parting, the Palbit Weldon Shank Holder is designed to securely house AN1206 inserts for CNC machining. With its Weldon-style shank and a 25 mm cutter diameter, it delivers rigid support and reliable insert clamping for stable, repeatable performance.
- Shank style: Weldon shank design for secure seating and stable cutting.
- Insert compatibility: Specifically compatible with AN1206 inserts for dependable interchangeability.
- Cutter diameter: 25 mm diameter to suit common grooving and parting applications.
- Rigidity and clamping: Superior rigidity and secure insert clamping to minimize movement during cutting.
- Application: Optimized for precision grooving and parting in CNC environments.
- Performance: Delivers consistent cutting performance and supports extended tool life in demanding production settings.
By delivering rigid support and secure insert clamping, this holder helps maintain stability during cutting, enabling consistent surface finishes and reliable results. Its dependable performance supports higher productivity, reduces rework, and contributes to longer tool life in demanding production environments.
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 2 |
| Functional Length (LF) | 110 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -21 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17590 - Weldon Shank
View full collection →You are viewing PAL-181116000. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181116100 | AN1206 | Shouldering Cutters | Weldon Shank | 40 | 150 | £211.13 | 5 days | |
| PAL-181120600 | AN1206 | Shouldering Cutters | Weldon Shank | 32 | 150 | £179.38 | 5 days | |
| PAL-181116000 Viewing | AN1206 | Shouldering Cutters | Weldon Shank | 25 | 110 | £159.27 | 5 days |
