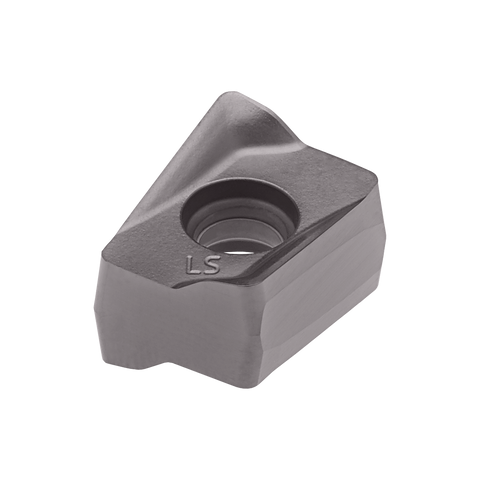

Palbit Indexable Milling Insert - for Shoulder Milling - ANHX 120608 PNER-LS PHP930
SKU:PAL-1112237P4
The Palbit ANHX indexable milling insert is designed for precise shoulder milling, delivering stable edge performance and a high-quality surface finish across challenging materials. Built with rob...
Read more ↓
Material Compatibility
P
K
Specification
View all specifications ↓
| ISO Code | ANHX 120608 PNER-LS PHP930 |
| Insert Size and Shape | AN1206 |
| Product Line | PLUS 17590 |
| Grade | PHP930 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
£15.95
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit ANHX indexable milling insert is designed for precise shoulder milling, delivering stable edge performance and a high-quality surface finish across challenging materials. Built with robust carbide and an optimized cutting geometry, it provides reliable performance and long tool life in demanding machining environments.
- Shoulder milling specialization: Precisely engineered for shoulder milling operations.
- Carbide construction: Robust carbide body built to withstand tough cutting conditions.
- Optimized cutting geometry: Tailored geometry to maximize material removal with smooth chip flow.
- Edge stability: Maintains a sharp, stable edge for consistent tolerances.
- Surface finish: Delivers a superior surface finish on shoulder faces.
- Grade designation: PNER-LS PHP930, part of Palbit’s performance family.
Benefits: This insert supports consistent shoulder milling results with reduced rework and extended tool life. The combination of carbide toughness and optimized geometry helps minimize chatter, maintain stable depths of cut, and improve overall productivity in demanding machining environments.
| ISO Code | ANHX 120608 PNER-LS PHP930 |
| Insert Size and Shape | AN1206 |
| Product Line | PLUS 17590 |
| Grade | PHP930 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | A |
| Insert Thickness (S) | 8.3 |
| Corner Radius (RE) | 0.8 |
| Insert Length (INSL) | 12 |
| Fixing Hole Diameter (D1) | 3.9 |
| Chip Breaker (CBMD) | LS |
| Wiper Edge Length (BS) | 9 |
