Palbit Indexable Milling Insert - for Shoulder Milling - ANHX 120608 PNSR-MP PHS740
SKU:PAL-1112238T9

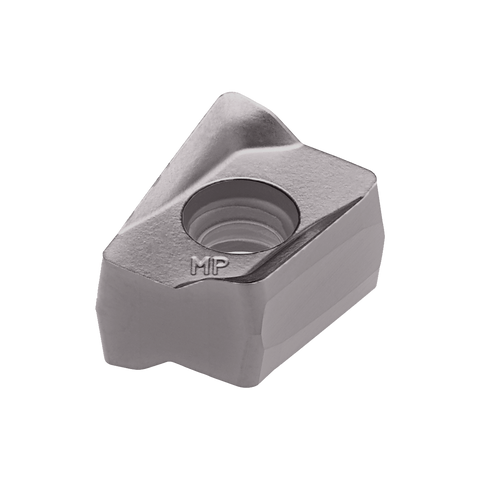

The Palbit ANHX indexable milling insert is designed for precise shoulder milling, delivering stable cutting edges and a high-quality surface finish across challenging workpieces.
Series: ANHX i...
Read more ↓
Material Compatibility
P
Specification
View all specifications ↓
| ISO Code | ANHX 120608 PNSR-MP PHS740 |
| Insert Size and Shape | AN1206 |
| Product Line | PLUS 17590 |
| Grade | PHS740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
£15.95
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit ANHX indexable milling insert is designed for precise shoulder milling, delivering stable cutting edges and a high-quality surface finish across challenging workpieces.
- Series: ANHX indexable milling insert for shoulder milling
- Material: Robust carbide construction for stiffness and wear resistance
- Geometry: Optimized cutting geometry engineered for shoulder milling applications
- Edge stability: Excellent edge stability to maintain consistent performance
- Surface finish: Produces a superior surface finish on shoulder milling passes
- Mounting: Central through-hole for secure seating and alignment
- Durability: Long tool life in demanding machining environments
With the Palbit ANHX insert, you can expect repeatable shoulder profiles, reliable performance, and extended tool life in tough machining conditions. Its carbide robustness and optimized geometry help maintain tight tolerances and smooth finishes, reducing downtime and boosting productivity on every job.
| ISO Code | ANHX 120608 PNSR-MP PHS740 |
| Insert Size and Shape | AN1206 |
| Product Line | PLUS 17590 |
| Grade | PHS740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | A |
| Insert Thickness (S) | 8.3 |
| Corner Radius (RE) | 0.8 |
| Insert Length (INSL) | 12 |
| Fixing Hole Diameter (D1) | 3.9 |
| Chip Breaker (CBMD) | MP |
| Wiper Edge Length (BS) | 9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Palbit ANHX Inserts
View full collection →You are viewing PAL-1112238T9. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1111596T1 | ANHX 160712 PNER-LP PHP920 | AN1607 | PLUS 18190 | A | 10.5 | £17.27 | 5 days | |
| PAL-1111596P4 | ANHX 160712 PNER-LP PHP930 | AN1607 | PLUS 18190 | A | 10.5 | £17.27 | 5 days | |
| PAL-1111598P4 | ANHX 160712 PNER-MP PHP930 | AN1607 | PLUS 18190 | A | 10.5 | £17.27 | 5 days | |
| PAL-1111519T1 | ANHX 160708 PNR-LP PHP920 | AN1607 | PLUS 18190 | A | 10.8 | £17.27 | 5 days | |
| PAL-1111598T1 | ANHX 160712 PNER-MP PHP920 | AN1607 | PLUS 18190 | A | 10.5 | £17.27 | 5 days | |
| PAL-1111595P4 | ANHX 160708 PNER-MP PHP930 | AN1607 | PLUS 18190 | A | 10.8 | £17.27 | 5 days | |
| PAL-1111595T1 | ANHX 160708 PNER-MP PHP920 | AN1607 | PLUS 18190 | A | 10.8 | £17.27 | 5 days | |
| PAL-1111519G1 | ANHX 160708 PNR-LP PH7910 | AN1607 | PLUS 18190 | A | 10.8 | £16.17 | 5 days | |
| PAL-1111595G1 | ANHX 160708 PNER-MP PH7910 | AN1607 | PLUS 18190 | A | 10.8 | £16.17 | 5 days | |
| PAL-1111519P4 | ANHX 160708 PNR-LP PHP930 | AN1607 | PLUS 18190 | A | 10.8 | £17.27 | 5 days | |
| PAL-1111595T9 | ANHX 160708 PNER-MP PHS740 | AN1607 | PLUS 18190 | A | 10.8 | £17.27 | 5 days | |
| PAL-1112474X9 | ANHX 120604 PNER-LS PHH930 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112430T1 | ANHX 120616 PNSR-MP PHP920 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112237P4 | ANHX 120608 PNER-LS PHP930 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112237G6 | ANHX 120608 PNER-LS PH7740 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112238L6 | ANHX 120608 PNSR-MP PH5320 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112430L6 | ANHX 120616 PNSR-MP PH5320 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112473L6 | ANHX 120604 PNSR-MP PH5320 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112238G6 | ANHX 120608 PNSR-MP PH7740 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112429G6 | ANHX 120616 PNER-LS PH7740 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112474G6 | ANHX 120604 PNER-LS PH7740 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112473G6 | ANHX 120604 PNSR-MP PH7740 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112430G6 | ANHX 120616 PNSR-MP PH7740 | AN1206 | PLUS 17590 | A | 8.3 | £14.70 | 5 days | |
| PAL-1112238T9 Viewing | ANHX 120608 PNSR-MP PHS740 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112237T1 | ANHX 120608 PNER-LS PHP920 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112237X9 | ANHX 120608 PNER-LS PHH930 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112238T1 | ANHX 120608 PNSR-MP PHP920 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112473T1 | ANHX 120604 PNSR-MP PHP920 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112429X9 | ANHX 120616 PNER-LS PHH930 | AN1206 | PLUS 17590 | A | 8.3 | £15.95 | 5 days | |
| PAL-1112103P4 | ANHX 100412 PNER-LM PHP930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112162X9 | ANHX 100408 PNER-LM PHH930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112103X9 | ANHX 100412 PNER-LM PHH930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112103T1 | ANHX 100412 PNER-LM PHP920 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112005X9 | ANHX 100405 PNER-LM PHH930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112162T1 | ANHX 100408 PNER-LM PHP920 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112162P4 | ANHX 100408 PNER-LM PHP930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112005P4 | ANHX 100405 PNER-LM PHP930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112005T1 | ANHX 100405 PNER-LM PHP920 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112106P4 | ANHX 100408 PNR-LP PHP930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1111908T1 | ANHX 100412 PNR-LP PHP920 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112106T1 | ANHX 100408 PNR-LP PHP920 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1111908P4 | ANHX 100412 PNR-LP PHP930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1111652T1 | ANHX 100405 PNR-LP PHP920 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1111652P4 | ANHX 100405 PNR-LP PHP930 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1111652X5 | ANHX 100405 PNR-LP PHP910 | AN1004 | PLUS 17190 | A | 6.2 | £15.12 | 5 days | |
| PAL-1112103G6 | ANHX 100412 PNER-LM PH7740 | AN1004 | PLUS 17190 | A | 6.2 | £13.80 | 5 days | |
| PAL-1112162G6 | ANHX 100408 PNER-LM PH7740 | AN1004 | PLUS 17190 | A | 6.2 | £13.80 | 5 days | |
| PAL-1112005G6 | ANHX 100405 PNER-LM PH7740 | AN1004 | PLUS 17190 | A | 6.2 | £13.80 | 5 days |
