Palbit Arbor Mounting Holder - For LN1306 Inserts - 40mm Cutter Diameter - 181118800

Palbit Arbor Mounting Holder - For LN1306 Inserts - 40mm Cutter Diameter - 181118800

SKU:PAL-181118800
The Palbit Arbor Mounting Holder is a precision tool holder engineered for LN1306 inserts, optimized for 40 mm cutter diameter operations. It delivers secure clamping and exceptional rigidity to e... Read more ↓
Specification
Insert Size & ShapeLN1306
Depth of Cut Maximum (APMX)11
Cutting Item Count (CICT)4
Connection Diameter (DCONMS)16
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)32
View all specifications ↓
£208.73
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

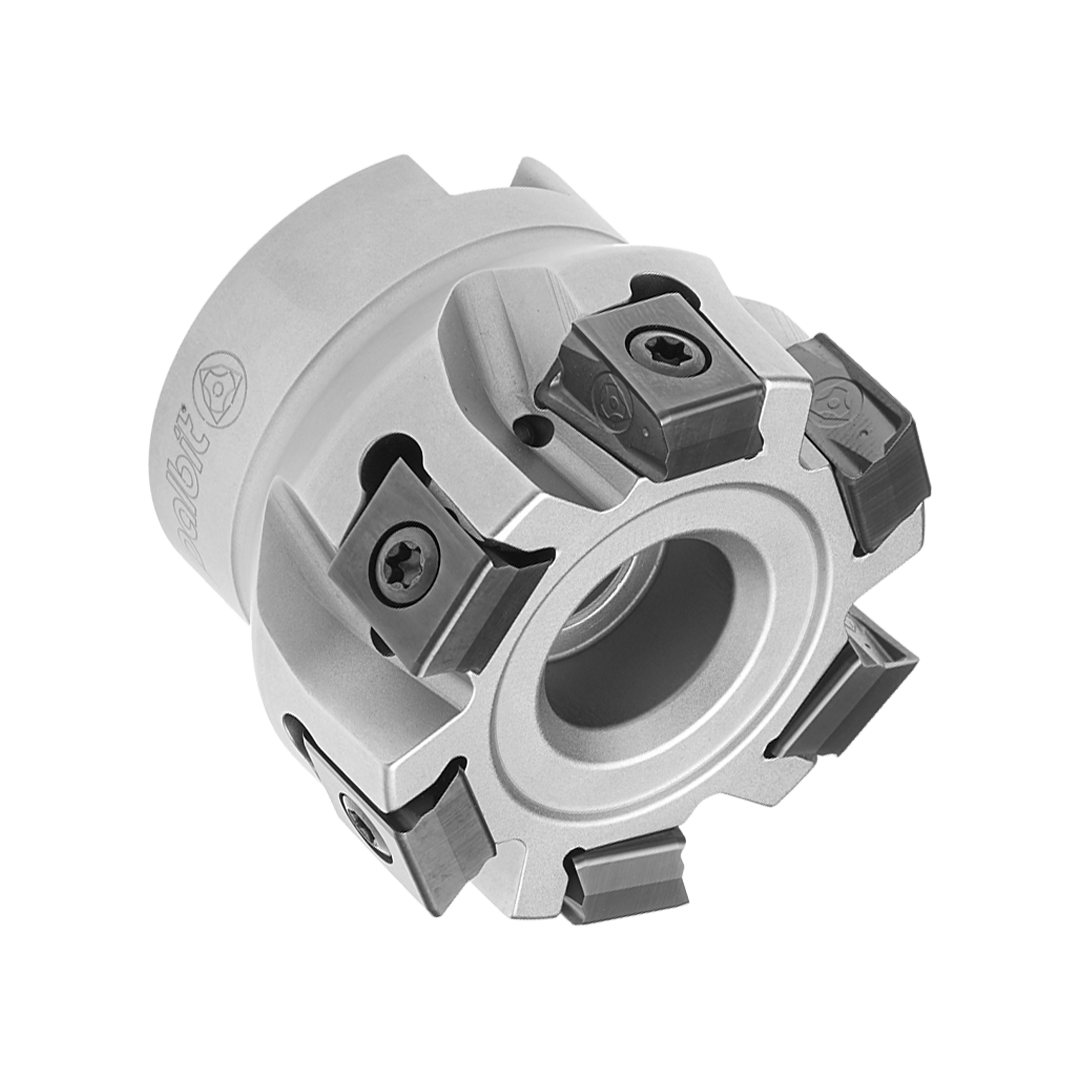

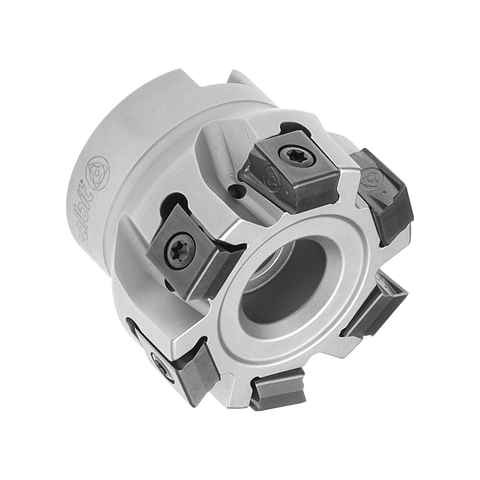

The Palbit Arbor Mounting Holder is a precision tool holder engineered for LN1306 inserts, optimized for 40 mm cutter diameter operations. It delivers secure clamping and exceptional rigidity to ensure consistent turning and grooving performance.

  • Compatibility: Specifically designed to accept LN1306 inserts for reliable seating and top-tier performance.
  • 40 mm Cutter Diameter Support: Suited for 40 mm cutter diameter applications to maximize stock removal efficiency.
  • Secure Clamping: Integrated clamp blocks and fasteners hold inserts firmly, minimizing runout at high speeds.
  • Rigid Construction: Robust body and clamping geometry provide stable, long-lasting rigidity under load.
  • Multi-Point Engagement: Mounting interface distributes cutting forces across multiple contact points for improved surface finish and tool life.
  • Model: 181118800 for precise identification and ordering.

With this holder, CNC machinists gain predictable performance, reduced runout, and cleaner surface finishes, translating into longer tool life and fewer reworks. The secure seating minimizes vibration during heavy cuts, supporting consistent tolerances in turning and grooving tasks. Its sturdy, dependable design helps streamline setup times and boost overall machining productivity in demanding environments.

Insert Size & Shape LN1306
Depth of Cut Maximum (APMX) 11
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 16
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 32
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 40
Torque (TQ) 3
Functional Length (LF) 40
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -21

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: TGPLUS 90190 - Arbor Mounting

View full collection →

You are viewing PAL-181118800. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181119300 LN1306Shouldering CuttersArbor Mounting8050£442.94 5 days
PAL-181119200 LN1306Shouldering CuttersArbor Mounting8050£374.11 5 days
PAL-181119100 LN1306Shouldering CuttersArbor Mounting6340£371.71 5 days
PAL-181119000 LN1306Shouldering CuttersArbor Mounting6340£316.54 5 days
PAL-181111300 LN1306Shouldering CuttersArbor Mounting5040£315.78 5 days
PAL-181111200 LN1306Shouldering CuttersArbor Mounting5040£288.28 5 days
PAL-181118900 LN1306Shouldering CuttersArbor Mounting4040£233.28 5 days
PAL-181118800 ViewingLN1306Shouldering CuttersArbor Mounting4040£208.73 5 days
PAL-181119700 LN1306Shouldering CuttersArbor Mounting12563£835.12 5 days
PAL-181119600 LN1306Shouldering CuttersArbor Mounting12563£657.76 5 days
PAL-181119500 LN1306Shouldering CuttersArbor Mounting10050£632.28 5 days
PAL-181119400 LN1306Shouldering CuttersArbor Mounting10050£477.28 5 days
