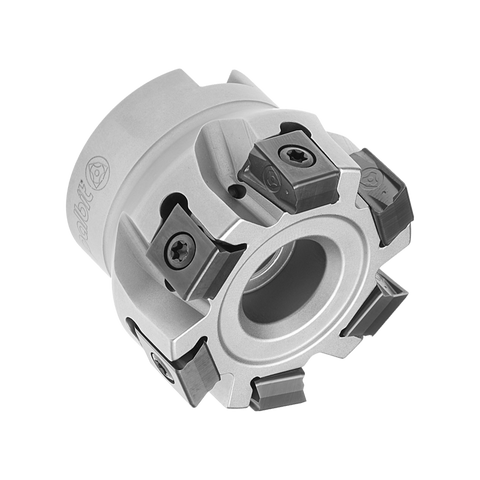

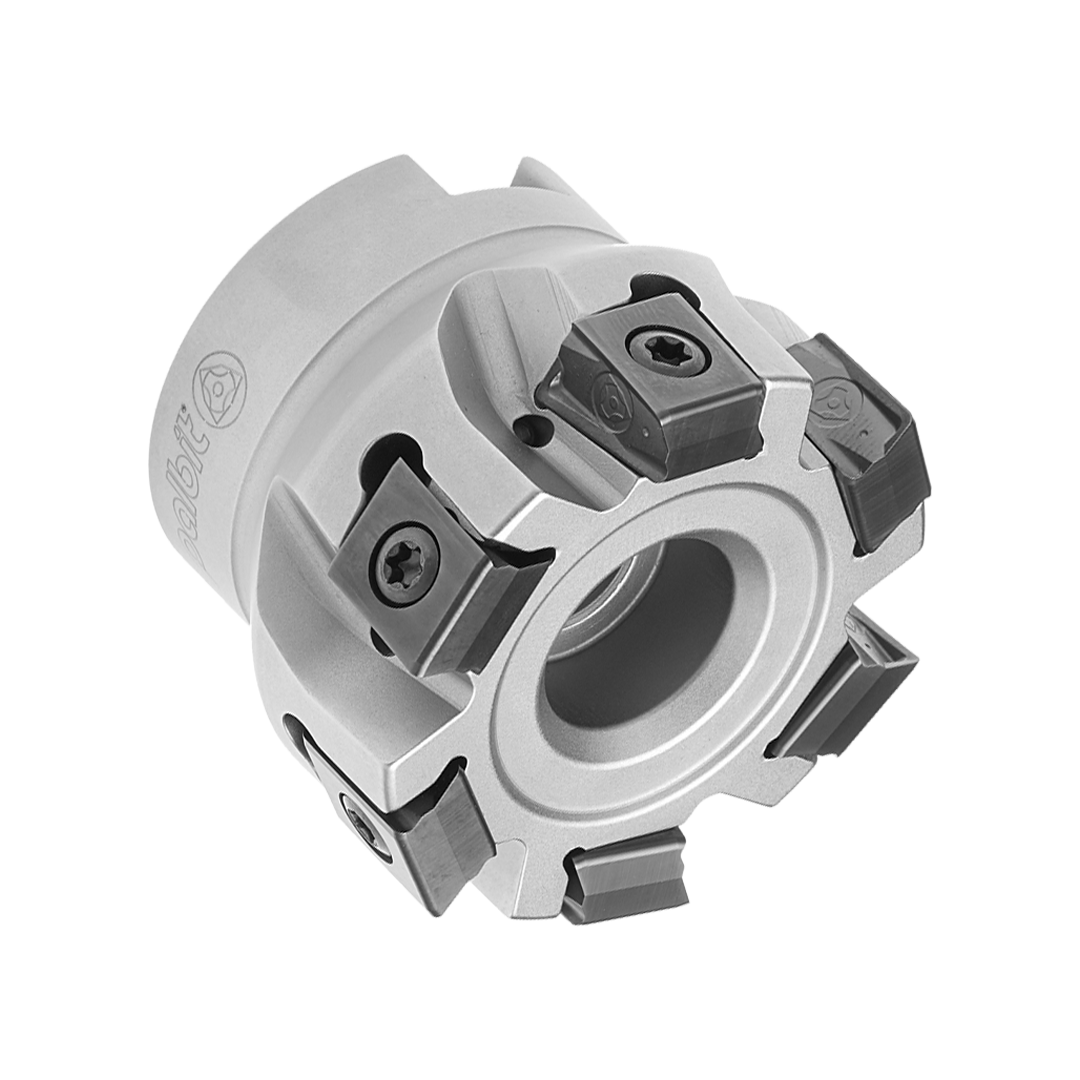

Palbit Arbor Mounting Holder - For LN1306 Inserts - 100mm Cutter Diameter - 181119400

Palbit Arbor Mounting Holder - For LN1306 Inserts - 100mm Cutter Diameter - 181119400

SKU:PAL-181119400
Palbit Arbor Mounting Holder for LN1306 inserts delivers precise, durable support for turning and grooving operations. Engineered for secure clamping and high rigidity, it helps machinists achieve... Read more ↓
Specification
Insert Size & ShapeLN1306
Depth of Cut Maximum (APMX)11
Cutting Item Count (CICT)9
Connection Diameter (DCONMS)32
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)80
View all specifications ↓
£477.28
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder for LN1306 inserts delivers precise, durable support for turning and grooving operations. Engineered for secure clamping and high rigidity, it helps machinists achieve consistent finishes and longer tool life on demanding jobs.

  • Compatibility: Designed to hold LN1306 inserts for reliable alignment and repeatable performance.
  • Cutter Diameter: 100 mm cutter diameter to support stable, wide-path cutting.
  • Clamping System: Robust, secure clamping minimizes insert movement for accurate seating and repeatable results.
  • Rigidity & Stability: Geometry and construction maximize rigidity to reduce deflection during turning and grooving.
  • Surface Finish Enhancement: Precision interface maintains insert position for superior surface finishes.
  • Durability: Built to endure demanding machining environments, extending tool life and reducing downtime.

By delivering secure mounting and rigid support, this holder minimizes vibration, improves surface quality, and extends tool life even under heavy cutting. The LN1306-compatible interface enables fast, repeatable tool changes with precise insert seating, reducing setup time and part-to-part variation. The 100 mm diameter adds stability for aggressive passes and larger chip loads, helping you maximize material removal while preserving accuracy and finish.

Insert Size & Shape LN1306
Depth of Cut Maximum (APMX) 11
Cutting Item Count (CICT) 9
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 80
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 100
Torque (TQ) 3
Functional Length (LF) 50
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -18

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: TGPLUS 90190 - Arbor Mounting

View full collection →

You are viewing PAL-181119400. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181119300 LN1306Shouldering CuttersArbor Mounting8050£442.94 5 days
PAL-181119200 LN1306Shouldering CuttersArbor Mounting8050£374.11 5 days
PAL-181119100 LN1306Shouldering CuttersArbor Mounting6340£371.71 5 days
PAL-181119000 LN1306Shouldering CuttersArbor Mounting6340£316.54 5 days
PAL-181111300 LN1306Shouldering CuttersArbor Mounting5040£315.78 5 days
PAL-181111200 LN1306Shouldering CuttersArbor Mounting5040£288.28 5 days
PAL-181118900 LN1306Shouldering CuttersArbor Mounting4040£233.28 5 days
PAL-181118800 LN1306Shouldering CuttersArbor Mounting4040£208.73 5 days
PAL-181119700 LN1306Shouldering CuttersArbor Mounting12563£835.12 5 days
PAL-181119600 LN1306Shouldering CuttersArbor Mounting12563£657.76 5 days
PAL-181119500 LN1306Shouldering CuttersArbor Mounting10050£632.28 5 days
PAL-181119400 ViewingLN1306Shouldering CuttersArbor Mounting10050£477.28 5 days
