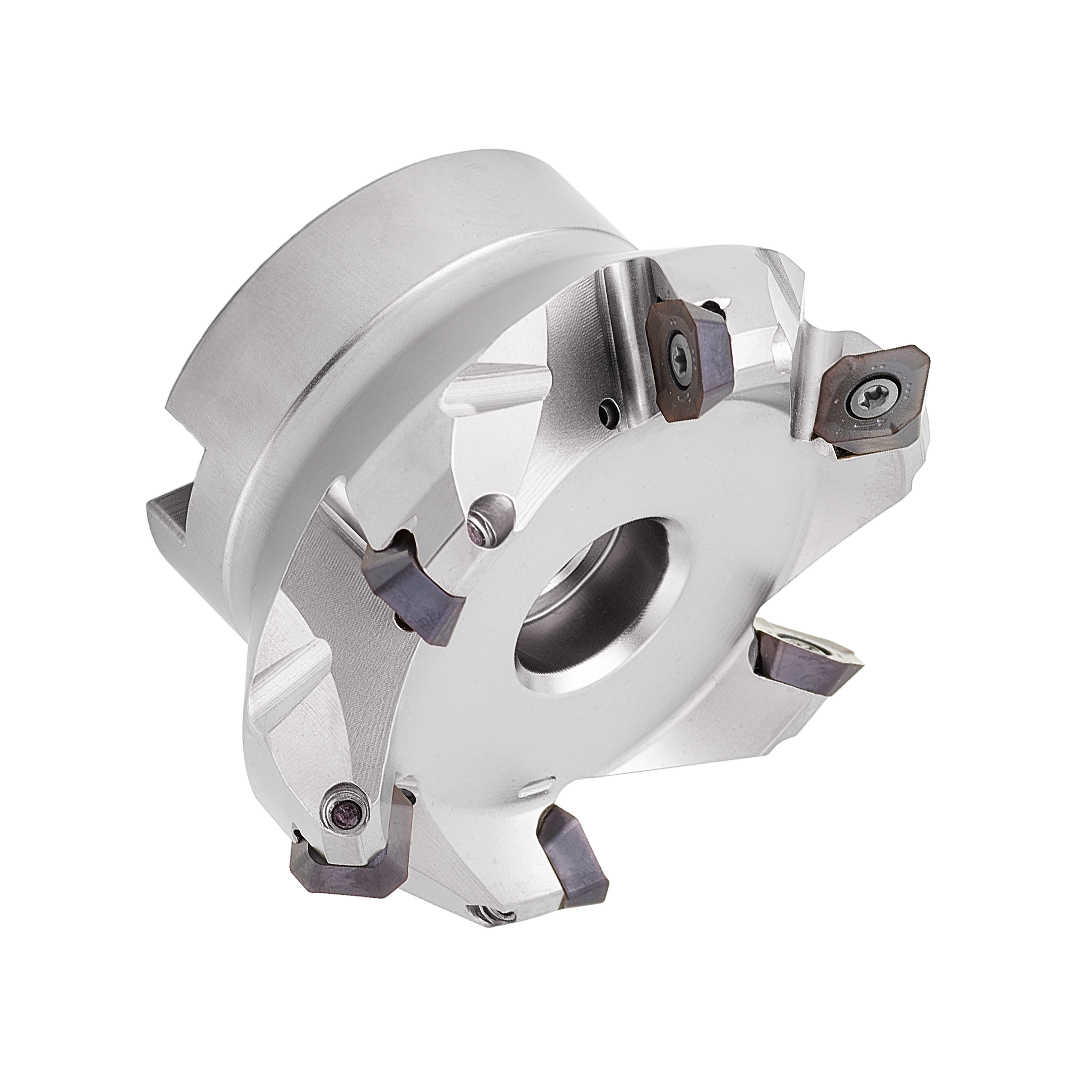

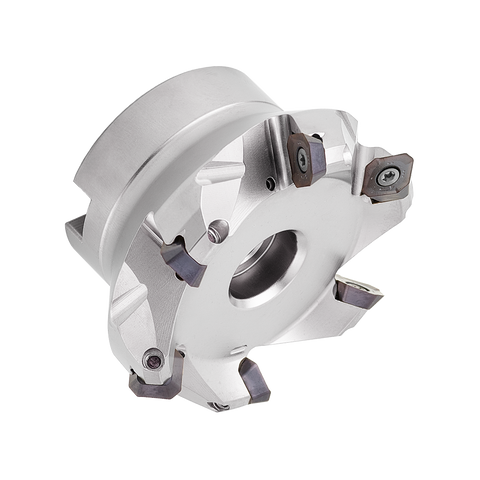

Palbit Arbor Mounting Holder - For SF1004 OF0403 Inserts - 50mm Cutter Diameter - 181164400
| Insert Size & Shape | SF1004 OF0403 |
| Depth of Cut Maximum (APMX) | 3.50 2.50 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
Learn more about Klarna
Palbit Arbor Mounting Holder for SF1004 and OF0403 inserts is purpose-built for 50mm cutter diameter applications. Designed to maximize grooving and parting efficiency, it provides secure insert retention, exceptional rigidity, and reliable precision for high-speed CNC machining. Engineers and machinists trust it to deliver consistent tool life and superior surface finish even in demanding production environments.
- Secure insert retention: Keeps SF1004 and OF0403 inserts firmly seated and aligned, minimizing movement and ensuring predictable cuts with less downtime.
- Rigid, precision-driven design: Built to resist deflection and vibration at high speeds, helping you achieve cleaner finishes and tighter tolerances.
- Trusted reliability for production: Engineered for demanding environments, delivering long tool life and stable results across continuous machining cycles.
Using the Palbit Arbor Mounting Holder helps streamline tool changes, sustain cutting geometry, and maintain consistent performance. The combination of secure retention and rigid construction supports faster part production, improved surface quality, and extended life from SF1004/OF0403 inserts—making it a dependable choice for both routine manufacture and precision work.
| Insert Size & Shape | SF1004 OF0403 |
| Depth of Cut Maximum (APMX) | 3.50 2.50 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 50 |
| Torque (TQ) | 1.4 |
| Maximum Cutting Diameter (DCX) | 55.8 |
| Cutting Diameter (DC2) | 48.4 |
| Maximum Cutting Diameter 2(DCX2) | 57.7 |
| Functional Length (LF) | 40.7 |
| Axial Rake Angel (GAMP) | 18 |
| Rdial Rake Angle (GAMF) | -2.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 57045 - Arbor Mounting
View full collection →You are viewing PAL-181164400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181164500 | SF1004 OF0403 | Facing Cutters | Arbor Mounting | 63 | 40.7 | £342.70 | 5 days | |
| PAL-181164200 | SF1004 OF0403 | Facing Cutters | Arbor Mounting | 40 | 40.7 | £287.42 | 5 days | |
| PAL-181164400 Viewing | SF1004 OF0403 | Facing Cutters | Arbor Mounting | 50 | 40.7 | £316.91 | 5 days |
