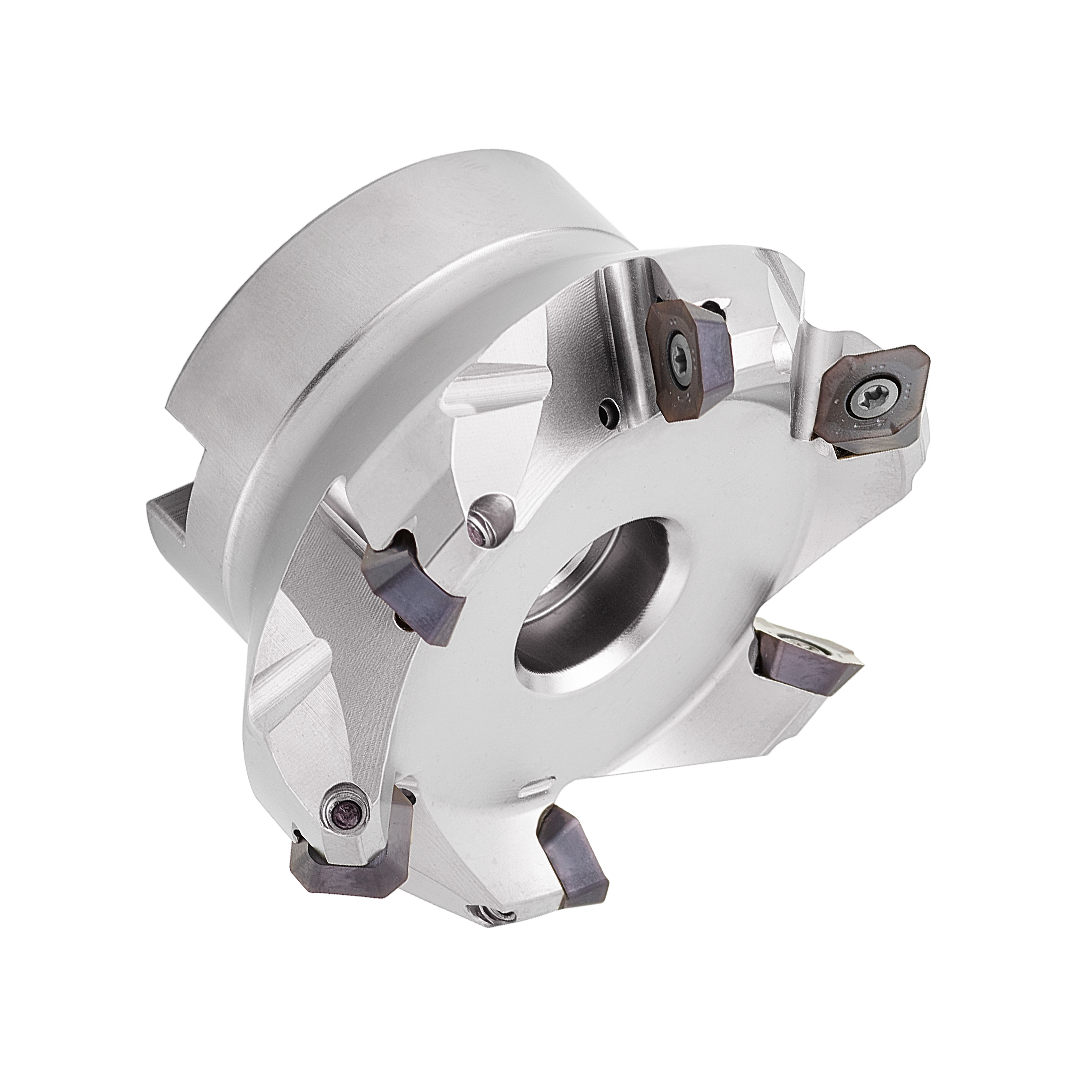

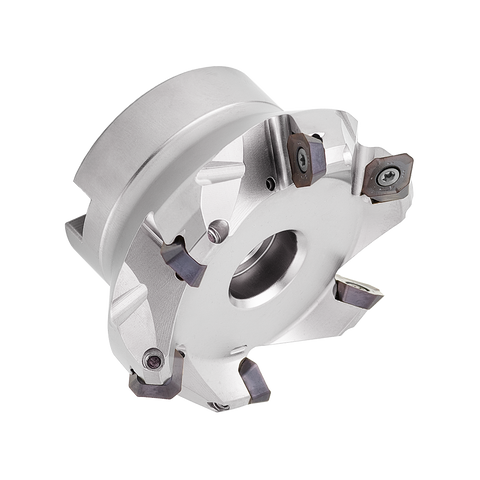

Palbit Arbor Mounting Holder - For SF1004 OF0403 Inserts - 63mm Cutter Diameter - 181164500
| Insert Size & Shape | SF1004 OF0403 |
| Depth of Cut Maximum (APMX) | 3.50 2.50 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
Learn more about Klarna
Palbit Arbor Mounting Holder for SF1004 and OF0403 inserts (63mm cutter diameter) is designed to boost grooving and parting efficiency on high-speed CNC machines. Built to secure inserts firmly, it delivers enhanced rigidity and reliable precision, making it an ideal choice for demanding production environments where consistent results matter.
- Secure insert retention: Keeps inserts locked in place for stable cutting, reducing movement and ensuring consistent results across runs.
- Exceptional rigidity and precision: Robust, rigid construction minimizes deflection, helping you maintain accuracy even at higher speeds and tougher materials.
- Optimized for high-speed CNC machining: Engineered specifically for SF1004 and OF0403 inserts to maximise throughput while delivering steady tool life and superior surface finish.
Designed to integrate seamlessly into your existing tooling setup, this holder supports efficient grooving and parting with predictable performance. Its reliable retention, stiffness, and precision translate into a more productive workflow, improved surface quality, and longer, more consistent tool life in demanding manufacturing environments.
| Insert Size & Shape | SF1004 OF0403 |
| Depth of Cut Maximum (APMX) | 3.50 2.50 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 63 |
| Torque (TQ) | 1.4 |
| Maximum Cutting Diameter (DCX) | 68.8 |
| Cutting Diameter (DC2) | 61.4 |
| Maximum Cutting Diameter 2(DCX2) | 70.7 |
| Functional Length (LF) | 40.7 |
| Axial Rake Angel (GAMP) | 18 |
| Rdial Rake Angle (GAMF) | -2.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 57045 - Arbor Mounting
View full collection →You are viewing PAL-181164500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181164500 Viewing | SF1004 OF0403 | Facing Cutters | Arbor Mounting | 63 | 40.7 | £342.70 | 5 days | |
| PAL-181164200 | SF1004 OF0403 | Facing Cutters | Arbor Mounting | 40 | 40.7 | £287.42 | 5 days | |
| PAL-181164400 | SF1004 OF0403 | Facing Cutters | Arbor Mounting | 50 | 40.7 | £316.91 | 5 days |
