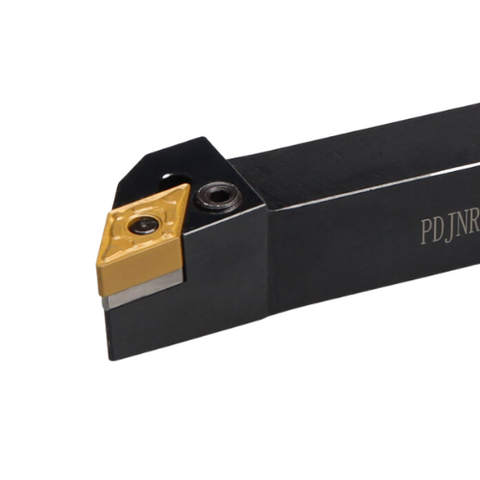

Vortex Turning Tool Holder Pin Lock 93 DEG - For DNMG1104 Inserts - PDJNR1616H11
| ISO Code | PDJNR 1616 H11 |
| Shank Size | 16x16 |
| Insert | DN** 1104-- |
| Locking System | Pin Lock |
| Hand | Right |
| Overall Length | 100 |
Learn more about Klarna
Precision-focused turning tool holder designed for machinists and job shops that demand consistent accuracy. The Vortex Turning Tool Holder with 93° geometry and Pin Lock is optimized for DNMG1104 inserts, delivering secure clamping and repeatable results in turning operations.
- 93° geometry: Optimized 93-degree orientation aligns with DNMG1104 inserts to improve approach angle and chip flow, aiding finish quality and consistency.
- Pin Lock clamping: Pin-driven locking provides positive seating and repeatable insert positioning for reliable tool life and predictable cuts.
- DNMG1104 insert compatibility: Specifically engineered to hold DNMG1104 inserts securely, maximizing engagement and minimizing insert movement during heavy cuts.
- PDJNR1616H11 design: Part of the PDJNR series, featuring a robust shank and tight tolerances for stable performance across multiple passes.
- Durable construction: Built from high-quality tool steel with precision ground interfaces to resist wear and maintain accuracy over time.
This combination delivers tangible manufacturing advantages: precise insert seating reduces runout, steady clamping minimizes vibration, and consistent insert indexing supports predictable cycle times and superior surface finishes on a range of materials. For a complete setup, consider compatible hardware and accessories to optimize performance:
| ISO Code | PDJNR 1616 H11 |
| Shank Size | 16x16 |
| Insert | DN** 1104-- |
| Locking System | Pin Lock |
| Hand | Right |
| Overall Length | 100 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 93 DEG - For DNMG Inserts (PDJNR)
View full collection →You are viewing PRO1600028. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600028 Viewing | PDJNR 1616 H11 | 16x16 | DN** 1104-- | Pin Lock | Right | 100 | £23.56 | In Stock | |
| PRO1600029 | PDJNR 2020 K11 | 20x20 | DN** 1104-- | Pin Lock | Right | 125 | £24.67 | 4-6 weeks | |
| PRO1600030 | PDJNR 2525 M11 | 25x25 | DN** 1104-- | Pin Lock | Right | 150 | £25.92 | In Stock | |
| PRO1600031 | PDJNR 2020 K1504 | 20x20 | DN** 1504-- | Pin Lock | Right | 125 | £25.92 | In Stock | |
| PRO1600032 | PDJNR 2525 M1504 | 25x25 | DN** 1504-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600033 | PDJNR 2020 K1506 | 20x20 | DN** 1506-- | Pin Lock | Right | 125 | £24.67 | 4-6 weeks | |
| PRO1600034 | PDJNR 2525 M1506 | 25x25 | DN** 1506-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600524 | PDJNL1616H11 | 16x16 | DN** 1104-- | Pin Lock | Left | 100 | £59.58 | 4-6 weeks | |
| PRO1600525 | PDJNL2020K11 | 20x20 | DN** 1104-- | Pin Lock | Left | 125 | £59.58 | 4-6 weeks | |
| PRO1600526 | PDJNL2020K15 | 20x20 | DN** 1506-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |
| PRO1600527 | PDJNL2525M11 | 25x25 | DN** 1104-- | Pin Lock | Left | 150 | £59.58 | 4-6 weeks | |
| PRO1600528 | PDJNL2525M15 | 25x25 | DN** 1506-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks |
