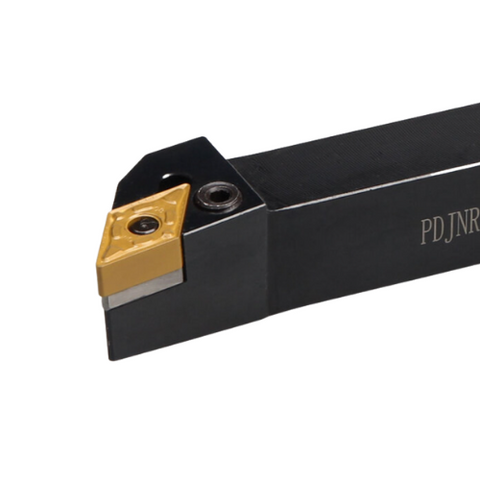

Vortex Turning Tool Holder Pin Lock 93 DEG - For DNMG1504 Inserts - PDJNR2020K1504
| ISO Code | PDJNR 2020 K1504 |
| Shank Size | 20x20 |
| Insert | DN** 1504-- |
| Locking System | Pin Lock |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
Meet the PDJNR2020K1504 Vortex Turning Tool Holder — a precision tool holder designed for DNMG1506 inserts, built for dependable performance in turning applications. Its 93-degree orientation with a Pin Lock ensures secure insert seating and reliable clamping for consistent, high-quality finishes.
- Angle: 93-degree orientation optimized for DNMG1506 inserts to enhance cutting geometry and reach.
- Insert compatibility: specifically engineered to hold DNMG1506 inserts securely and reliably.
- Locking system: Pin Lock mechanism provides repeatable, wobble-free clamping for stable cutting and consistent results.
- Build and fit: robust, compact tool holder body designed to minimize deflection during turning operations.
- Ease of use: straightforward insert installation and locking, reducing setup time between jobs.
- Applications: ideal for precision turning tasks on CNC lathes, including finishing and light roughing passes.
This Vortex Turning Tool Holder delivers repeatable insert positioning and secure clamping that translates into fewer tool changes, improved surface finish, and more predictable cycle times. The 93-degree geometry supports efficient chip flow and effective engagement with DNMG1506 inserts, making it a reliable choice for shops upgrading turning operations. Pair it with standard clamping components to create a complete, repeatable tooling setup tailored to your turning workflows.
Part Numbers
- Protool Part Number
- PRO1600031
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 93 DEG - For DNMG Inserts (PDJNR)
View full collection →You are viewing PRO1600031. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600028 | PDJNR 1616 H11 | 16x16 | DN** 1104-- | Pin Lock | Right | 100 | £23.56 | In Stock | |
| PRO1600029 | PDJNR 2020 K11 | 20x20 | DN** 1104-- | Pin Lock | Right | 125 | £24.67 | 4-6 weeks | |
| PRO1600030 | PDJNR 2525 M11 | 25x25 | DN** 1104-- | Pin Lock | Right | 150 | £25.92 | In Stock | |
| PRO1600031 Viewing | PDJNR 2020 K1504 | 20x20 | DN** 1504-- | Pin Lock | Right | 125 | £25.92 | In Stock | |
| PRO1600032 | PDJNR 2525 M1504 | 25x25 | DN** 1504-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600033 | PDJNR 2020 K1506 | 20x20 | DN** 1506-- | Pin Lock | Right | 125 | £24.67 | 4-6 weeks | |
| PRO1600034 | PDJNR 2525 M1506 | 25x25 | DN** 1506-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600524 | PDJNL1616H11 | 16x16 | DN** 1104-- | Pin Lock | Left | 100 | £59.58 | 4-6 weeks | |
| PRO1600525 | PDJNL2020K11 | 20x20 | DN** 1104-- | Pin Lock | Left | 125 | £59.58 | 4-6 weeks | |
| PRO1600526 | PDJNL2020K15 | 20x20 | DN** 1506-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |
| PRO1600527 | PDJNL2525M11 | 25x25 | DN** 1104-- | Pin Lock | Left | 150 | £59.58 | 4-6 weeks | |
| PRO1600528 | PDJNL2525M15 | 25x25 | DN** 1506-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks |
