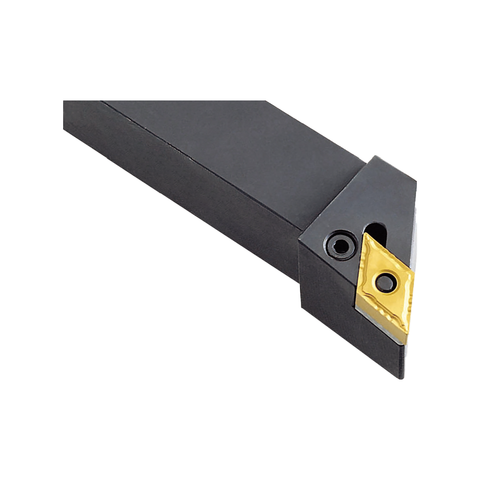

PDJNL1616-H11 Standard Turning Tool Holder, 16 x 16mm Shank, 100mm Long, Left Hand, 93 Degree Approach, Lever Lock, for DNMG11 inserts - PDJNR/L Series (Vortex)
| ISO Code | PDJNL1616H11 |
| Shank Size | 16x16 |
| Insert | DN** 1104-- |
| Locking System | Pin Lock |
| Hand | Left |
| Overall Length | 100 |
Learn more about Klarna
The PDJNL1616-H11 is a robust standard turning tool holder designed for DNMG11 inserts, built with a solid steel shank for dependable performance in CNC turning. Featuring a left-hand configuration and a 93° approach, it delivers precise cutting and quick insert changes for busy machining environments.
- Shank size: 16 x 16 mm, 100 mm long, left-hand configuration for compatible turning setups
- Clamp style: Lever-lock clamping for fast, secure insert changes with reduced downtime
- Approach angle: 93° approach to optimize cutting geometry and chip flow
- Insert compatibility: Designed for DNMG11 turning inserts
- Material: Solid steel construction delivering rigidity and long-term durability
- Series: PDJNR/L Series (Vortex) for reliable, common machining applications
With the lever-lock system, swapping DNMG11 inserts becomes quick and tool-free, keeping your workflow moving and minimizing setup time. The 100 mm shank length provides reach in tighter pockets while preserving stiffness for consistent tool life and smooth cutting action. The left-hand orientation suits a range of turning configurations, and the 93° approach helps maintain stable chip control and accurate engagement with each pass. Built to endure demanding machining, this tool holder is ideal for general turning tasks—from roughing to finishing—where reliability and precision matter most.
| ISO Code | PDJNL1616H11 |
| Shank Size | 16x16 |
| Insert | DN** 1104-- |
| Locking System | Pin Lock |
| Hand | Left |
| Overall Length | 100 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 93 DEG - For DNMG Inserts (PDJNR)
View full collection →You are viewing PRO1600524. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600028 | PDJNR 1616 H11 | 16x16 | DN** 1104-- | Pin Lock | Right | 100 | £23.56 | In Stock | |
| PRO1600029 | PDJNR 2020 K11 | 20x20 | DN** 1104-- | Pin Lock | Right | 125 | £24.67 | 4-6 weeks | |
| PRO1600030 | PDJNR 2525 M11 | 25x25 | DN** 1104-- | Pin Lock | Right | 150 | £25.92 | In Stock | |
| PRO1600031 | PDJNR 2020 K1504 | 20x20 | DN** 1504-- | Pin Lock | Right | 125 | £25.92 | In Stock | |
| PRO1600032 | PDJNR 2525 M1504 | 25x25 | DN** 1504-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600033 | PDJNR 2020 K1506 | 20x20 | DN** 1506-- | Pin Lock | Right | 125 | £24.67 | 4-6 weeks | |
| PRO1600034 | PDJNR 2525 M1506 | 25x25 | DN** 1506-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600524 Viewing | PDJNL1616H11 | 16x16 | DN** 1104-- | Pin Lock | Left | 100 | £59.58 | 4-6 weeks | |
| PRO1600525 | PDJNL2020K11 | 20x20 | DN** 1104-- | Pin Lock | Left | 125 | £59.58 | 4-6 weeks | |

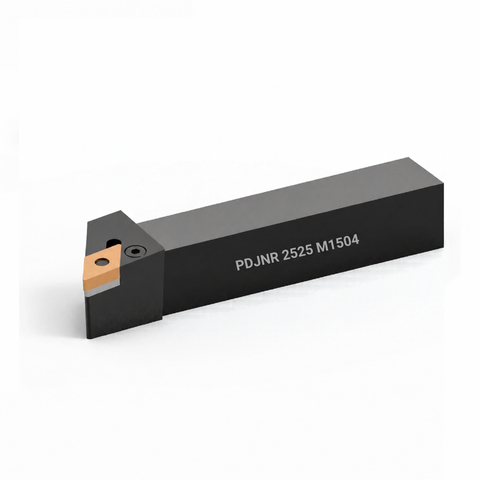

| PRO1600526 | PDJNL2020K15 | 20x20 | DN** 1506-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |
| PRO1600527 | PDJNL2525M11 | 25x25 | DN** 1104-- | Pin Lock | Left | 150 | £59.58 | 4-6 weeks | |
| PRO1600528 | PDJNL2525M15 | 25x25 | DN** 1506-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks |
