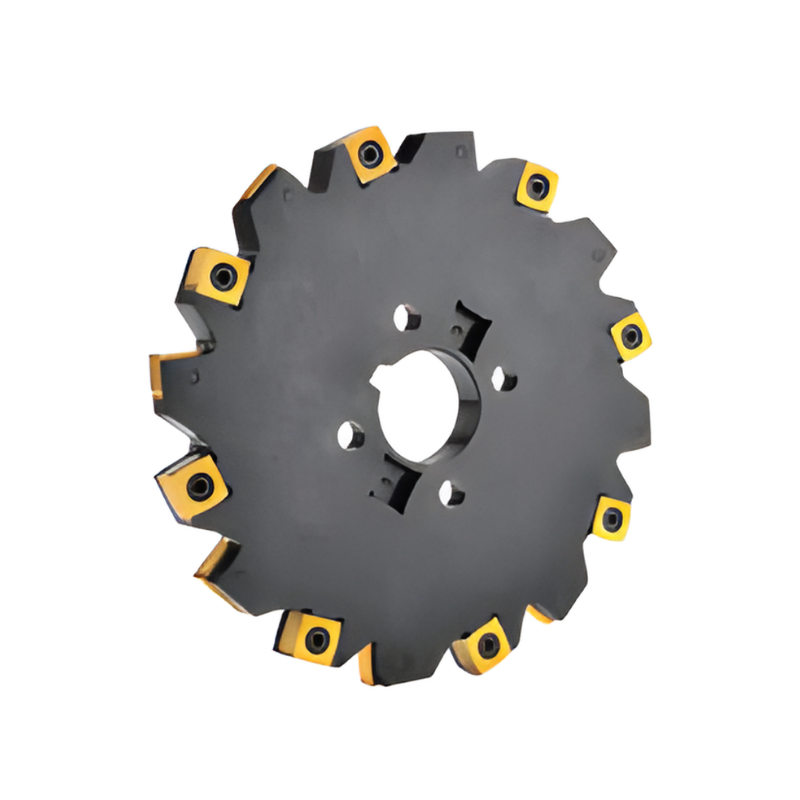

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 120 Inserts - 200mm Diameter 12mm Insert Thickness 54mm Cutting Depth 18 Teeth (SCL-200-12-40)

The Y.T. Indexable Side Milling Cutter (SCL-200-12-40) is a precision, insert-based milling tool designed for SNGX/SNGW 120 inserts. Its 200 mm diameter, 18 teeth, 12 mm insert thickness, and 54 mm cutting depth deliver reliable side milling performance in demanding workpieces.

• Diameter: 200 mm
• Teeth: 18
• Insert Thickness: 12 mm
• Cutting Depth: 54 mm
• Insert Compatibility: Uses indexable carbide inserts; compatible with SNGX/SNGW 120 inserts and supports over 10 insert types
• Insert Clamping Design: Safe and reliable insert clamping
• Chip Evacuation: Patented design prevents chip blockages within the groove during operation
• Maximum RPM: Certified up to 17,200 RPM (Swedish customers)
• Series Range: Part of a broader series with standard insert thicknesses from 1.4 mm to 5.5 mm and diameters from 50 mm to 300 mm

With interchangeable carbide inserts, you can replace worn inserts quickly without changing the cutter itself. The tool’s high RPM capability supports efficient material removal, while the patented chip evacuation design minimizes interruptions by keeping grooves clear. The safe, reliable insert clamping and broad insert compatibility provide flexible, long-term performance for professional machining environments.
