Carmex Small Indexable Carbide Insert Face Grooving Full Radius External - T10 - 12mm Min Bore - 3mm Width - R1.5
| Insert Size | T10 |
| Radius | 1.5 |
| Groove Width | 3.00 |
| Groove Depth | 3.00 |
Learn more about Klarna
Description
The Carmex Small Indexable Carbide Insert for face grooving creates precise full-radius grooves with an external configuration, designed for small-bore operations. Built to perform across a range of materials, it pairs reliable geometry with a tough BLU PVD coated carbide substrate.
- External face grooving insert: Indexable design for controlled, repeatable groove creation with a full-radius profile (R1.5).
- Groove geometry: Full-radius groove yields smooth inner corners and consistent depth across passes.
- Min. bore: Ø Min.Bore 12.0 mm (0.47 in) for compact applications.
- Width: 3.0 mm cutting width for precise depth control.
- Material & coating: Carbide grade BLU with a triple-layer PVD coating of sub-micron thickness for enhanced wear resistance.
- Insert size: T10 size for precise positioning on tooling setups.
- Material compatibility: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys (M10–M20, K05–K20, N10–N20, S10–S20).
This insert is engineered to deliver repeatable, high-precision full-radius grooves in challenging materials, expanding capabilities in small-diameter components. The BLU PVD coating enhances wear resistance across diverse alloys, while the compact geometry and 12 mm minimum bore enable tight-radius grooving without compromising strength or finish. With its indexable design, tool life is extended and replacement is straightforward, keeping throughput steady and efficient.
Part Numbers
- Protool Part Number
- T10ZER15H30BLU
- Brand
- Carmex
- Category
- Mini Tool Insert
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Small Indexable Carbide Insert Face Grooving Full Radius External
View full collection →You are viewing T10ZER15H30BLU. Click any other SKU to view its full details.

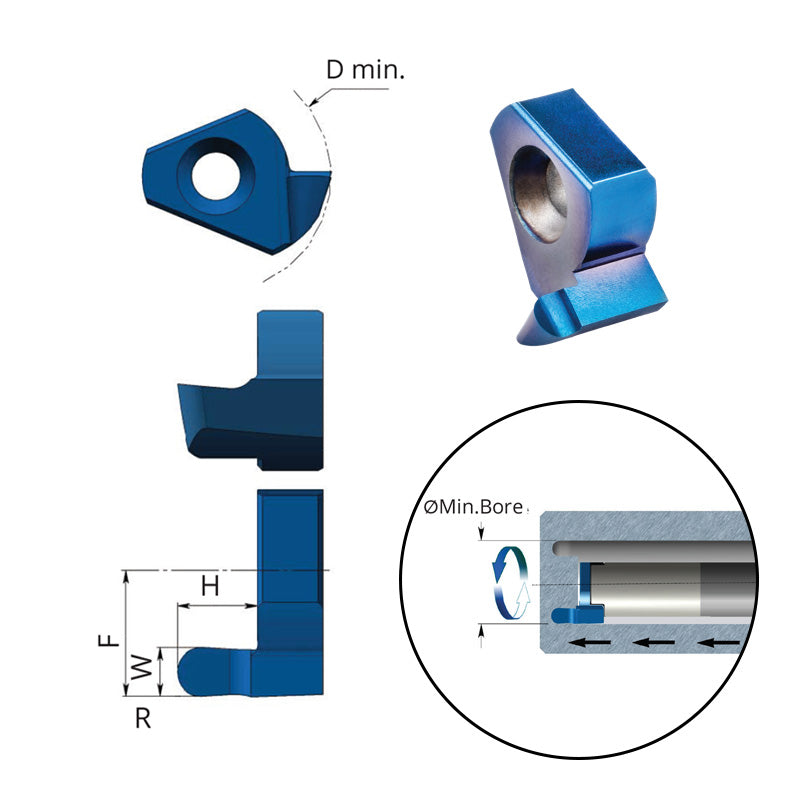

| Product SKU | Insert Size | Radius | Groove Width | Groove Depth | Minimum Bore | F | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| T10ZER05H15BLU | T10 | 0.5 | 1.00 | 1.50 | 12 | 8 | £19.44 | In Stock | |
| T10ZER08H25BLU | T10 | 0.8 | 1.60 | 2.50 | 12 | 8 | £20.46 | In Stock | |
| T10ZER10H30BLU | T10 | 1 | 2.00 | 3.00 | 12 | 8 | £21.22 | 5 days | |
| T10ZER125H30BLU | T10 | 1.25 | 2.50 | 3.00 | 12 | 8 | £21.22 | In Stock | |
| T10ZER15H30BLU Viewing | T10 | 1.5 | 3.00 | 3.00 | 12 | 8 | £21.22 | In Stock |
