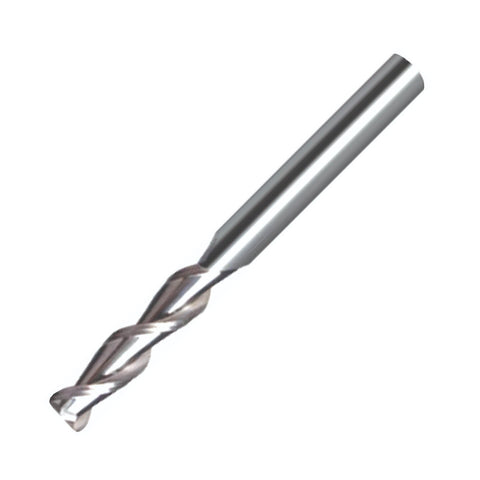

Vortex Carbide End Mill For Aluminium & Non-Ferrous - 2 Flute Long Radius Edge 45° - 10mm x 100mm x R0.5
SKU:PRO1500645
The Vortex Carbide End Mill for Aluminium & Non-Ferrous is a precision cutting tool designed for contouring, slotting, and profiling in aluminium and non-ferrous alloys. Featuring a 2-flute de...
Read more ↓
Material Compatibility
N
Specification
Download Cutting Data
| Cutter Diameter | 10 |
| Number of Flutes | 2 |
| Flute Length | 40 |
| Overall Length | 100 |
| Shank Diameter | 10 |
| Corner Radius | 0.5 |
£72.00
Prices shown ex. VAT
In Stock— only 6 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Vortex Carbide End Mill for Aluminium & Non-Ferrous is a precision cutting tool designed for contouring, slotting, and profiling in aluminium and non-ferrous alloys. Featuring a 2-flute design and a long-radius edge, it delivers smooth cuts, reduced cutting forces, and extended tool life with a 45° helix that enhances chip evacuation.
- Diameter x Length x Radius: 10 mm cutting diameter, 100 mm overall length, R0.5 mm corner radius
- Flute configuration: 2-flute design tuned for efficient material removal in non-ferrous metals
- Edge geometry: Long-radius edge minimizes rubbing for improved surface finish on complex profiles
- Helix angle: 45° helix optimizes chip flow and reduces cutting forces
- Material: Solid carbide construction for rigidity, wear resistance, and heat tolerance
- Recommended applications: Contouring, slotting, and profiling in aluminium and other non-ferrous alloys
The combination of geometry and material delivers cleaner surfaces, steadier performance, and longer tool life in demanding milling workflows. With its precise corner radius and robust construction, this end mill enables accurate radii, tight corners, and efficient finishing across prototypes and production runs.
| Cutter Diameter | 10 |
| Number of Flutes | 2 |
| Flute Length | 40 |
| Overall Length | 100 |
| Shank Diameter | 10 |
| Corner Radius | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Carbide End Mill For Aluminium & Non-Ferrous - 2 Flute Long Radius Edge (45°) (VOR45-RALS245)
View full collection →You are viewing PRO1500645. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1500605 | 3 | 2 | 12 | 75 | 6 | 0.2 | £26.88 | 4-6 weeks | |
| PRO1500604 | 3 | 2 | 12 | 100 | 6 | 0.2 | £32.10 | In Stock | |
| PRO1500606 | 3 | 2 | 12 | 100 | 6 | 0.5 | £32.10 | 4-6 weeks | |
| PRO1500608 | 4 | 2 | 16 | 100 | 6 | 0.3 | £32.10 | In Stock | |
| PRO1500607 | 3 | 2 | 12 | 75 | 6 | 0.5 | £26.88 | In Stock | |
| PRO1500609 | 4 | 2 | 16 | 75 | 6 | 0.3 | £26.88 | In Stock | |
| PRO1500611 | 4 | 2 | 16 | 75 | 6 | 0.5 | £26.88 | In Stock | |
| PRO1500610 | 4 | 2 | 16 | 100 | 6 | 0.5 | £32.10 | 4-6 weeks | |
| PRO1500612 | 5 | 2 | 20 | 100 | 6 | 0.3 | £32.10 | In Stock | |
| PRO1500613 | 5 | 2 | 20 | 75 | 6 | 0.3 | £26.88 | In Stock | |
| PRO1500614 | 5 | 2 | 20 | 100 | 6 | 0.5 | £32.10 | In Stock | |
| PRO1500615 | 5 | 2 | 20 | 75 | 6 | 0.5 | £26.88 | 4-6 weeks | |
| PRO1500616 | 6 | 2 | 25 | 100 | 6 | 0.5 | £32.10 | In Stock | |
| PRO1500617 | 6 | 2 | 25 | 75 | 6 | 0.5 | £26.88 | In Stock | |
| PRO1500618 | 6 | 2 | 25 | 100 | 6 | 0.8 | £32.10 | In Stock | |
| PRO1500619 | 6 | 2 | 25 | 75 | 6 | 0.8 | £26.88 | In Stock | |
| PRO1500620 | 6 | 2 | 25 | 100 | 6 | 1 | £32.10 | 4-6 weeks | |
| PRO1500621 | 6 | 2 | 25 | 75 | 6 | 1 | £26.88 | 4-6 weeks | |
| PRO1500622 | 6 | 2 | 25 | 100 | 6 | 1.5 | £37.68 | In Stock | |
| PRO1500623 | 6 | 2 | 25 | 75 | 6 | 1.5 | £32.82 | 4-6 weeks | |
| PRO1500624 | 8 | 2 | 30 | 100 | 8 | 0.5 | £49.98 | 4-6 weeks | |
| PRO1500625 | 8 | 2 | 40 | 150 | 8 | 0.5 | £94.38 | In Stock | |
| PRO1500626 | 8 | 2 | 30 | 75 | 8 | 0.5 | £44.40 | In Stock | |
| PRO1500627 | 8 | 2 | 30 | 100 | 8 | 0.8 | £49.98 | In Stock | |
| PRO1500628 | 8 | 2 | 40 | 150 | 8 | 0.8 | £94.38 | In Stock | |
| PRO1500629 | 8 | 2 | 30 | 75 | 8 | 0.8 | £44.40 | In Stock | |
| PRO1500630 | 8 | 2 | 30 | 100 | 8 | 1 | £49.98 | In Stock | |
| PRO1500631 | 8 | 2 | 40 | 150 | 8 | 1 | £94.38 | In Stock | |
| PRO1500634 | 8 | 2 | 40 | 150 | 8 | 1.5 | £111.54 | In Stock | |
| PRO1500632 | 8 | 2 | 30 | 75 | 8 | 1 | £44.40 | In Stock | |
| PRO1500633 | 8 | 2 | 30 | 100 | 8 | 1.5 | £59.70 | In Stock | |
| PRO1500636 | 8 | 2 | 30 | 100 | 8 | 2 | £59.70 | In Stock | |
| PRO1500635 | 8 | 2 | 30 | 75 | 8 | 1.5 | £52.59 | In Stock | |
| PRO1500637 | 8 | 2 | 40 | 150 | 8 | 2 | £111.54 | In Stock | |
| PRO1500638 | 8 | 2 | 30 | 75 | 8 | 2 | £52.59 | 4-6 weeks | |
| PRO1500640 | 8 | 2 | 40 | 150 | 8 | 2.5 | £132.06 | In Stock | |
| PRO1500639 | 8 | 2 | 30 | 100 | 8 | 2.5 | £71.25 | In Stock | |
| PRO1500641 | 8 | 2 | 30 | 75 | 8 | 2.5 | £62.31 | In Stock | |
| PRO1500642 | 8 | 2 | 30 | 100 | 8 | 3 | £71.25 | In Stock | |
| PRO1500644 | 8 | 2 | 30 | 75 | 8 | 3 | £52.11 | In Stock | |
| PRO1500643 | 8 | 2 | 40 | 150 | 8 | 3 | £132.06 | In Stock | |
| PRO1500645 Viewing | 10 | 2 | 40 | 100 | 10 | 0.5 | £72.00 | In Stock | |
| PRO1500647 | 10 | 2 | 40 | 100 | 10 | 0.8 | £72.00 | In Stock | |
| PRO1500646 | 10 | 2 | 50 | 150 | 10 | 0.5 | £107.43 | In Stock | |
| PRO1500648 | 10 | 2 | 50 | 150 | 10 | 0.8 | £107.43 | In Stock | |
| PRO1500649 | 10 | 2 | 40 | 100 | 10 | 1 | £72.00 | In Stock | |
| PRO1500650 | 10 | 2 | 50 | 150 | 10 | 1 | £107.43 | In Stock | |
| PRO1500651 | 10 | 2 | 40 | 100 | 10 | 1.5 | £77.22 | In Stock | |
| PRO1500654 | 10 | 2 | 50 | 150 | 10 | 2 | £114.15 | In Stock | |
| PRO1500652 | 10 | 2 | 50 | 150 | 10 | 1.5 | £114.15 | In Stock | |
| PRO1500653 | 10 | 2 | 40 | 100 | 10 | 2 | £77.22 | In Stock | |
| PRO1500655 | 10 | 2 | 40 | 100 | 10 | 2.5 | £81.30 | In Stock | |
| PRO1500656 | 10 | 2 | 50 | 150 | 10 | 2.5 | £120.51 | In Stock | |
| PRO1500657 | 10 | 2 | 40 | 100 | 10 | 3 | £81.30 | In Stock | |
| PRO1500658 | 10 | 2 | 50 | 150 | 10 | 3 | £120.51 | In Stock | |
| PRO1500660 | 10 | 2 | 50 | 150 | 10 | 3.2 | £131.31 | In Stock | |
| PRO1500662 | 12 | 2 | 50 | 150 | 12 | 0.5 | £138.03 | In Stock | |
| PRO1500659 | 10 | 2 | 40 | 100 | 10 | 3.2 | £88.41 | In Stock | |
| PRO1500661 | 12 | 2 | 45 | 100 | 12 | 0.5 | £90.30 | In Stock | |
| PRO1500663 | 12 | 2 | 45 | 100 | 12 | 0.8 | £90.30 | In Stock | |
| PRO1500664 | 12 | 2 | 50 | 150 | 12 | 0.8 | £138.03 | In Stock | |
| PRO1500665 | 12 | 2 | 45 | 100 | 12 | 1 | £90.30 | In Stock | |
| PRO1500666 | 12 | 2 | 50 | 150 | 12 | 1 | £138.03 | In Stock | |
| PRO1500668 | 12 | 2 | 50 | 150 | 12 | 1.5 | £145.86 | In Stock | |
| PRO1500667 | 12 | 2 | 45 | 100 | 12 | 1.5 | £95.88 | In Stock | |
| PRO1500669 | 12 | 2 | 45 | 100 | 12 | 2 | £95.88 | 4-6 weeks | |
| PRO1500671 | 12 | 2 | 45 | 100 | 12 | 2.5 | £101.10 | In Stock | |
| PRO1500670 | 12 | 2 | 50 | 150 | 12 | 2 | £145.86 | 4-6 weeks | |
| PRO1500674 | 12 | 2 | 50 | 150 | 12 | 3 | £154.08 | 4-6 weeks | |
| PRO1500672 | 12 | 2 | 50 | 150 | 12 | 2.5 | £154.08 | In Stock | |
| PRO1500675 | 12 | 2 | 45 | 100 | 12 | 3.2 | £101.10 | In Stock | |
| PRO1500673 | 12 | 2 | 45 | 100 | 12 | 3 | £101.10 | In Stock | |
| PRO1500676 | 12 | 2 | 50 | 150 | 12 | 3.2 | £154.08 | In Stock | |
| PRO1500677 | 16 | 2 | 70 | 150 | 16 | 0.5 | £179.68 | 4-6 weeks | |
| PRO1500678 | 16 | 2 | 70 | 150 | 16 | 1 | £179.68 | 4-6 weeks | |
| PRO1500679 | 16 | 2 | 70 | 150 | 16 | 2 | £196.78 | 4-6 weeks | |
| PRO1500681 | 16 | 2 | 70 | 150 | 16 | 3 | £215.43 | 4-6 weeks | |
| PRO1500680 | 16 | 2 | 70 | 150 | 16 | 2.5 | £196.78 | In Stock | |
| PRO1500683 | 16 | 2 | 70 | 150 | 16 | 5 | £232.53 | In Stock | |
| PRO1500682 | 16 | 2 | 70 | 150 | 16 | 4 | £232.53 | 4-6 weeks | |
| PRO1500684 | 20 | 2 | 80 | 150 | 20 | 0.5 | £309.93 | 4-6 weeks | |
| PRO1500685 | 20 | 2 | 80 | 150 | 20 | 1 | £309.93 | 4-6 weeks | |
| PRO1500686 | 20 | 2 | 80 | 150 | 20 | 2 | £338.85 | 4-6 weeks | |
| PRO1500687 | 20 | 2 | 80 | 150 | 20 | 2.5 | £338.85 | 4-6 weeks | |
| PRO1500688 | 20 | 2 | 80 | 150 | 20 | 3 | £369.93 | In Stock | |
| PRO1500689 | 20 | 2 | 80 | 150 | 20 | 4 | £397.93 | 4-6 weeks | |
| PRO1500690 | 20 | 2 | 80 | 150 | 20 | 5 | £397.93 | In Stock |
