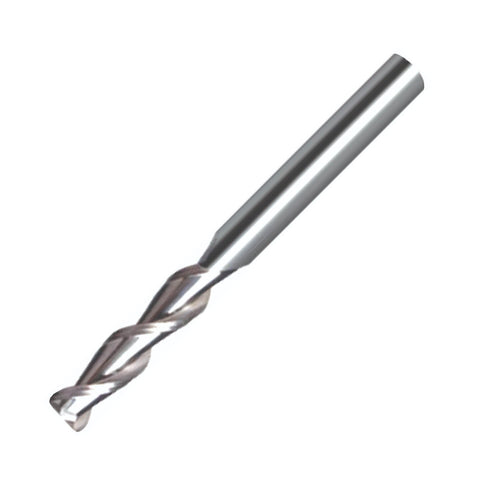

Vortex Carbide End Mill For Aluminium & Non-Ferrous - 2 Flute Long Radius Edge 45° - 20mm x 150mm x R4.0
SKU:PRO1500689
The Vortex Carbide End Mill is designed for precise aluminum and non-ferrous milling, delivering smooth contouring, slotting, and profiling with dependable durability. Crafted for CNC operators an...
Read more ↓
Material Compatibility
N
Specification
Download Cutting Data
| Cutter Diameter | 20 |
| Number of Flutes | 2 |
| Flute Length | 80 |
| Overall Length | 150 |
| Shank Diameter | 20 |
| Corner Radius | 4 |
£397.93
Prices shown ex. VAT
4–6 weeks estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Vortex Carbide End Mill is designed for precise aluminum and non-ferrous milling, delivering smooth contouring, slotting, and profiling with dependable durability. Crafted for CNC operators and workshop environments, it combines efficient cutting with reliable surface quality.
- Material: Solid carbide construction for exceptional hardness and wear resistance in aluminum and other non-ferrous metals.
- Flute Count: 2-flute design optimized for fast chip evacuation and stable cutting in soft metals.
- Edge Geometry: Long radius edge to improve corner finish and reduce edge wear during detailed profiling.
- Helix Angle: 45° helix for efficient chip removal and smoother cutting action, enhancing surface finish.
- Size: Diameter 20 mm, Overall length 150 mm, Corner radius R4.0 mm.
- Applications: Ideal for contouring, slotting, and profiling aluminum and other non-ferrous materials.
By combining a compact 2-flute design with a generous long-radius corner and a 45° helix, this end mill minimizes cutting forces, promotes efficient chip evacuation, and delivers cleaner finishes. Expect improved surface quality, longer tool life, and consistent dimensional accuracy when machining aluminum parts or other non-ferrous components, even in deeper pockets or complex profiles.
| Cutter Diameter | 20 |
| Number of Flutes | 2 |
| Flute Length | 80 |
| Overall Length | 150 |
| Shank Diameter | 20 |
| Corner Radius | 4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Vortex Carbide End Mill For Aluminium & Non-Ferrous - 2 Flute Long Radius Edge (45°) (VOR45-RALS245)
View full collection →You are viewing PRO1500689. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1500605 | 3 | 2 | 12 | 75 | 6 | 0.2 | £26.88 | 4-6 weeks | |
| PRO1500604 | 3 | 2 | 12 | 100 | 6 | 0.2 | £32.10 | In Stock | |
| PRO1500606 | 3 | 2 | 12 | 100 | 6 | 0.5 | £32.10 | 4-6 weeks | |
| PRO1500608 | 4 | 2 | 16 | 100 | 6 | 0.3 | £32.10 | In Stock | |
| PRO1500607 | 3 | 2 | 12 | 75 | 6 | 0.5 | £26.88 | In Stock | |
| PRO1500609 | 4 | 2 | 16 | 75 | 6 | 0.3 | £26.88 | In Stock | |
| PRO1500611 | 4 | 2 | 16 | 75 | 6 | 0.5 | £26.88 | In Stock | |
| PRO1500610 | 4 | 2 | 16 | 100 | 6 | 0.5 | £32.10 | 4-6 weeks | |
| PRO1500612 | 5 | 2 | 20 | 100 | 6 | 0.3 | £32.10 | In Stock | |
| PRO1500613 | 5 | 2 | 20 | 75 | 6 | 0.3 | £26.88 | In Stock | |
| PRO1500614 | 5 | 2 | 20 | 100 | 6 | 0.5 | £32.10 | In Stock | |
| PRO1500615 | 5 | 2 | 20 | 75 | 6 | 0.5 | £26.88 | 4-6 weeks | |
| PRO1500616 | 6 | 2 | 25 | 100 | 6 | 0.5 | £32.10 | In Stock | |
| PRO1500617 | 6 | 2 | 25 | 75 | 6 | 0.5 | £26.88 | In Stock | |
| PRO1500618 | 6 | 2 | 25 | 100 | 6 | 0.8 | £32.10 | In Stock | |
| PRO1500619 | 6 | 2 | 25 | 75 | 6 | 0.8 | £26.88 | In Stock | |
| PRO1500620 | 6 | 2 | 25 | 100 | 6 | 1 | £32.10 | 4-6 weeks | |
| PRO1500621 | 6 | 2 | 25 | 75 | 6 | 1 | £26.88 | 4-6 weeks | |
| PRO1500622 | 6 | 2 | 25 | 100 | 6 | 1.5 | £37.68 | In Stock | |
| PRO1500623 | 6 | 2 | 25 | 75 | 6 | 1.5 | £32.82 | 4-6 weeks | |
| PRO1500624 | 8 | 2 | 30 | 100 | 8 | 0.5 | £49.98 | 4-6 weeks | |
| PRO1500625 | 8 | 2 | 40 | 150 | 8 | 0.5 | £94.38 | In Stock | |
| PRO1500626 | 8 | 2 | 30 | 75 | 8 | 0.5 | £44.40 | In Stock | |
| PRO1500627 | 8 | 2 | 30 | 100 | 8 | 0.8 | £49.98 | In Stock | |
| PRO1500628 | 8 | 2 | 40 | 150 | 8 | 0.8 | £94.38 | In Stock | |
| PRO1500629 | 8 | 2 | 30 | 75 | 8 | 0.8 | £44.40 | In Stock | |
| PRO1500630 | 8 | 2 | 30 | 100 | 8 | 1 | £49.98 | In Stock | |
| PRO1500631 | 8 | 2 | 40 | 150 | 8 | 1 | £94.38 | In Stock | |
| PRO1500634 | 8 | 2 | 40 | 150 | 8 | 1.5 | £111.54 | In Stock | |
| PRO1500632 | 8 | 2 | 30 | 75 | 8 | 1 | £44.40 | In Stock | |
| PRO1500633 | 8 | 2 | 30 | 100 | 8 | 1.5 | £59.70 | In Stock | |
| PRO1500636 | 8 | 2 | 30 | 100 | 8 | 2 | £59.70 | In Stock | |
| PRO1500635 | 8 | 2 | 30 | 75 | 8 | 1.5 | £52.59 | In Stock | |
| PRO1500637 | 8 | 2 | 40 | 150 | 8 | 2 | £111.54 | In Stock | |
| PRO1500638 | 8 | 2 | 30 | 75 | 8 | 2 | £52.59 | 4-6 weeks | |
| PRO1500640 | 8 | 2 | 40 | 150 | 8 | 2.5 | £132.06 | In Stock | |
| PRO1500639 | 8 | 2 | 30 | 100 | 8 | 2.5 | £71.25 | In Stock | |
| PRO1500641 | 8 | 2 | 30 | 75 | 8 | 2.5 | £62.31 | In Stock | |
| PRO1500642 | 8 | 2 | 30 | 100 | 8 | 3 | £71.25 | In Stock | |
| PRO1500644 | 8 | 2 | 30 | 75 | 8 | 3 | £52.11 | In Stock | |
| PRO1500643 | 8 | 2 | 40 | 150 | 8 | 3 | £132.06 | In Stock | |
| PRO1500645 | 10 | 2 | 40 | 100 | 10 | 0.5 | £72.00 | In Stock | |
| PRO1500647 | 10 | 2 | 40 | 100 | 10 | 0.8 | £72.00 | In Stock | |
| PRO1500646 | 10 | 2 | 50 | 150 | 10 | 0.5 | £107.43 | In Stock | |
| PRO1500648 | 10 | 2 | 50 | 150 | 10 | 0.8 | £107.43 | In Stock | |
| PRO1500649 | 10 | 2 | 40 | 100 | 10 | 1 | £72.00 | In Stock | |
| PRO1500650 | 10 | 2 | 50 | 150 | 10 | 1 | £107.43 | In Stock | |
| PRO1500651 | 10 | 2 | 40 | 100 | 10 | 1.5 | £77.22 | In Stock | |
| PRO1500654 | 10 | 2 | 50 | 150 | 10 | 2 | £114.15 | In Stock | |
| PRO1500652 | 10 | 2 | 50 | 150 | 10 | 1.5 | £114.15 | In Stock | |
| PRO1500653 | 10 | 2 | 40 | 100 | 10 | 2 | £77.22 | In Stock | |
| PRO1500655 | 10 | 2 | 40 | 100 | 10 | 2.5 | £81.30 | In Stock | |
| PRO1500656 | 10 | 2 | 50 | 150 | 10 | 2.5 | £120.51 | In Stock | |
| PRO1500657 | 10 | 2 | 40 | 100 | 10 | 3 | £81.30 | In Stock | |
| PRO1500658 | 10 | 2 | 50 | 150 | 10 | 3 | £120.51 | In Stock | |
| PRO1500660 | 10 | 2 | 50 | 150 | 10 | 3.2 | £131.31 | In Stock | |
| PRO1500662 | 12 | 2 | 50 | 150 | 12 | 0.5 | £138.03 | In Stock | |
| PRO1500659 | 10 | 2 | 40 | 100 | 10 | 3.2 | £88.41 | In Stock | |
| PRO1500661 | 12 | 2 | 45 | 100 | 12 | 0.5 | £90.30 | In Stock | |
| PRO1500663 | 12 | 2 | 45 | 100 | 12 | 0.8 | £90.30 | In Stock | |
| PRO1500664 | 12 | 2 | 50 | 150 | 12 | 0.8 | £138.03 | In Stock | |
| PRO1500665 | 12 | 2 | 45 | 100 | 12 | 1 | £90.30 | In Stock | |
| PRO1500666 | 12 | 2 | 50 | 150 | 12 | 1 | £138.03 | In Stock | |
| PRO1500668 | 12 | 2 | 50 | 150 | 12 | 1.5 | £145.86 | In Stock | |
| PRO1500667 | 12 | 2 | 45 | 100 | 12 | 1.5 | £95.88 | In Stock | |
| PRO1500669 | 12 | 2 | 45 | 100 | 12 | 2 | £95.88 | 4-6 weeks | |
| PRO1500671 | 12 | 2 | 45 | 100 | 12 | 2.5 | £101.10 | In Stock | |
| PRO1500670 | 12 | 2 | 50 | 150 | 12 | 2 | £145.86 | 4-6 weeks | |
| PRO1500674 | 12 | 2 | 50 | 150 | 12 | 3 | £154.08 | 4-6 weeks | |
| PRO1500672 | 12 | 2 | 50 | 150 | 12 | 2.5 | £154.08 | In Stock | |
| PRO1500675 | 12 | 2 | 45 | 100 | 12 | 3.2 | £101.10 | In Stock | |
| PRO1500673 | 12 | 2 | 45 | 100 | 12 | 3 | £101.10 | In Stock | |
| PRO1500676 | 12 | 2 | 50 | 150 | 12 | 3.2 | £154.08 | In Stock | |
| PRO1500677 | 16 | 2 | 70 | 150 | 16 | 0.5 | £179.68 | 4-6 weeks | |
| PRO1500678 | 16 | 2 | 70 | 150 | 16 | 1 | £179.68 | 4-6 weeks | |
| PRO1500679 | 16 | 2 | 70 | 150 | 16 | 2 | £196.78 | 4-6 weeks | |
| PRO1500681 | 16 | 2 | 70 | 150 | 16 | 3 | £215.43 | 4-6 weeks | |
| PRO1500680 | 16 | 2 | 70 | 150 | 16 | 2.5 | £196.78 | In Stock | |
| PRO1500683 | 16 | 2 | 70 | 150 | 16 | 5 | £232.53 | In Stock | |
| PRO1500682 | 16 | 2 | 70 | 150 | 16 | 4 | £232.53 | 4-6 weeks | |
| PRO1500684 | 20 | 2 | 80 | 150 | 20 | 0.5 | £309.93 | 4-6 weeks | |
| PRO1500685 | 20 | 2 | 80 | 150 | 20 | 1 | £309.93 | 4-6 weeks | |
| PRO1500686 | 20 | 2 | 80 | 150 | 20 | 2 | £338.85 | 4-6 weeks | |
| PRO1500687 | 20 | 2 | 80 | 150 | 20 | 2.5 | £338.85 | 4-6 weeks | |
| PRO1500688 | 20 | 2 | 80 | 150 | 20 | 3 | £369.93 | In Stock | |
| PRO1500689 Viewing | 20 | 2 | 80 | 150 | 20 | 4 | £397.93 | 4-6 weeks | |
| PRO1500690 | 20 | 2 | 80 | 150 | 20 | 5 | £397.93 | In Stock |
