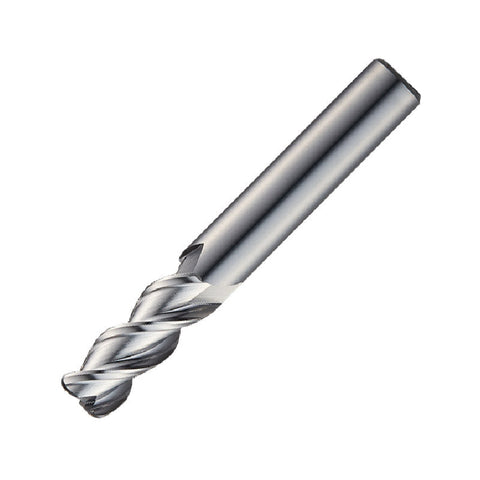

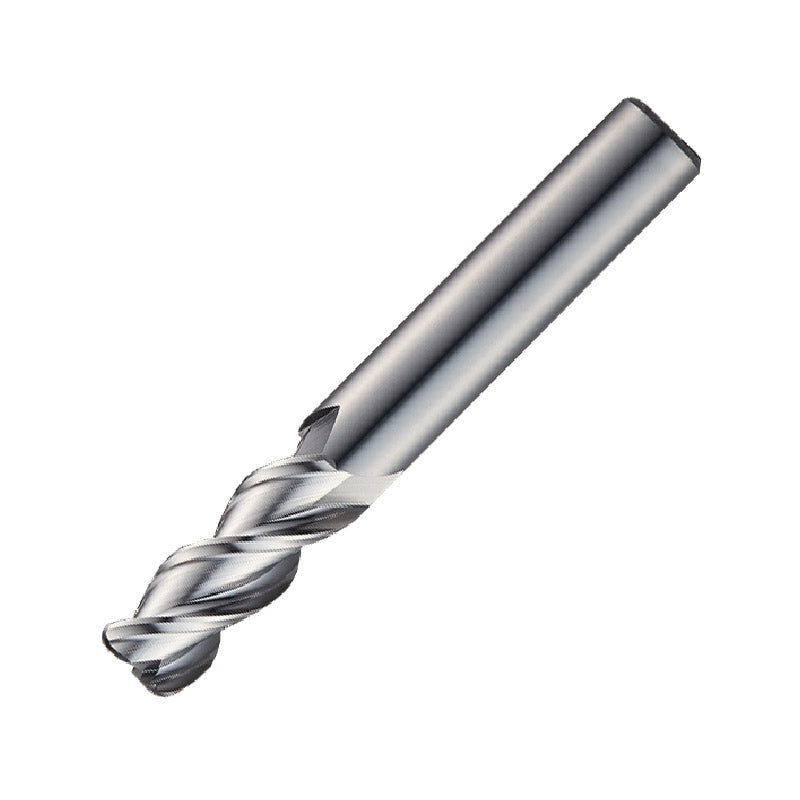

Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix - 10mm x R0.5

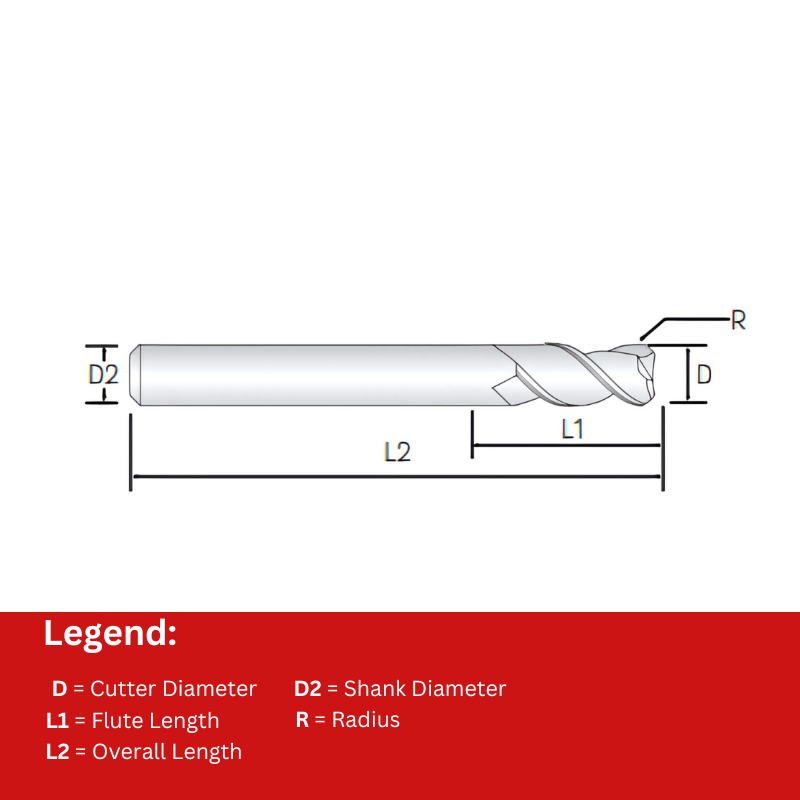

| Cutter Diameter | 10 |
| Number of Flutes | 3 |
| Flute Length | 25 |
| Overall Length | 70 |
| Shank Diameter | 10 |
| Corner Radius | 0.5 |
Learn more about Klarna
Widin's Carbide Corner Radius End Mill is a precision cutting tool designed for aluminum and non-ferrous metals. Built for machinists who value clean contours and reliable performance, it combines a 3-flute body with a 45° helix for smooth, efficient cuts. It features a 10 mm diameter with a 0.5 mm corner radius (R0.5) to enable gentle transitions and durable edge control.
- Diameter: 10 mm
- Corner Radius: R0.5 (0.5 mm) for smooth contouring and reduced edge chipping
- Flutes: 3-flute design for balanced rigidity and chip clearance
- Helix Angle: 45° for efficient chip evacuation and smoother cutting
- Material: Carbide construction for high hardness, wear resistance, and long tool life
- Material Suitability: Optimized for aluminium and non-ferrous alloys
- Chip Evacuation: Flute geometry supports effective swarf removal at typical feeds
The tool is engineered to deliver precise pockets, clean fillets, and consistent surface finishes in aluminum and non-ferrous workpieces. The corner radius helps reduce chipping on delicate edges and enables reliable contouring, while the carbide composition provides durability across extended milling cycles. The 45° helix and 3-flute configuration strike a practical balance between material removal, finish quality, and rigidity, making it suitable for both prototyping and production milling of lightweight parts, enclosures, and components in aluminum.
| Cutter Diameter | 10 |
| Number of Flutes | 3 |
| Flute Length | 25 |
| Overall Length | 70 |
| Shank Diameter | 10 |
| Corner Radius | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix (WAR303)
View full collection →You are viewing AWR31310005. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| AWR31306005 | 6 | 3 | 15 | 50 | 6 | 0.5 | £37.03 | 5 days | |
| AWR31306010 | 6 | 3 | 15 | 50 | 6 | 1 | £37.03 | 5 days | |
| AWR31306015 | 6 | 3 | 15 | 50 | 6 | 1.5 | £16.29 | In Stock | |
| AWR31306020 | 6 | 3 | 15 | 50 | 6 | 2 | £37.03 | 5 days | |
| AWR31308005 | 8 | 3 | 20 | 60 | 8 | 0.5 | £23.53 | In Stock | |
| AWR31308010 | 8 | 3 | 20 | 60 | 8 | 1 | £53.48 | 5 days | |
| AWR31308015 | 8 | 3 | 20 | 60 | 8 | 1.5 | £53.48 | 5 days | |
| AWR31308020 | 8 | 3 | 20 | 60 | 8 | 2 | £53.48 | 5 days | |
| AWR31310005 Viewing | 10 | 3 | 25 | 70 | 10 | 0.5 | £73.83 | 5 days | |
| AWR31310010 | 10 | 3 | 25 | 70 | 10 | 1 | £73.83 | 5 days | |
| AWR31310015 | 10 | 3 | 25 | 70 | 10 | 1.5 | £32.48 | In Stock | |
| AWR31310020 | 10 | 3 | 25 | 70 | 10 | 2 | £73.83 | 5 days | |
| AWR31310030 | 10 | 3 | 25 | 70 | 10 | 3 | £32.48 | In Stock | |
| AWR31310040 | 10 | 3 | 25 | 70 | 10 | 4 | £32.48 | In Stock | |
| AWR31312010 | 12 | 3 | 30 | 75 | 12 | 1 | £42.01 | In Stock | |
| AWR31312020 | 12 | 3 | 30 | 75 | 12 | 2 | £42.01 | In Stock | |
| AWR31312030 | 12 | 3 | 30 | 75 | 12 | 3 | £42.01 | In Stock | |
| AWR31312040 | 12 | 3 | 30 | 75 | 12 | 4 | £42.01 | In Stock | |
| AWR31314010S14 | 14 | 3 | 35 | 80 | 14 | 1 | £194.67 | 5 days | |
| AWR31314020S14 | 14 | 3 | 35 | 80 | 14 | 2 | £194.67 | 5 days | |
| AWR31314030S14 | 14 | 3 | 35 | 80 | 14 | 3 | £194.67 | 5 days | |
| AWR31314040S14 | 14 | 3 | 35 | 80 | 14 | 4 | £194.67 | 5 days | |
| AWR31314050S14 | 14 | 3 | 35 | 80 | 14 | 5 | £194.67 | 5 days | |
| AWR31316010 | 16 | 3 | 40 | 90 | 16 | 1 | £102.42 | In Stock | |
| AWR31316020 | 16 | 3 | 40 | 90 | 16 | 2 | £102.42 | In Stock | |
| AWR31316030 | 16 | 3 | 40 | 90 | 16 | 3 | £102.42 | In Stock | |
| AWR31316040 | 16 | 3 | 40 | 90 | 16 | 4 | £232.79 | 5 days | |
| AWR31316050 | 16 | 3 | 40 | 90 | 16 | 5 | £232.79 | 5 days | |
| AWR31320010 | 20 | 3 | 45 | 100 | 20 | 1 | £210.06 | In Stock | |
| AWR31320020 | 20 | 3 | 45 | 100 | 20 | 2 | £210.06 | In Stock | |
| AWR31320030 | 20 | 3 | 45 | 100 | 20 | 3 | £210.06 | In Stock | |
| AWR31320040 | 20 | 3 | 45 | 100 | 20 | 4 | £210.06 | In Stock | |
| AWR31320050 | 20 | 3 | 45 | 100 | 20 | 5 | £477.40 | 5 days |
