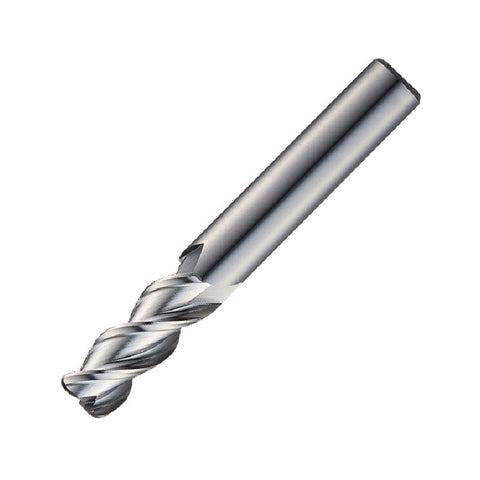

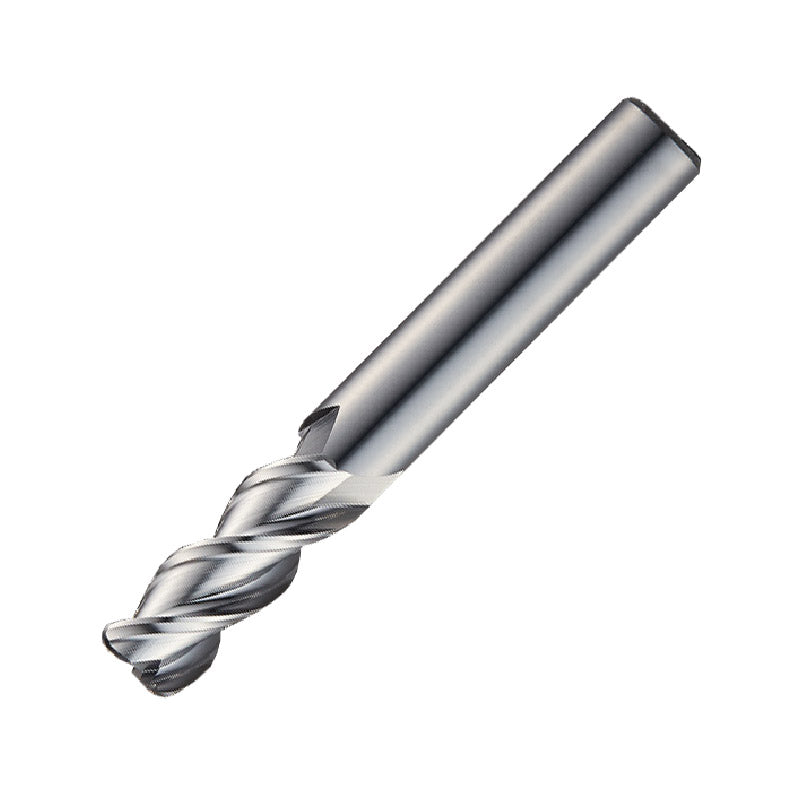

Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix - 16mm x R1.0

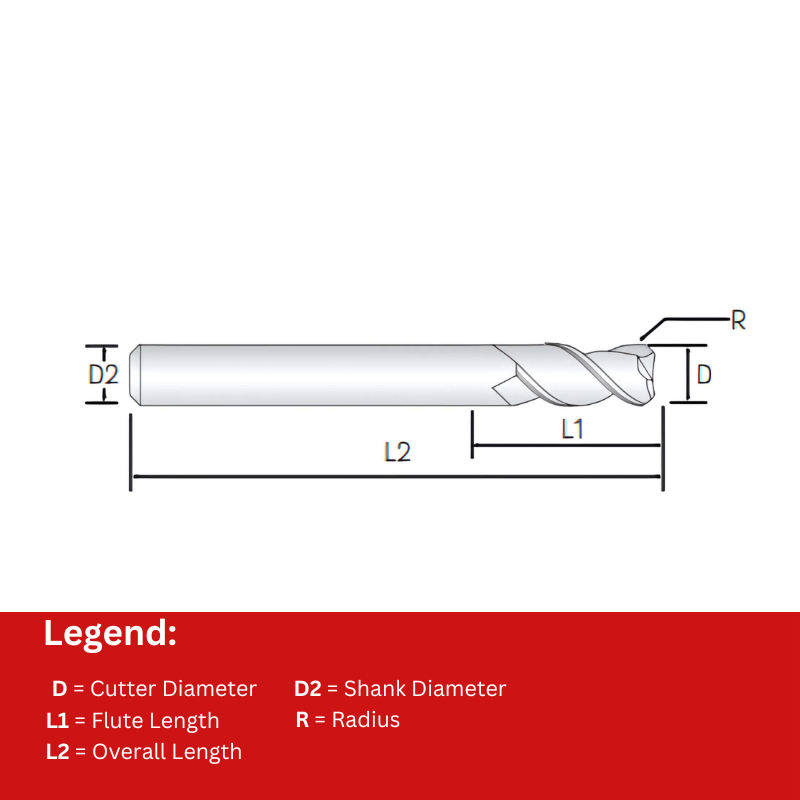

| Cutter Diameter | 16 |
| Number of Flutes | 3 |
| Flute Length | 40 |
| Overall Length | 90 |
| Shank Diameter | 16 |
| Corner Radius | 1 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix - 16mm x R1.0 is built for precision aluminum and non-ferrous milling. With a 16 mm diameter, a 1.0 mm corner radius, a 3-flute configuration, and a 45° helix, it delivers clean cuts and reliable performance across contouring and pocketing tasks.
- Diameter: 16 mm
- Corner Radius: R1.0 (1.0 mm)
- Flute Count: 3-flute design
- Helix Angle: 45°
- Material: Carbide construction
- Primary Use: Suitable for aluminium and non-ferrous metals
- Chip Evacuation: Optimized flute geometry for efficient chip removal
- Finish Quality: Improves surface finish on contours and pockets
This end mill helps you achieve accurate contours and smooth surfaces on aluminum and non-ferrous parts. The corner radius reduces edge chipping in sharp corners, supports better finish in fillets, and adds strength in corner radii. The 3-flute design balances chip clearance and rigidity, making it well suited for slotting, contouring, and pocketing. The carbide construction delivers long tool life under typical milling speeds, with improved wear resistance and consistent performance across multiple passes. The 45° helix promotes efficient chip formation and reduces built-up edge, allowing higher feed rates and cleaner cuts. The 16 mm diameter is ideal for medium-to-large pockets, while the R1.0 corner radius preserves material near corners and maintains dimensional accuracy.
| Cutter Diameter | 16 |
| Number of Flutes | 3 |
| Flute Length | 40 |
| Overall Length | 90 |
| Shank Diameter | 16 |
| Corner Radius | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix (WAR303)
View full collection →You are viewing AWR31316010. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| AWR31306005 | 6 | 3 | 15 | 50 | 6 | 0.5 | £37.03 | 5 days | |
| AWR31306010 | 6 | 3 | 15 | 50 | 6 | 1 | £37.03 | 5 days | |
| AWR31306015 | 6 | 3 | 15 | 50 | 6 | 1.5 | £16.29 | In Stock | |
| AWR31306020 | 6 | 3 | 15 | 50 | 6 | 2 | £37.03 | 5 days | |
| AWR31308005 | 8 | 3 | 20 | 60 | 8 | 0.5 | £23.53 | In Stock | |
| AWR31308010 | 8 | 3 | 20 | 60 | 8 | 1 | £53.48 | 5 days | |
| AWR31308015 | 8 | 3 | 20 | 60 | 8 | 1.5 | £53.48 | 5 days | |
| AWR31308020 | 8 | 3 | 20 | 60 | 8 | 2 | £53.48 | 5 days | |
| AWR31310005 | 10 | 3 | 25 | 70 | 10 | 0.5 | £73.83 | 5 days | |
| AWR31310010 | 10 | 3 | 25 | 70 | 10 | 1 | £73.83 | 5 days | |
| AWR31310015 | 10 | 3 | 25 | 70 | 10 | 1.5 | £32.48 | In Stock | |
| AWR31310020 | 10 | 3 | 25 | 70 | 10 | 2 | £73.83 | 5 days | |
| AWR31310030 | 10 | 3 | 25 | 70 | 10 | 3 | £32.48 | In Stock | |
| AWR31310040 | 10 | 3 | 25 | 70 | 10 | 4 | £32.48 | In Stock | |
| AWR31312010 | 12 | 3 | 30 | 75 | 12 | 1 | £42.01 | In Stock | |
| AWR31312020 | 12 | 3 | 30 | 75 | 12 | 2 | £42.01 | In Stock | |
| AWR31312030 | 12 | 3 | 30 | 75 | 12 | 3 | £42.01 | In Stock | |
| AWR31312040 | 12 | 3 | 30 | 75 | 12 | 4 | £42.01 | In Stock | |
| AWR31314010S14 | 14 | 3 | 35 | 80 | 14 | 1 | £194.67 | 5 days | |
| AWR31314020S14 | 14 | 3 | 35 | 80 | 14 | 2 | £194.67 | 5 days | |
| AWR31314030S14 | 14 | 3 | 35 | 80 | 14 | 3 | £194.67 | 5 days | |
| AWR31314040S14 | 14 | 3 | 35 | 80 | 14 | 4 | £194.67 | 5 days | |
| AWR31314050S14 | 14 | 3 | 35 | 80 | 14 | 5 | £194.67 | 5 days | |
| AWR31316010 Viewing | 16 | 3 | 40 | 90 | 16 | 1 | £102.42 | In Stock | |
| AWR31316020 | 16 | 3 | 40 | 90 | 16 | 2 | £102.42 | In Stock | |
| AWR31316030 | 16 | 3 | 40 | 90 | 16 | 3 | £102.42 | In Stock | |
| AWR31316040 | 16 | 3 | 40 | 90 | 16 | 4 | £232.79 | 5 days | |
| AWR31316050 | 16 | 3 | 40 | 90 | 16 | 5 | £232.79 | 5 days | |
| AWR31320010 | 20 | 3 | 45 | 100 | 20 | 1 | £210.06 | In Stock | |
| AWR31320020 | 20 | 3 | 45 | 100 | 20 | 2 | £210.06 | In Stock | |
| AWR31320030 | 20 | 3 | 45 | 100 | 20 | 3 | £210.06 | In Stock | |
| AWR31320040 | 20 | 3 | 45 | 100 | 20 | 4 | £210.06 | In Stock | |
| AWR31320050 | 20 | 3 | 45 | 100 | 20 | 5 | £477.40 | 5 days |
