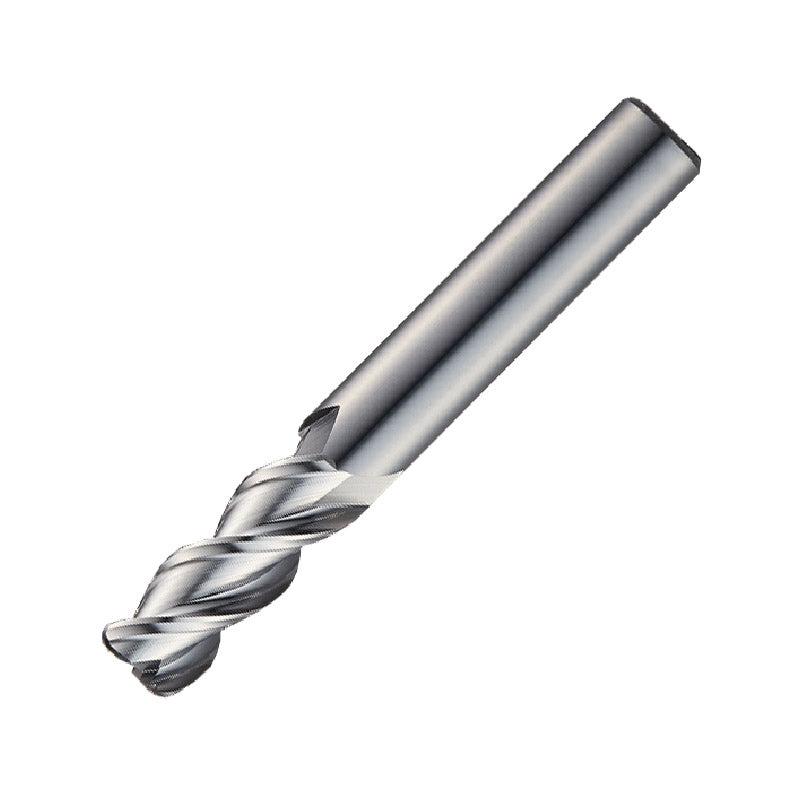

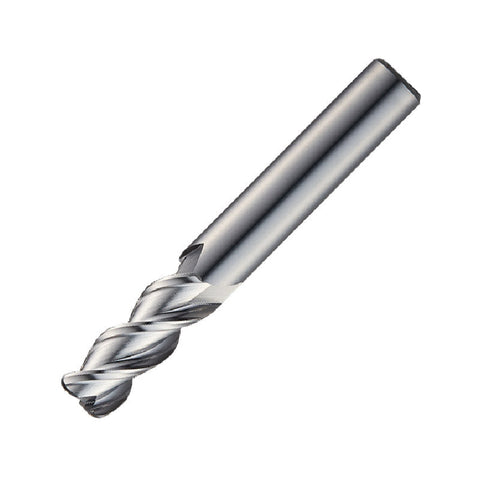

Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix - 20mm x R4.0

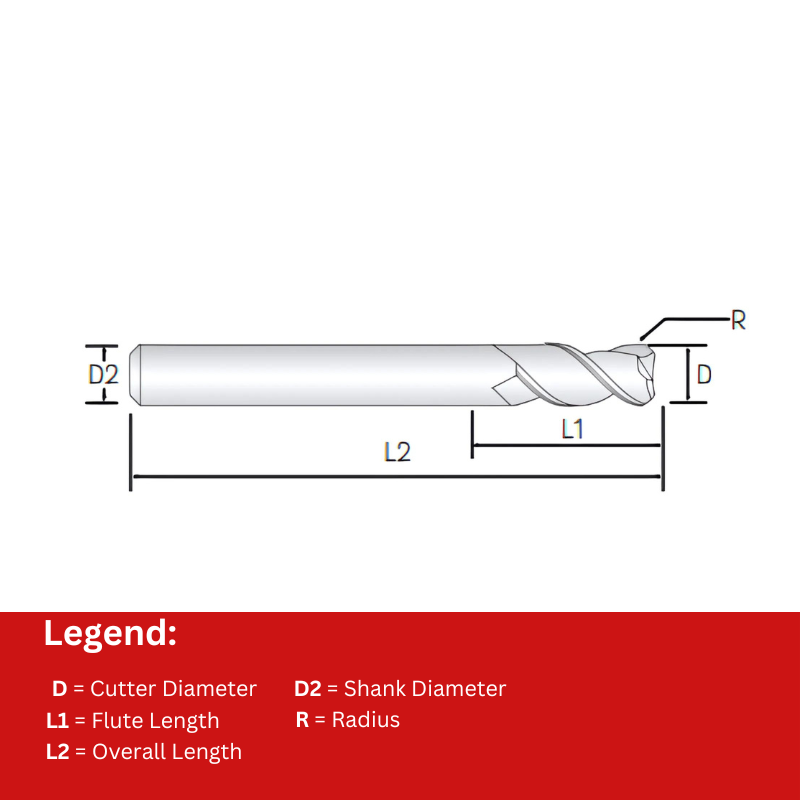

| Cutter Diameter | 20 |
| Number of Flutes | 3 |
| Flute Length | 45 |
| Overall Length | 100 |
| Shank Diameter | 20 |
| Corner Radius | 4 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for aluminum and non-ferrous metals. With a 20 mm diameter, 4.0 mm corner radius (R4.0), 3 flutes, and a 45° helix, it delivers clean contours and reliable performance on challenging profiles.
- Diameter: 20 mm
- Corner Radius: R4.0 (4.0 mm) for smooth transitions and reduced chipping
- Flute Count: 3 flutes for balanced rigidity and effective chip control
- Helix Angle: 45° for efficient cutting in aluminum and non-ferrous alloys
- Material: Solid carbide construction for wear resistance and long tool life
- Material Compatibility: Optimized for aluminum and other non-ferrous metals
- Chip Evacuation: Flute geometry designed to evacuate chips quickly, maintaining cool cutting conditions
- Finish Quality: Delivers smooth contours and accurate edges
The combination of a 3-flute design and a 45° helix enhances cutting performance by delivering steady material removal and efficient chip evacuation. The corner radius supports smooth contouring and reduces the risk of edge chipping, while the carbide construction provides durability for repeated passes. This end mill excels in profiling, pocketing, and deburring tasks on aluminum and non-ferrous parts, helping you achieve consistent surface finishes and precise radii across jobs such as mold components, enclosures, and lightweight assemblies.
| Cutter Diameter | 20 |
| Number of Flutes | 3 |
| Flute Length | 45 |
| Overall Length | 100 |
| Shank Diameter | 20 |
| Corner Radius | 4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Aluminium & Non-Ferrous - 3 Flute 45° Helix (WAR303)
View full collection →You are viewing AWR31320040. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| AWR31306005 | 6 | 3 | 15 | 50 | 6 | 0.5 | £37.03 | 5 days | |
| AWR31306010 | 6 | 3 | 15 | 50 | 6 | 1 | £37.03 | 5 days | |
| AWR31306015 | 6 | 3 | 15 | 50 | 6 | 1.5 | £16.29 | In Stock | |
| AWR31306020 | 6 | 3 | 15 | 50 | 6 | 2 | £37.03 | 5 days | |
| AWR31308005 | 8 | 3 | 20 | 60 | 8 | 0.5 | £23.53 | In Stock | |
| AWR31308010 | 8 | 3 | 20 | 60 | 8 | 1 | £53.48 | 5 days | |
| AWR31308015 | 8 | 3 | 20 | 60 | 8 | 1.5 | £53.48 | 5 days | |
| AWR31308020 | 8 | 3 | 20 | 60 | 8 | 2 | £53.48 | 5 days | |
| AWR31310005 | 10 | 3 | 25 | 70 | 10 | 0.5 | £73.83 | 5 days | |
| AWR31310010 | 10 | 3 | 25 | 70 | 10 | 1 | £73.83 | 5 days | |
| AWR31310015 | 10 | 3 | 25 | 70 | 10 | 1.5 | £32.48 | In Stock | |
| AWR31310020 | 10 | 3 | 25 | 70 | 10 | 2 | £73.83 | 5 days | |
| AWR31310030 | 10 | 3 | 25 | 70 | 10 | 3 | £32.48 | In Stock | |
| AWR31310040 | 10 | 3 | 25 | 70 | 10 | 4 | £32.48 | In Stock | |
| AWR31312010 | 12 | 3 | 30 | 75 | 12 | 1 | £42.01 | In Stock | |
| AWR31312020 | 12 | 3 | 30 | 75 | 12 | 2 | £42.01 | In Stock | |
| AWR31312030 | 12 | 3 | 30 | 75 | 12 | 3 | £42.01 | In Stock | |
| AWR31312040 | 12 | 3 | 30 | 75 | 12 | 4 | £42.01 | In Stock | |
| AWR31314010S14 | 14 | 3 | 35 | 80 | 14 | 1 | £194.67 | 5 days | |
| AWR31314020S14 | 14 | 3 | 35 | 80 | 14 | 2 | £194.67 | 5 days | |
| AWR31314030S14 | 14 | 3 | 35 | 80 | 14 | 3 | £194.67 | 5 days | |
| AWR31314040S14 | 14 | 3 | 35 | 80 | 14 | 4 | £194.67 | 5 days | |
| AWR31314050S14 | 14 | 3 | 35 | 80 | 14 | 5 | £194.67 | 5 days | |
| AWR31316010 | 16 | 3 | 40 | 90 | 16 | 1 | £102.42 | In Stock | |
| AWR31316020 | 16 | 3 | 40 | 90 | 16 | 2 | £102.42 | In Stock | |
| AWR31316030 | 16 | 3 | 40 | 90 | 16 | 3 | £102.42 | In Stock | |
| AWR31316040 | 16 | 3 | 40 | 90 | 16 | 4 | £232.79 | 5 days | |
| AWR31316050 | 16 | 3 | 40 | 90 | 16 | 5 | £232.79 | 5 days | |
| AWR31320010 | 20 | 3 | 45 | 100 | 20 | 1 | £210.06 | In Stock | |
| AWR31320020 | 20 | 3 | 45 | 100 | 20 | 2 | £210.06 | In Stock | |
| AWR31320030 | 20 | 3 | 45 | 100 | 20 | 3 | £210.06 | In Stock | |
| AWR31320040 Viewing | 20 | 3 | 45 | 100 | 20 | 4 | £210.06 | In Stock | |
| AWR31320050 | 20 | 3 | 45 | 100 | 20 | 5 | £477.40 | 5 days |
