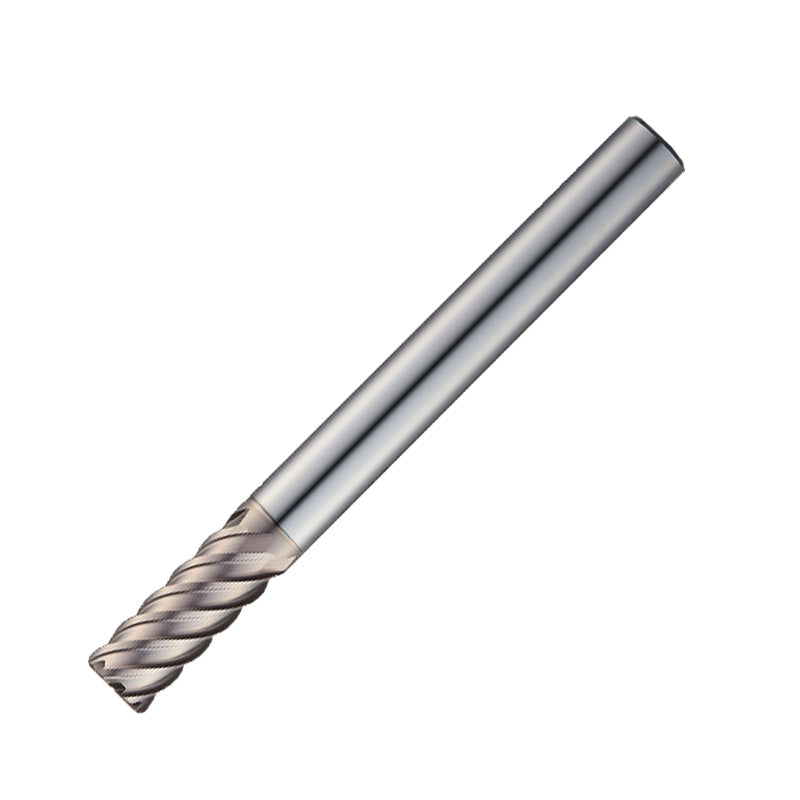

Widin Carbide Corner Radius End Mill For Mold & Die - 6 Flute 45° - 12mm x R0.5

Widin Carbide Corner Radius End Mill For Mold & Die - 6 Flute 45° - 12mm x R0.5

£93.80

UR50612005

Availability: 5 days subject to availability

With its 6 flutes, this end mill ensures smooth and precise cutting, resulting in high-quality surface finishes on the workpiece. The 45° helix angle of the tool reduces cutting load and improves processability, allowing for efficient material removal and enhanced machining performance. Additionally, the long type shank of the end mill makes it suitable for deep groove machining, providing the necessary reach and stability for complex mold and die applications.

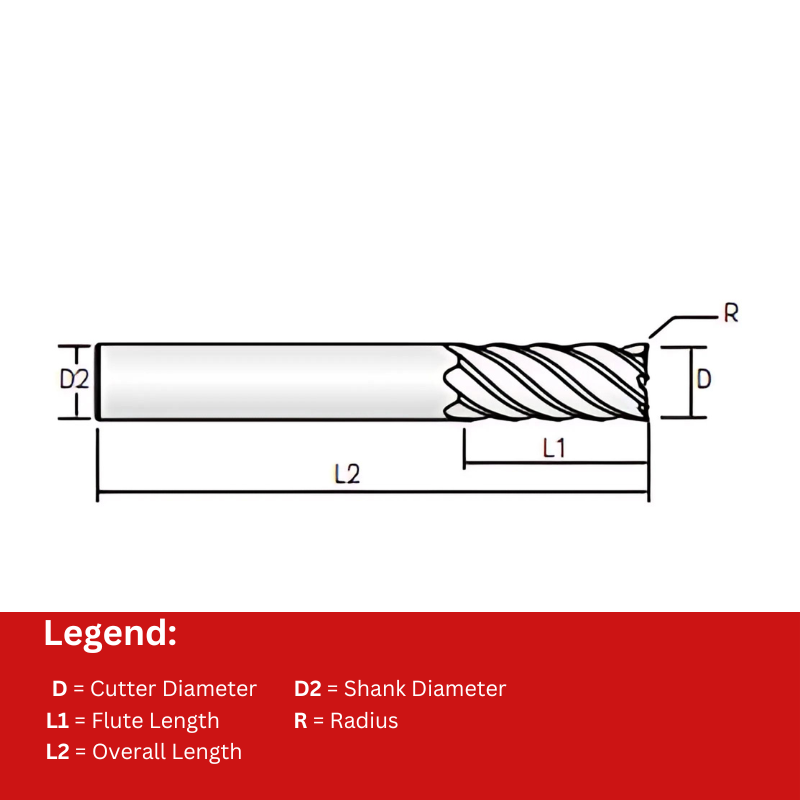

Cutter Diameter 12
Number of Flutes 6
Flute Length 30
Overall Length 110
Shank Diameter 12
Corner Radius 0.5

Steel
Cast Iron

With its 6 flutes, this end mill ensures smooth and precise cutting, resulting in high-quality surface finishes on the workpiece. The 45° helix angle of the tool reduces cutting load and improves processability, allowing for efficient material removal and enhanced machining performance. Additionally, the long type shank of the end mill makes it suitable for deep groove machining, providing the necessary reach and stability for complex mold and die applications.

Cutter Diameter 12
Number of Flutes 6
Flute Length 30
Overall Length 110
Shank Diameter 12
Corner Radius 0.5

Steel
Cast Iron
