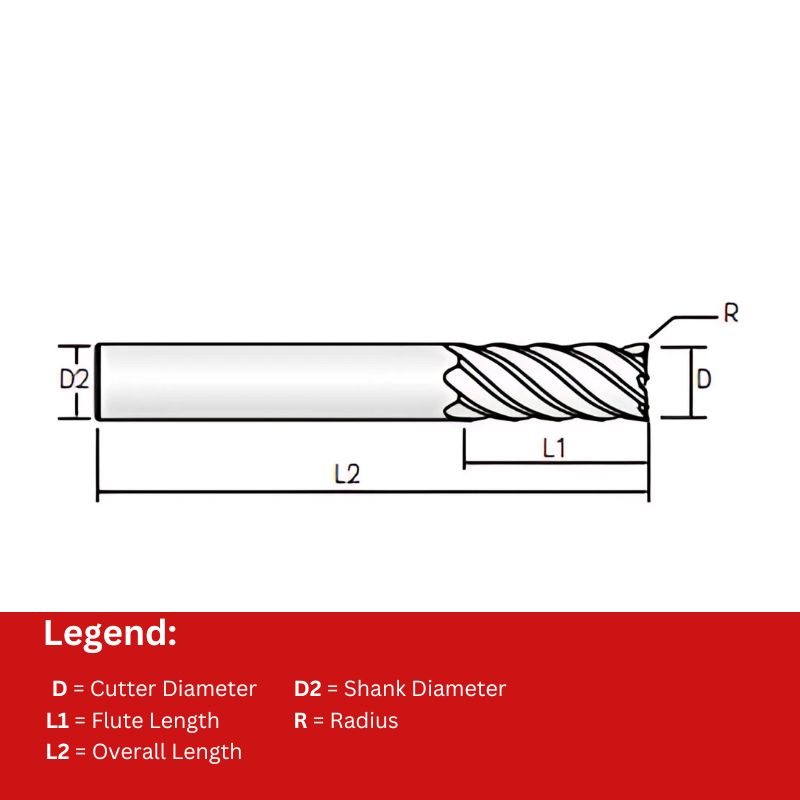

Widin Carbide Corner Radius End Mill For Mold & Die - 6 Flute 45° - 20mm x R1.5
| Cutter Diameter | 20 |
| Number of Flutes | 6 |
| Flute Length | 38 |
| Overall Length | 150 |
| Shank Diameter | 20 |
| Corner Radius | 1.5 |
Learn more about Klarna
With its 6 flutes, this end mill ensures smooth and precise cutting, resulting in high-quality surface finishes on the workpiece. The 45° helix angle of the tool reduces cutting load and improves processability, allowing for efficient material removal and enhanced machining performance. Additionally, the long type shank of the end mill makes it suitable for deep groove machining, providing the necessary reach and stability for complex mold and die applications.
| Cutter Diameter | 20 |
| Number of Flutes | 6 |
| Flute Length | 38 |
| Overall Length | 150 |
| Shank Diameter | 20 |
| Corner Radius | 1.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 6 Flute 45° (WR506)
View full collection →You are viewing UR50620015. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UR50606003 | 6 | 6 | 15 | 90 | 6 | 0.3 | £39.11 | 5 days | |
| UR50606005 | 6 | 6 | 15 | 90 | 6 | 0.5 | £17.20 | In Stock | |
| UR50606010 | 6 | 6 | 15 | 90 | 6 | 1 | £39.11 | 5 days | |
| UR50608005 | 8 | 6 | 20 | 100 | 8 | 0.5 | £66.32 | 5 days | |
| UR50608003 | 8 | 6 | 20 | 100 | 8 | 0.3 | £66.32 | 5 days | |
| UR50608010 | 8 | 6 | 20 | 100 | 8 | 1 | £29.18 | In Stock | |
| UR50610003 | 10 | 6 | 25 | 100 | 10 | 0.3 | £87.81 | 5 days | |
| UR50610005 | 10 | 6 | 25 | 100 | 10 | 0.5 | £38.63 | In Stock | |
| UR50612005 | 12 | 6 | 30 | 110 | 12 | 0.5 | £131.31 | 5 days | |
| UR50612003 | 12 | 6 | 30 | 110 | 12 | 0.3 | £131.31 | 5 days | |
| UR50610010 | 10 | 6 | 25 | 100 | 10 | 1 | £38.63 | In Stock | |
| UR50616005 | 16 | 6 | 32 | 150 | 16 | 0.5 | £389.60 | 5 days | |
| UR50612010 | 12 | 6 | 30 | 110 | 12 | 1 | £131.31 | 5 days | |
| UR50616010 | 16 | 6 | 32 | 150 | 16 | 1 | £389.60 | 5 days | |
| UR50616015 | 16 | 6 | 32 | 150 | 16 | 1.5 | £389.60 | 5 days | |
| UR50616020 | 16 | 6 | 32 | 150 | 16 | 2 | £389.60 | 5 days | |
| UR50620005 | 20 | 6 | 38 | 150 | 20 | 0.5 | £543.69 | 5 days | |
| UR50620010 | 20 | 6 | 38 | 150 | 20 | 1 | £543.69 | 5 days | |
| UR50620015 Viewing | 20 | 6 | 38 | 150 | 20 | 1.5 | £543.69 | 5 days | |
| UR50620020 | 20 | 6 | 38 | 150 | 20 | 2 | £543.69 | 5 days |
