Widin Carbide Corner Radius End Mill For Mold & Die - 6 Flute 45° - 20mm x R1.0

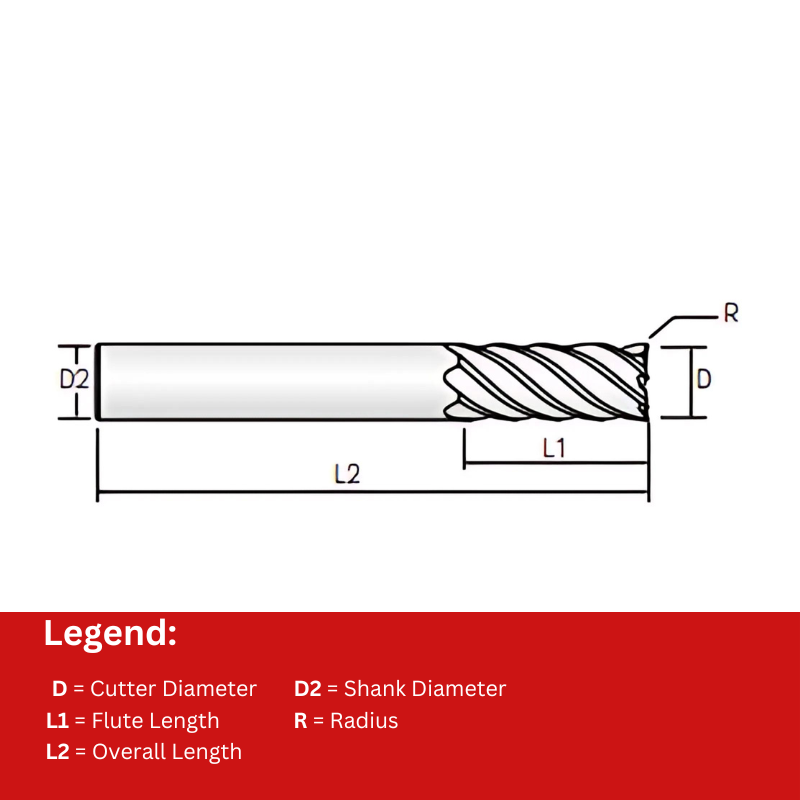

| Cutter Diameter | 20 |
| Number of Flutes | 6 |
| Flute Length | 38 |
| Overall Length | 150 |
Learn more about Klarna
Description

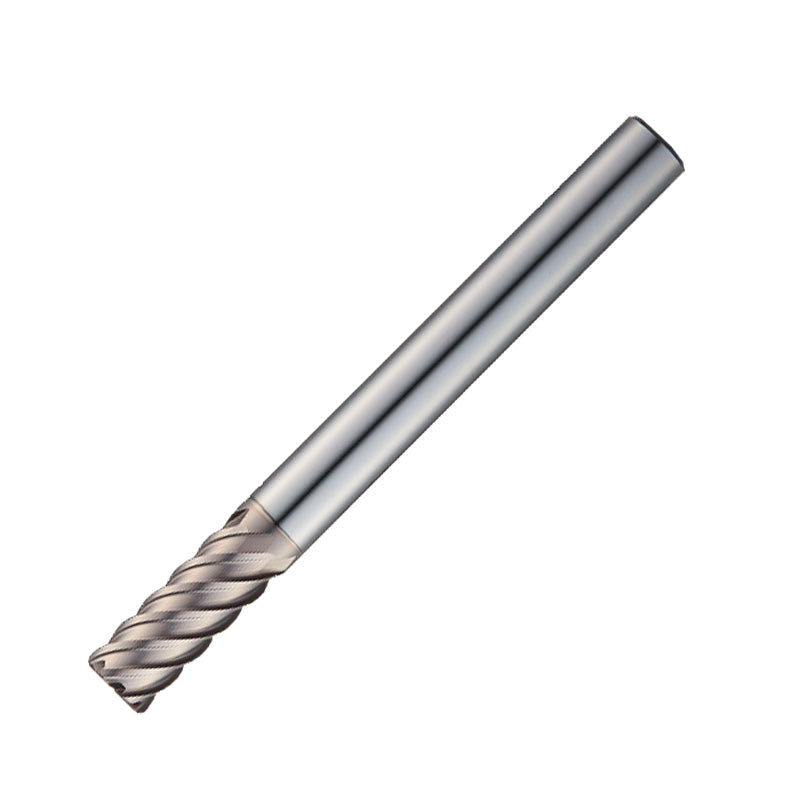

Meet the Widin Carbide Corner Radius End Mill, a 20 mm diameter carbide tool with a 1.0 mm corner radius designed for mold and die work. Featuring six flutes and a 45° helix, it delivers smooth, precise cuts and reliable surface finishes, while its long shank provides reach and stability for deep grooves and complex features.
- Six-flute design for smooth, precise cuts: The six flutes enable efficient material removal and deliver cleaner surface finishes on molds and dies, with stable engagement during high-speed cutting.
- 45° helix for reduced cutting load: The 45-degree helix angle lowers thrust and improves chip control, allowing faster material removal and smoother machining of challenging materials.
- Long shank with 1.0 mm corner radius: The extended shank provides essential reach into deep grooves, while the 1.0 mm corner radius strengthens corners and reduces chipping for reliable, repeatable results.
This end mill combines rigidity, reach, and controlled geometry to help you finish complex mold and die features with confidence. Its durable carbide construction supports consistent performance across demanding jobs, reducing downtime and enhancing overall workflow efficiency for professional shops and serious hobbyists alike.
Part Numbers
- Protool Part Number
- UR50620010
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 6 Flute 45° (WR506)
View full collection →You are viewing UR50620010. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UR50606003 | 6 | 6 | 15 | 90 | 6 | 0.3 | £38.75 | 5 days | |
| UR50606005 | 6 | 6 | 15 | 90 | 6 | 0.5 | £38.75 | In Stock | |
| UR50606010 | 6 | 6 | 15 | 90 | 6 | 1 | £38.75 | 5 days | |
| UR50608005 | 8 | 6 | 20 | 100 | 8 | 0.5 | £67.45 | 5 days | |
| UR50608003 | 8 | 6 | 20 | 100 | 8 | 0.3 | £67.45 | 5 days | |
| UR50608010 | 8 | 6 | 20 | 100 | 8 | 1 | £67.45 | In Stock | |
| UR50610003 | 10 | 6 | 25 | 100 | 10 | 0.3 | £93.20 | 5 days | |
| UR50610005 | 10 | 6 | 25 | 100 | 10 | 0.5 | £93.20 | In Stock | |
| UR50612005 | 12 | 6 | 30 | 110 | 12 | 0.5 | £145.20 | 5 days | |
| UR50612003 | 12 | 6 | 30 | 110 | 12 | 0.3 | £145.20 | 5 days | |
| UR50610010 | 10 | 6 | 25 | 100 | 10 | 1 | £93.20 | In Stock | |
| UR50616005 | 16 | 6 | 32 | 150 | 16 | 0.5 | £448.05 | 5 days | |
| UR50612010 | 12 | 6 | 30 | 110 | 12 | 1 | £145.20 | 5 days | |
| UR50616010 | 16 | 6 | 32 | 150 | 16 | 1 | £448.05 | 5 days | |
| UR50616015 | 16 | 6 | 32 | 150 | 16 | 1.5 | £448.05 | 5 days | |
| UR50616020 | 16 | 6 | 32 | 150 | 16 | 2 | £448.05 | 5 days | |
| UR50620005 | 20 | 6 | 38 | 150 | 20 | 0.5 | £625.25 | 5 days | |
| UR50620010 Viewing | 20 | 6 | 38 | 150 | 20 | 1 | £625.25 | 5 days | |
| UR50620015 | 20 | 6 | 38 | 150 | 20 | 1.5 | £625.25 | 5 days | |
| UR50620020 | 20 | 6 | 38 | 150 | 20 | 2 | £625.25 | 5 days |
