Widin Carbide Corner Radius End Mill - 2 Flute Long Neck Back Draft Type - 2mm x6mm x R0.5

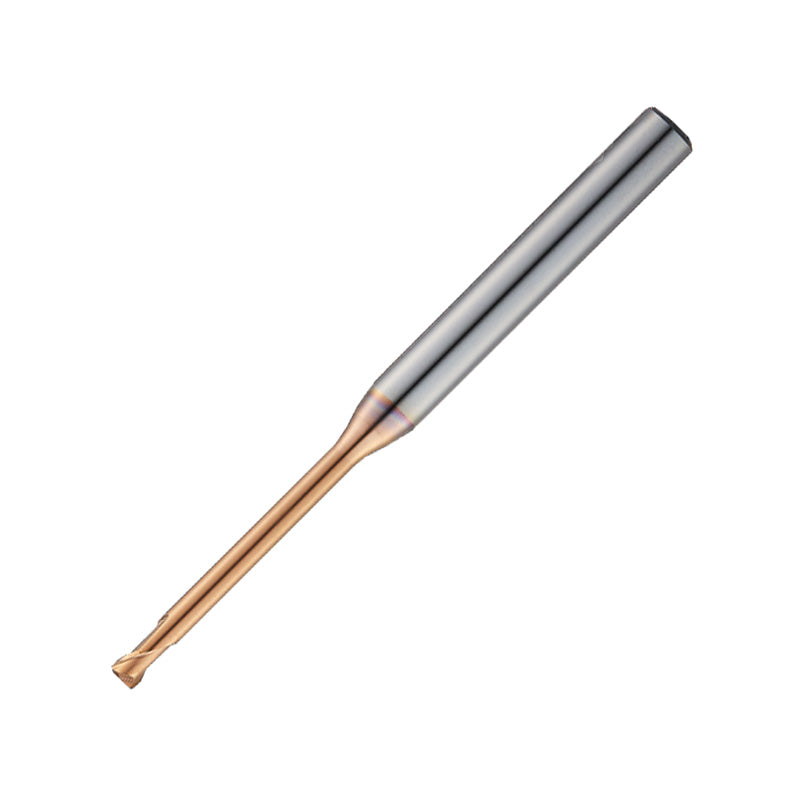

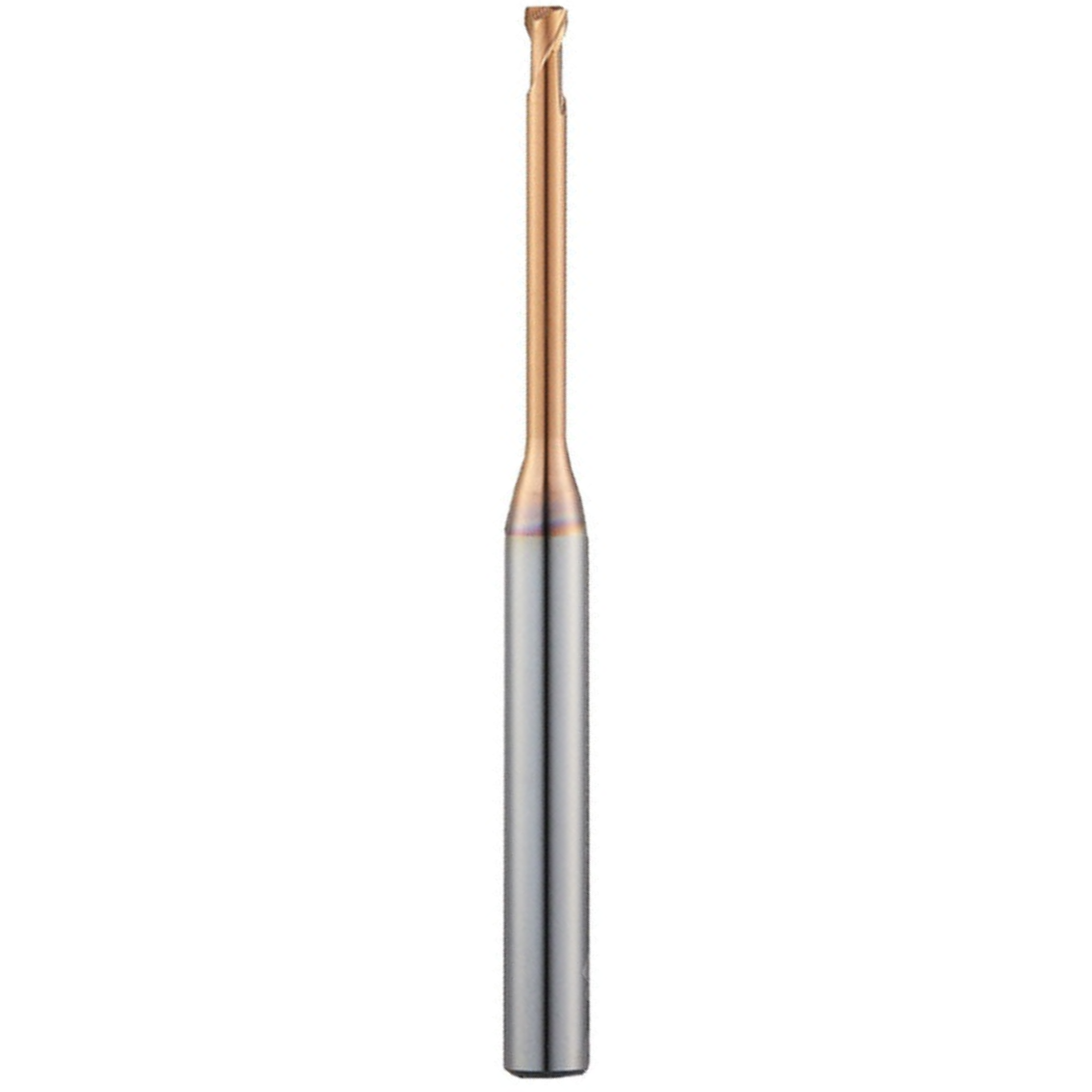

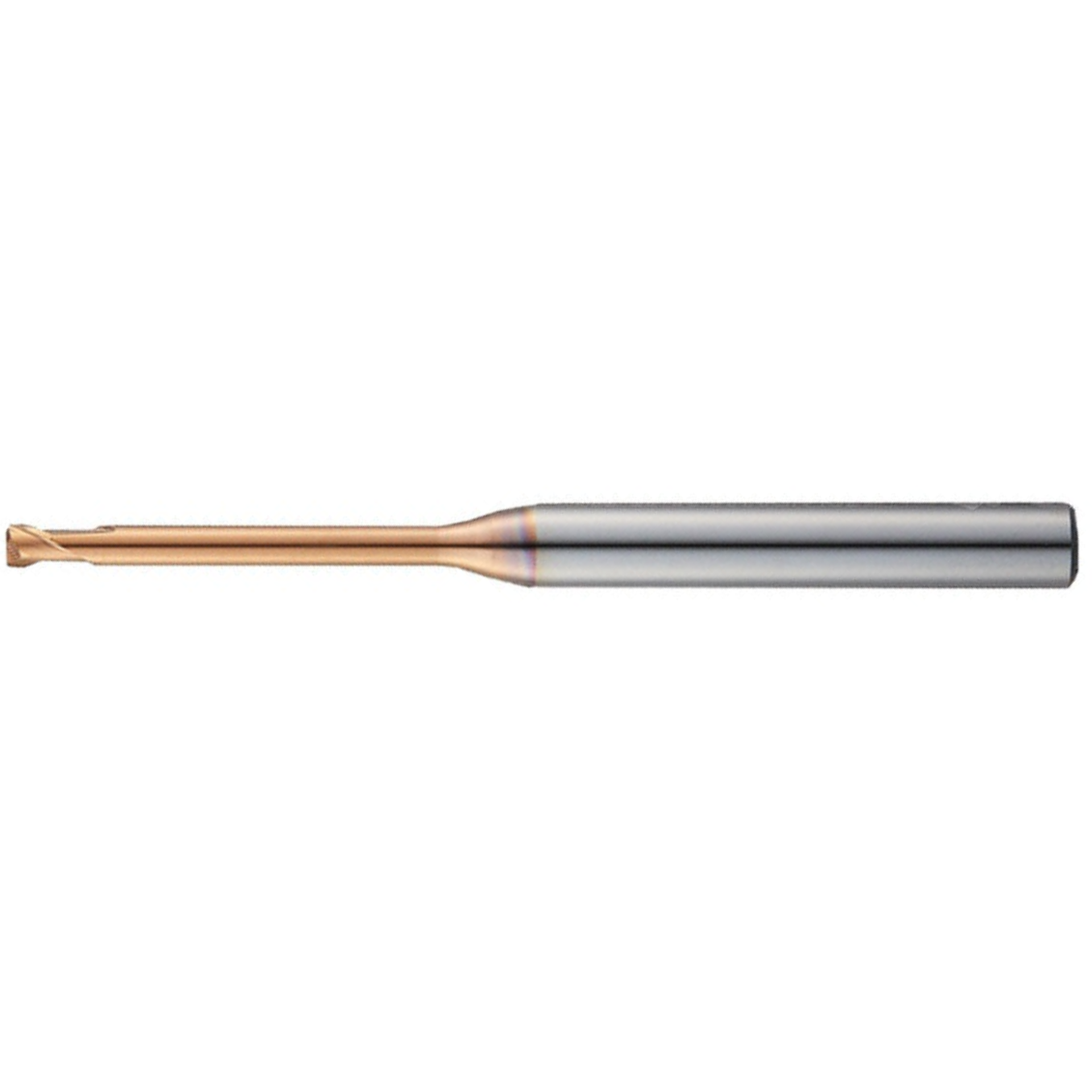

Meet the Widin Carbide Corner Radius End Mill, a precision-cutting solution designed for machinists who demand consistency in tough materials. This 2-flute, long-neck end mill combines stability and reach to tackle deep pockets, slopes, and complex contours with confidence.

• Cutting diameter: 2 mm
• Overall length / neck: 6 mm long neck for enhanced reach
• Number of flutes: 2
• Corner radius: R0.5 for smoother edges and reduced wear
• Helix angle: 30° for efficient chip evacuation
• Center cutting: Yes — capable of plunging and versatile milling
• Material: Ultra-fine grain carbide for strength and durability

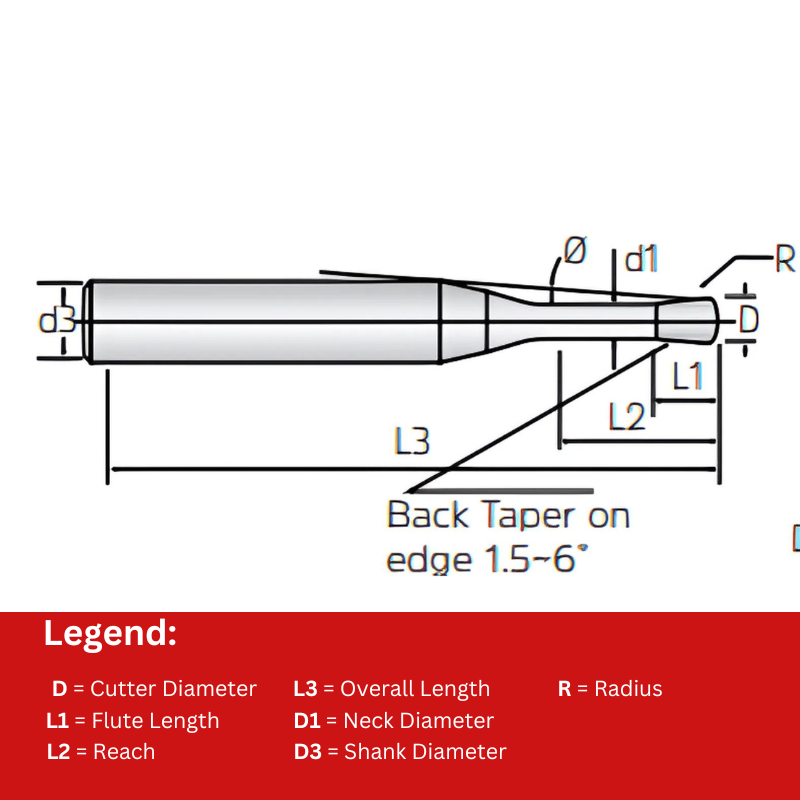

• Back draft geometry: Improves stability and minimizes chatter during cuts
• Rake-adjustable neck: Effective neck length adjustments based on rake angle for flexible setups
• Hardness capability: Suitable for machining high-hardened materials up to HRc70

This end mill is built for demanding applications, delivering precise, clean cuts in hard materials while maintaining stability in deep grooves and on sloped surfaces. The corner radius helps produce smooth transitions and extend tool life by reducing edge chipping, and the back-draft design dampens vibration for a steadier cut. With center-cut capability and a 30° helix, you’ll experience dependable performance across a range of milling tasks—from pocketing and contouring to deburring and finishing. The neck design provides the reach you need, while the rake-angle-adjustable neck adds versatility for different setups and materials.
