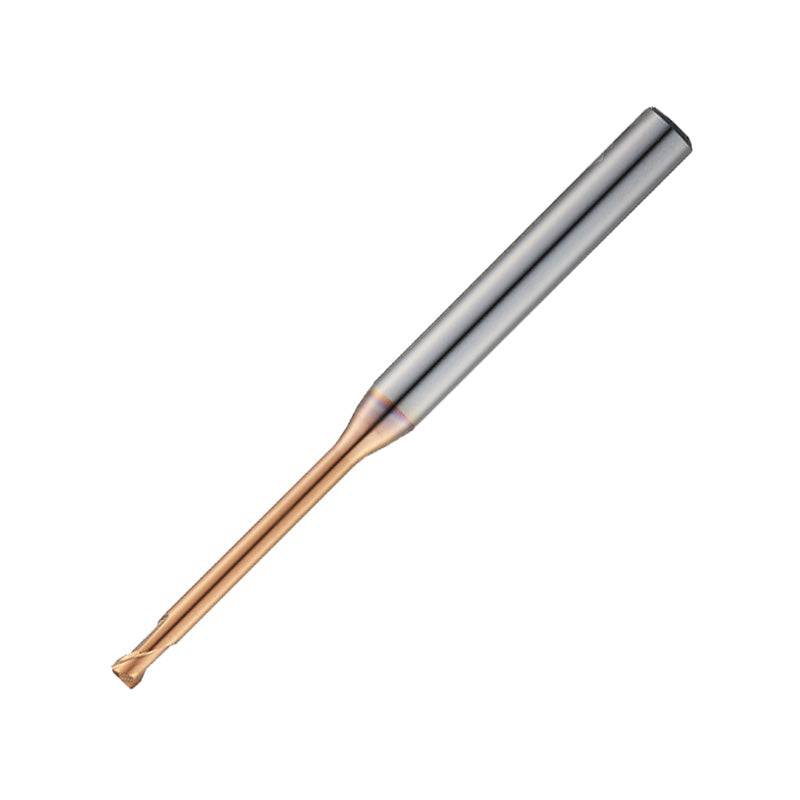

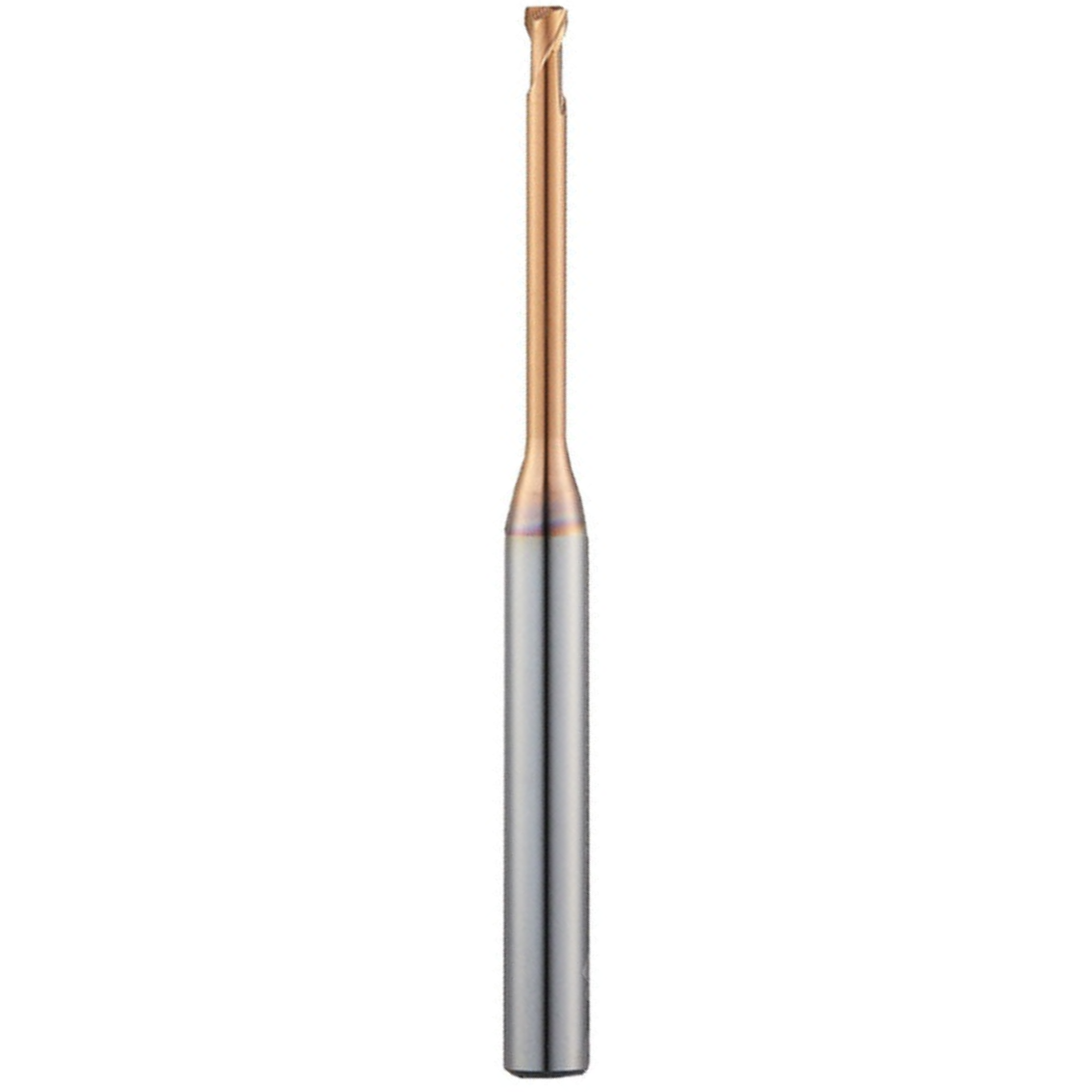

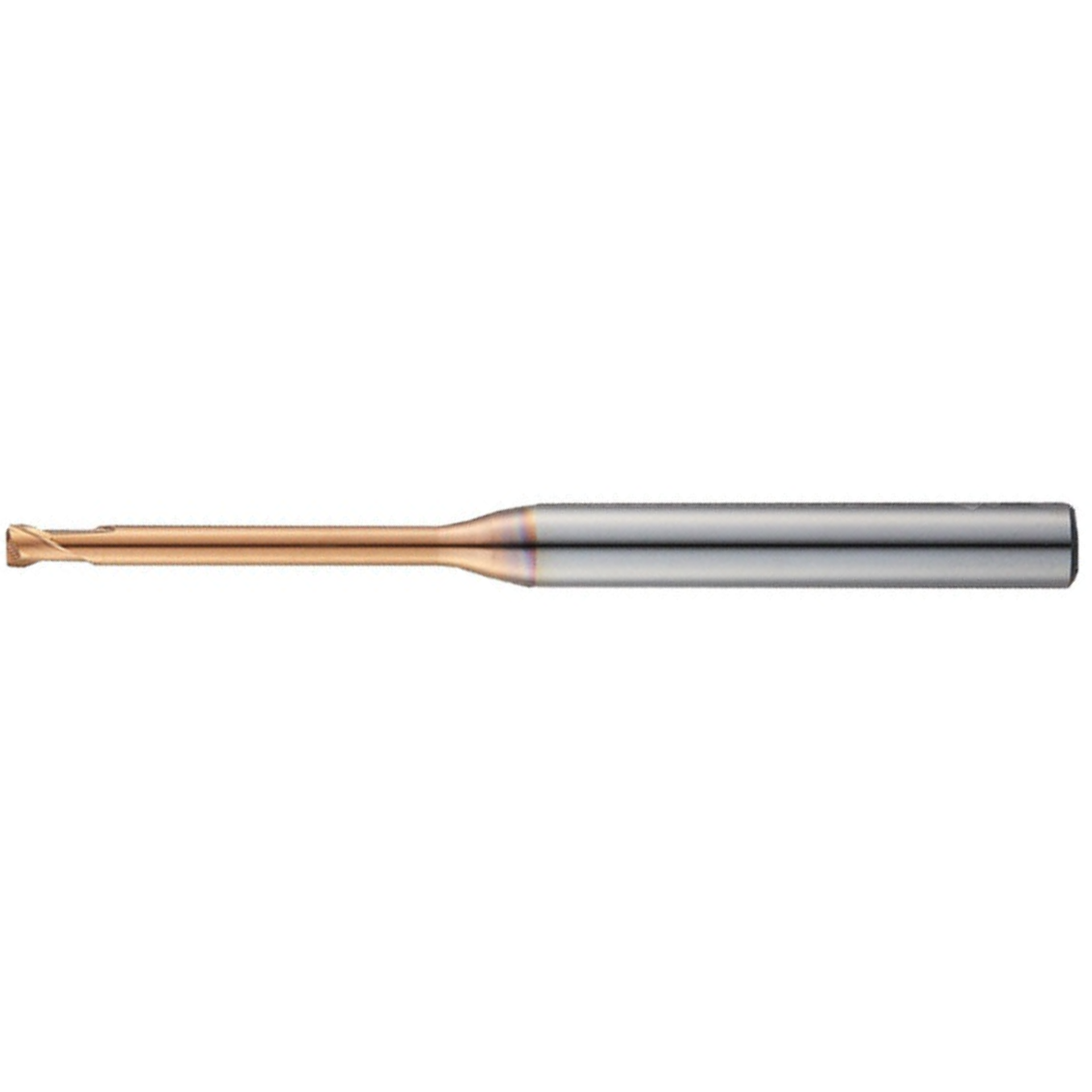

Widin Carbide Corner Radius End Mill - 2 Flute Long Neck Back Draft Type - 2mm x8mm x R0.3

Designed for precision CNC milling, the Widin Carbide Corner Radius End Mill delivers reliable radii, deep reach, and long-lasting sharpness for hard materials. It's built for machinists and shops that require consistent, high-precision finishes on challenging geometries.

• Material: Ultra-fine grain carbide for exceptional strength and wear resistance, enabling reliable performance in hard materials up to HRc70.
• Flutes & Geometry: 2 flutes with a 30° helix for efficient chip evacuation and smooth cutting action; center-cutting for plunging and versatile pocketing.
• Corner Radius: R0.3 mm to create smooth edges, reduce cutting forces, and minimize edge wear during finish passes.

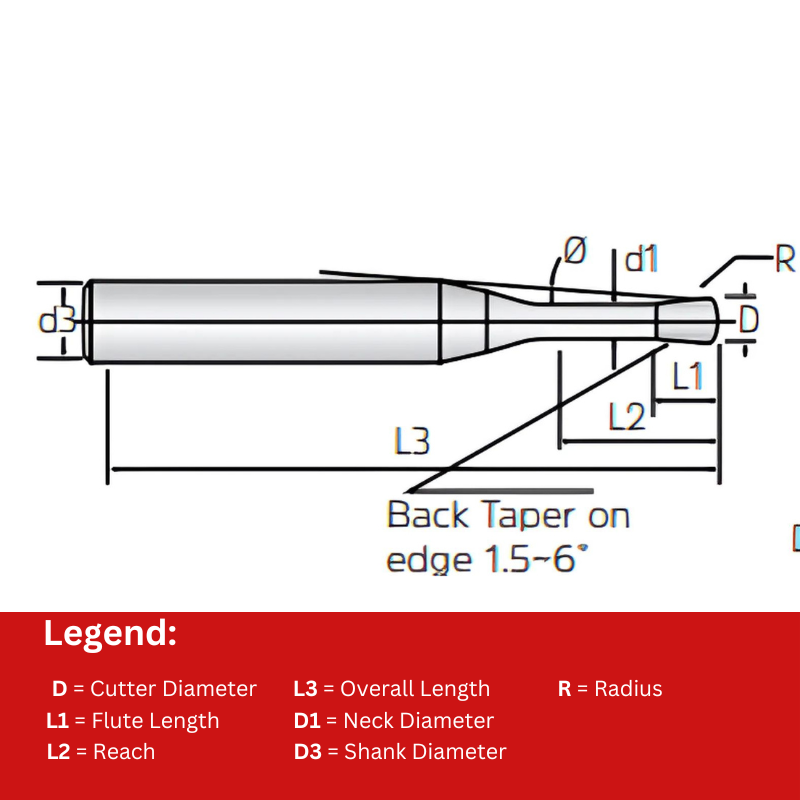

• Neck & Back Draft: Long neck and back-draft design provide enhanced stability, reach into deep pockets, and reduced vibration and chatter on sloped surfaces.
• Size: Diameter 2 mm; Length of cut 8 mm; compact cutting region suited for tight radii and precision slots.
• Versatility: Effective for radii finishing, grooves, pockets, and contouring across a range of applications in demanding materials.
• Compatibility: Designed to work with standard CNC tooling and setups, enabling easy integration into existing workflows.

This end mill is engineered to deliver predictable performance where precision matters. The combination of a small 2 mm diameter, a substantial 8 mm length of cut, and a measured corner radius ensures precise corner finishes while maintaining solid rigidity. The back-draft geometry and long neck reduce vibration during deep cuts, helping you achieve cleaner walls, accurate depths, and Consistent surface quality even on challenging contours. When working with high-hardness materials, the tool’s carbide construction and optimized geometry help sustain sharpness longer and minimize tool wear, helping you complete demanding machining tasks with confidence.
