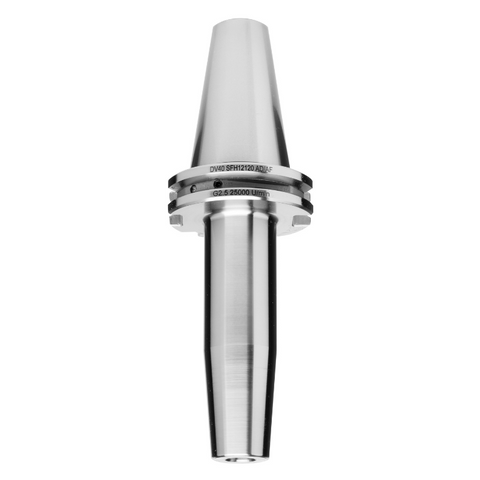

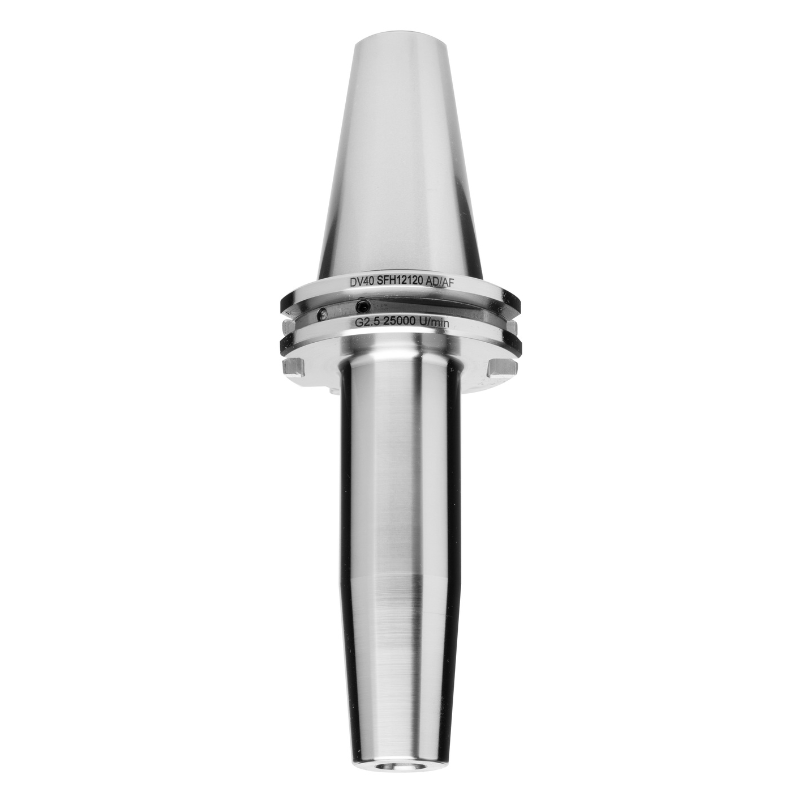

Omega Products DV40 Shrink Fit Chuck - G2.5 - 25,000 RPM - 3mm - 80mm Long

Omega Products DV40 Shrink Fit Chucks - G2.5 - 25,000 RPM


From
£80.97
View Products
Need Help?
Contact Sales

With a maximum operating speed of 25,000 RPM and a G2.5 balance rating, these chucks offer excellent stability and accuracy during demanding machining operations. The shrink fit design of these chucks ensures a tight and reliable grip on the tool, minimizing tool runout and improving overall machining performance. By utilizing heat-induced expansion and subsequent cooling, the tool is securely held within the chuck, eliminating the need for additional clamping mechanisms.


Product SKU Taper Clamping Diameter Nose Diameter D2 G Gauge Length Balance Price Stock
OM30886 DV40 3 10 20 N/A 80 G2.5@25000RPM £103.46 11
OM30887 DV40 3 10 20 N/A 120 G2.5@25000RPM £133.82 6
OM30888 DV40 3 10 20 N/A 160 G2.5@25000RPM £163.06 2
OM30824 DV40 4 15 22 N/A 80 G2.5@25000RPM £103.46 17
OM30889 DV40 4 15 22 N/A 120 G2.5@25000RPM £133.82 2
OM30890 DV40 4 15 22 N/A 160 G2.5@25000RPM £163.06 2
OM30891 DV40 5 15 22 N/A 80 G2.5@25000RPM £103.46 3
OM30892 DV40 5 15 22 N/A 120 G2.5@25000RPM £133.82 6
OM30893 DV40 5 15 22 N/A 160 G2.5@25000RPM £163.06 6
OM30825 DV40 6 21 27 M5 80 G2.5@25000RPM £80.97 42
OM30826 DV40 6 21 27 M5 120 G2.5@25000RPM £103.46 10
OM30827 DV40 6 21 27 M5 160 G2.5@25000RPM £133.82 21
OM34343 DV40 6 21 27 M5 200 G2.5@25000RPM £185.39 0
OM30828 DV40 8 21 27 M6 80 G2.5@25000RPM £80.97 31
OM30829 DV40 8 21 27 M6 120 G2.5@25000RPM £103.46 10
OM30830 DV40 8 21 27 M6 160 G2.5@25000RPM £133.82 8
OM34344 DV40 8 21 27 M6 200 G2.5@25000RPM £185.39 1
OM30831 DV40 10 24 31 M8 80 G2.5@25000RPM £80.97 22
OM30832 DV40 10 24 31 M8 120 G2.5@25000RPM £103.46 7
OM30833 DV40 10 24 31 M8 160 G2.5@25000RPM £133.82 10
OM34345 DV40 10 24 31 M8 200 G2.5@25000RPM £185.39 1
OM30834 DV40 12 24 31 M10 80 G2.5@25000RPM £80.97 33
OM30835 DV40 12 24 31 M10 120 G2.5@25000RPM £103.46 63
OM30836 DV40 12 24 31 M10 160 G2.5@25000RPM £133.82 12
OM34346 DV40 12 24 31 M10 200 G2.5@25000RPM £185.39 0
OM30894 DV40 14 27 34 M10 80 G2.5@25000RPM £80.97 8
OM30895 DV40 14 27 34 M10 120 G2.5@25000RPM £103.46 2
OM30896 DV40 14 27 34 M10 160 G2.5@25000RPM £133.82 3
OM30837 DV40 16 27 34 M12 80 G2.5@25000RPM £80.97 45
OM30838 DV40 16 27 34 M12 120 G2.5@25000RPM £103.46 7
OM30839 DV40 16 27 34 M12 160 G2.5@25000RPM £133.82 5
OM34348 DV40 16 27 34 M12 200 G2.5@25000RPM £185.39 1
OM30897 DV40 18 33 40 M12 80 G2.5@25000RPM £80.97 2
OM30898 DV40 18 33 40 M12 120 G2.5@25000RPM £103.46 2
OM30899 DV40 18 33 40 M12 160 G2.5@25000RPM £133.82 3
OM30840 DV40 20 33 40 M16 80 G2.5@25000RPM £80.97 32
OM30841 DV40 20 33 40 M16 120 G2.5@25000RPM £103.46 15
OM30842 DV40 20 33 40 M16 160 G2.5@25000RPM £133.82 3
OM34350 DV40 20 33 40 M16 200 G2.5@25000RPM £185.39 1
OM30843 DV40 25 44 53 M16 100 G2.5@25000RPM £80.97 8
OM30844 DV40 25 44 53 M16 120 G2.5@25000RPM £103.46 6
OM30845 DV40 25 44 53 M16 160 G2.5@25000RPM £133.82 4
OM30846 DV40 32 44 53 M16 100 G2.5@25000RPM £80.97 3
OM30900 DV40 32 44 53 M16 120 G2.5@25000RPM £103.46 2
OM30847 DV40 32 44 53 M16 160 G2.5@25000RPM £133.82 2
