Vortex
|
Authorised UK Distributor

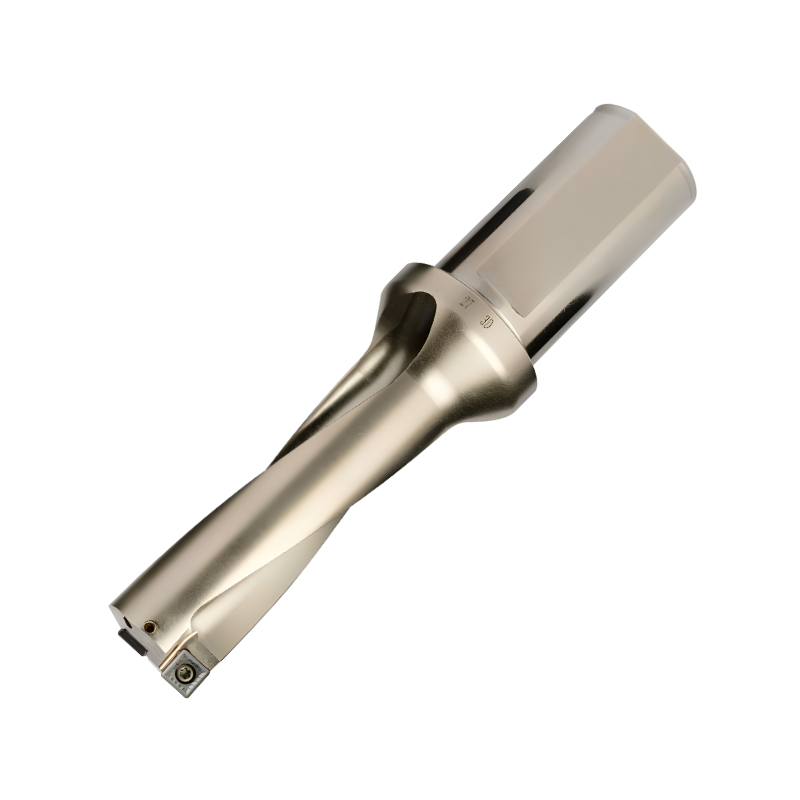

Vortex Indexable U-Drill
3xD - SPMG/SPKX
The SPMG Indexable U-Drill system is excellent for use in general purpose indexable drilling of steel, stainless steel, cast iron, exotics and non-ferrous materials. It uses the SPMG/SPKX inserts, and holders are available in 2xD, 3xD and 4xD.
Uses SPMG or SPKX ISO inserts.
3xD maximum drill depth.
With internal through coolant capabilities.
Excellent for general purpose indexable drilling.
General insert grade available for machining Steel, Stainless Steel, Cast Iron & Exotics.
Browse all 38 products
Features
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600350 | 13 | 39 | SP...0502 | 125 | 25 | M2.0X5 | T6 | £33.77 | In Stock |
|
| PRO1600351 | 14 | 42 | SP...0502 | 128 | 25 | M2.0X5 | T6 | £36.54 | 2 Weeks |
|
| PRO1600352 | 15 | 45 | SP...0502 | 131 | 25 | M2.0X5 | T6 | £38.92 | In Stock |
|
| PRO1600353 | 16 | 48 | SP...0602 | 134 | 25 | M2.0X5 | T6 | £41.31 | In Stock |
|
| PRO1600354 | 17 | 51 | SP...0602 | 137 | 25 | M2.2X5.5 | T7 | £43.63 | In Stock |
|
| PRO1600355 | 18 | 54 | SP...0602 | 140 | 25 | M2.2X5.5 | T7 | £46.87 | In Stock |
|
| PRO1600356 | 19 | 57 | SP...0602 | 143 | 25 | M2.2X5.5 | T7 | £49.83 | In Stock |
|
| PRO1600357 | 20 | 60 | SP...0602 | 146 | 25 | M2.2X5.5 | T7 | £52.41 | 2 Weeks |
|
| PRO1600358 | 21 | 63 | SP...0602 | 158 | 32 | M2.2X5.5 | T7 | £54.98 | In Stock |
|
| PRO1600359 | 22 | 66 | SP...07T3 | 161 | 32 | M2.2X5.5 | T7 | £57.59 | In Stock |
|
| PRO1600360 | 23 | 69 | SP...07T3 | 164 | 32 | M2.5X8 | T8 | £60.17 | In Stock |
|
| PRO1600361 | 24 | 72 | SP...07T3 | 167 | 32 | M2.5X8 | T8 | £62.74 | 2 Weeks |
|
| PRO1600362 | 25 | 75 | SP...07T3 | 170 | 32 | M2.5X8 | T8 | £65.32 | 2 Weeks |
|
| PRO1600363 | 26 | 78 | SP...07T3 | 173 | 32 | M2.5X8 | T8 | £67.89 | In Stock |
|
| PRO1600364 | 27 | 81 | SP...07T3 | 176 | 32 | M2.5X8 | T8 | £70.47 | In Stock |
|
| PRO1600365 | 28 | 84 | SP...0904 | 179 | 32 | M3.5X9 | T15 | £73.04 | 2 Weeks |
|
| PRO1600366 | 29 | 87 | SP...0904 | 182 | 32 | M3.5X9 | T15 | £75.65 | In Stock |
|
| PRO1600367 | 30 | 90 | SP...0904 | 185 | 32 | M3.5X9 | T15 | £78.23 | In Stock |
|
| PRO1600368 | 31 | 93 | SP...0904 | 188 | 32 | M3.5X9 | T15 | £80.80 | In Stock |
|
| PRO1600369 | 32 | 96 | SP...0904 | 191 | 32 | M3.5X9 | T15 | £83.38 | 2 Weeks |
|
| PRO1600370 | 33 | 99 | SP...0904 | 194 | 32 | M3.5X9 | T15 | £85.96 | In Stock |
|
| PRO1600371 | 34 | 102 | SP...1104 | 197 | 32 | M4.0X10 | T15 | £88.53 | 2 Weeks |
|
| PRO1600372 | 35 | 105 | SP...1104 | 200 | 32 | M4.0X10 | T15 | £91.11 | In Stock |
|
| PRO1600373 | 36 | 108 | SP...1104 | 203 | 32 | M4.0X10 | T15 | £93.71 | In Stock |
|
| PRO1600374 | 37 | 111 | SP...1104 | 206 | 32 | M4.0X10 | T15 | £96.29 | In Stock |
|
| PRO1600375 | 38 | 114 | SP...1104 | 209 | 32 | M4.0X10 | T15 | £98.87 | In Stock |
|
| PRO1600376 | 39 | 117 | SP...1104 | 212 | 32 | M4.0X10 | T15 | £101.44 | In Stock |
|
| PRO1600377 | 40 | 120 | SP...1104 | 215 | 32 | M4.0X10 | T15 | £104.02 | In Stock |
|
| PRO1600378 | 41 | 123 | SP...1104 | 218 | 32 | M4.0X10 | T15 | £106.59 | In Stock |
|
| PRO1600379 | 42 | 126 | SP...1405 | 221 | 32 | M4.0X10 | T15 | £109.17 | In Stock |
|
| PRO1600380 | 43 | 129 | SP...1405 | 239 | 40 | M4.0X10 | T15 | £111.78 | In Stock |
|
| PRO1600381 | 44 | 132 | SP...1405 | 242 | 40 | M5.0X11 | T20 | £114.35 | In Stock |
|
| PRO1600382 | 45 | 135 | SP...1405 | 245 | 40 | M5.0X11 | T20 | £116.93 | 2 Weeks |
|
| PRO1600383 | 46 | 138 | SP...1405 | 248 | 40 | M5.0X11 | T20 | £119.50 | In Stock |
|
| PRO1600384 | 47 | 141 | SP...1405 | 251 | 40 | M5.0X11 | T20 | £122.08 | In Stock |
|
| PRO1600385 | 48 | 144 | SP...1405 | 254 | 40 | M5.0X11 | T20 | £124.66 | In Stock |
|
| PRO1600386 | 49 | 147 | SP...1405 | 257 | 40 | M5.0X11 | T20 | £127.23 | 2 Weeks |
|
| PRO1600387 | 50 | 150 | SP...1405 | 260 | 40 | M5.0X11 | T20 | £129.84 | In Stock |
|
No products match your filters.
