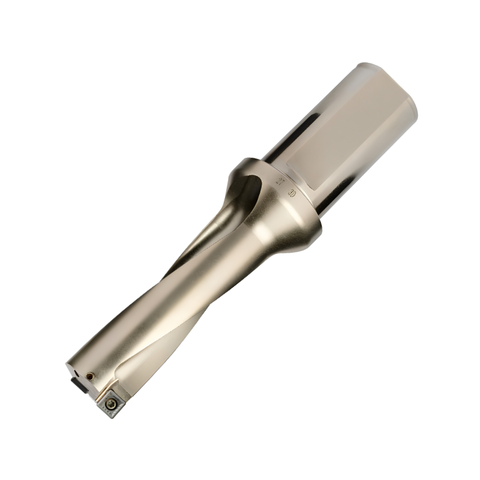

Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 33mm

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 33mm

Name: Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 33mm
Brand: Vortex
SKU: PRO1600370
Price: 85.96 GBP
Availability: InStock

SKU:PRO1600370

The Vortex Indexable U-Drill is a reliable general-purpose drilling solution designed for steel, stainless steel, cast iron, exotics, and non-ferrous materials. It uses SPMG/SPKX ISO inserts and ... Read more ↓

Specification

Diameter	33
Flute Length	99
Insert	SP...0904
Overall Length	194
Shank Size	32
Screw	M3.5X9

View all specifications ↓

£85.96

Prices shown ex. VAT

In Stock— only 1 left

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Inserts compatibility: Uses SPMG or SPKX ISO inserts for versatile material machining.
Depth capability: 3xD maximum drill depth for deeper holes in a single setup.
Through-coolant: Internal through coolant capabilities aid chip evacuation and edge life.
Material range: Suitable for general purpose indexable drilling in Steel, Stainless Steel, Cast Iron & Exotics.
Holder options: Available with 2xD, 3xD and 4xD holders to match depth requirements.

Designed to deliver consistent hole quality across a range of materials, this indexable U-Drill minimizes tool changes with interchangeable inserts and flexible depth options. The through-coolant capability helps maintain cutting efficiency and insert life, making it suitable for everyday drilling workloads in varied applications.

Diameter	33
Flute Length	99
Insert	SP...0904
Overall Length	194
Shank Size	32
Screw	M3.5X9
Wrench	T15

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Vortex Indexable U-Drill - 3xD - SPMG/SPKX

View full collection →

You are viewing PRO1600370. Click any other SKU to view its full details.

Product SKU	Diameter	Flute Length	Insert	Overall Length	Shank Size	Screw	Wrench	Price	Stock

PRO1600350	13	39	SP...0502	125	25	M2.0X5	T6	£33.77	In Stock
PRO1600351	14	42	SP...0502	128	25	M2.0X5	T6	£36.54	4-6 weeks
PRO1600352	15	45	SP...0502	131	25	M2.0X5	T6	£38.92	In Stock
PRO1600353	16	48	SP...0602	134	25	M2.0X5	T6	£41.31	In Stock
PRO1600354	17	51	SP...0602	137	25	M2.2X5.5	T7	£43.63	In Stock
PRO1600355	18	54	SP...0602	140	25	M2.2X5.5	T7	£46.87	In Stock
PRO1600356	19	57	SP...0602	143	25	M2.2X5.5	T7	£49.83	In Stock
PRO1600357	20	60	SP...0602	146	25	M2.2X5.5	T7	£52.41	4-6 weeks
PRO1600358	21	63	SP...0602	158	32	M2.2X5.5	T7	£54.98	In Stock
PRO1600359	22	66	SP...07T3	161	32	M2.2X5.5	T7	£57.59	In Stock
PRO1600360	23	69	SP...07T3	164	32	M2.5X8	T8	£60.17	In Stock
PRO1600361	24	72	SP...07T3	167	32	M2.5X8	T8	£62.74	4-6 weeks
PRO1600362	25	75	SP...07T3	170	32	M2.5X8	T8	£65.32	4-6 weeks
PRO1600363	26	78	SP...07T3	173	32	M2.5X8	T8	£67.89	In Stock
PRO1600364	27	81	SP...07T3	176	32	M2.5X8	T8	£70.47	In Stock
PRO1600365	28	84	SP...0904	179	32	M3.5X9	T15	£73.04	4-6 weeks
PRO1600366	29	87	SP...0904	182	32	M3.5X9	T15	£75.65	In Stock
PRO1600367	30	90	SP...0904	185	32	M3.5X9	T15	£78.23	In Stock
PRO1600368	31	93	SP...0904	188	32	M3.5X9	T15	£80.80	In Stock
PRO1600369	32	96	SP...0904	191	32	M3.5X9	T15	£83.38	4-6 weeks
PRO1600370 Viewing	33	99	SP...0904	194	32	M3.5X9	T15	£85.96	In Stock
PRO1600371	34	102	SP...1104	197	32	M4.0X10	T15	£88.53	4-6 weeks
PRO1600372	35	105	SP...1104	200	32	M4.0X10	T15	£91.11	In Stock
PRO1600373	36	108	SP...1104	203	32	M4.0X10	T15	£93.71	In Stock
PRO1600374	37	111	SP...1104	206	32	M4.0X10	T15	£96.29	In Stock
PRO1600375	38	114	SP...1104	209	32	M4.0X10	T15	£98.87	In Stock
PRO1600376	39	117	SP...1104	212	32	M4.0X10	T15	£101.44	In Stock
PRO1600377	40	120	SP...1104	215	32	M4.0X10	T15	£104.02	In Stock
PRO1600378	41	123	SP...1104	218	32	M4.0X10	T15	£106.59	In Stock
PRO1600379	42	126	SP...1405	221	32	M4.0X10	T15	£109.17	In Stock
PRO1600380	43	129	SP...1405	239	40	M4.0X10	T15	£111.78	In Stock
PRO1600381	44	132	SP...1405	242	40	M5.0X11	T20	£114.35	In Stock
PRO1600382	45	135	SP...1405	245	40	M5.0X11	T20	£116.93	4-6 weeks
PRO1600383	46	138	SP...1405	248	40	M5.0X11	T20	£119.50	In Stock
PRO1600384	47	141	SP...1405	251	40	M5.0X11	T20	£122.08	In Stock
PRO1600385	48	144	SP...1405	254	40	M5.0X11	T20	£124.66	In Stock
PRO1600386	49	147	SP...1405	257	40	M5.0X11	T20	£127.23	4-6 weeks
PRO1600387	50	150	SP...1405	260	40	M5.0X11	T20	£129.84	In Stock
