Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 42mm

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 42mm

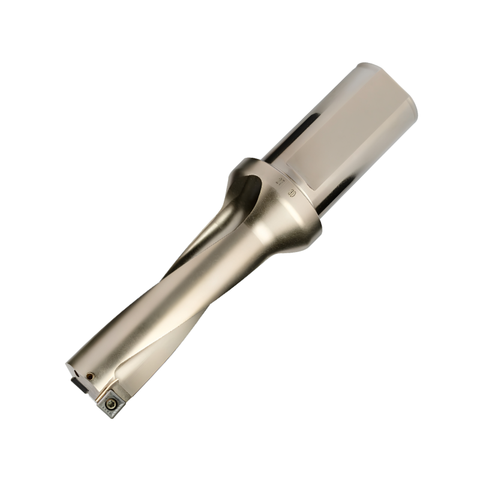

Name: Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 42mm
Brand: Vortex
SKU: PRO1600379
Price: 109.17 GBP
Availability: InStock

SKU:PRO1600379

The Vortex Indexable U-Drill is a general‑purpose drilling solution designed for steel, stainless steel, cast iron, exotic alloys, and non‑ferrous materials. Built around the SPMG/SPKX insert syst... Read more ↓

Specification

Diameter	42
Flute Length	126
Insert	SP...1405
Overall Length	221
Shank Size	32
Screw	M4.0X10

View all specifications ↓

£109.17

Prices shown ex. VAT

In Stock— only 1 left

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Insert compatibility: Uses SPMG or SPKX ISO inserts for versatile cutting performance.
Depth capacity: 3xD maximum drill depth for efficient deep holes.
Through coolant: Internal through coolant capability helps flush chips and control temperatures.
Material range: General insert grade available for machining Steel, Stainless Steel, Cast Iron & Exotics.
Holder options: Holders are available in 2xD, 3xD and 4xD to suit different setups.
Diameter: 42 mm diameter for mid‑sized hole applications.

The system enables efficient general‑purpose drilling with replaceable inserts, reducing downtime and tooling costs. By using SPMG or SPKX inserts, you can tailor cutting performance to the material being machined, and through coolant helps extend insert life and maintain hole quality across tough materials. With a maximum depth of 3xD, this U‑Drill supports deep holes in a single setup, making it a dependable choice for everyday machining and production environments.

Diameter	42
Flute Length	126
Insert	SP...1405
Overall Length	221
Shank Size	32
Screw	M4.0X10
Wrench	T15

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Vortex Indexable U-Drill - 3xD - SPMG/SPKX

View full collection →

You are viewing PRO1600379. Click any other SKU to view its full details.

Product SKU	Diameter	Flute Length	Insert	Overall Length	Shank Size	Screw	Wrench	Price	Stock

PRO1600350	13	39	SP...0502	125	25	M2.0X5	T6	£33.77	In Stock
PRO1600351	14	42	SP...0502	128	25	M2.0X5	T6	£36.54	4-6 weeks
PRO1600352	15	45	SP...0502	131	25	M2.0X5	T6	£38.92	In Stock
PRO1600353	16	48	SP...0602	134	25	M2.0X5	T6	£41.31	In Stock
PRO1600354	17	51	SP...0602	137	25	M2.2X5.5	T7	£43.63	In Stock
PRO1600355	18	54	SP...0602	140	25	M2.2X5.5	T7	£46.87	In Stock
PRO1600356	19	57	SP...0602	143	25	M2.2X5.5	T7	£49.83	In Stock
PRO1600357	20	60	SP...0602	146	25	M2.2X5.5	T7	£52.41	4-6 weeks
PRO1600358	21	63	SP...0602	158	32	M2.2X5.5	T7	£54.98	In Stock
PRO1600359	22	66	SP...07T3	161	32	M2.2X5.5	T7	£57.59	In Stock
PRO1600360	23	69	SP...07T3	164	32	M2.5X8	T8	£60.17	In Stock
PRO1600361	24	72	SP...07T3	167	32	M2.5X8	T8	£62.74	4-6 weeks
PRO1600362	25	75	SP...07T3	170	32	M2.5X8	T8	£65.32	4-6 weeks
PRO1600363	26	78	SP...07T3	173	32	M2.5X8	T8	£67.89	In Stock
PRO1600364	27	81	SP...07T3	176	32	M2.5X8	T8	£70.47	In Stock
PRO1600365	28	84	SP...0904	179	32	M3.5X9	T15	£73.04	4-6 weeks
PRO1600366	29	87	SP...0904	182	32	M3.5X9	T15	£75.65	In Stock
PRO1600367	30	90	SP...0904	185	32	M3.5X9	T15	£78.23	In Stock
PRO1600368	31	93	SP...0904	188	32	M3.5X9	T15	£80.80	In Stock
PRO1600369	32	96	SP...0904	191	32	M3.5X9	T15	£83.38	4-6 weeks
PRO1600370	33	99	SP...0904	194	32	M3.5X9	T15	£85.96	In Stock
PRO1600371	34	102	SP...1104	197	32	M4.0X10	T15	£88.53	4-6 weeks
PRO1600372	35	105	SP...1104	200	32	M4.0X10	T15	£91.11	In Stock
PRO1600373	36	108	SP...1104	203	32	M4.0X10	T15	£93.71	In Stock
PRO1600374	37	111	SP...1104	206	32	M4.0X10	T15	£96.29	In Stock
PRO1600375	38	114	SP...1104	209	32	M4.0X10	T15	£98.87	In Stock
PRO1600376	39	117	SP...1104	212	32	M4.0X10	T15	£101.44	In Stock
PRO1600377	40	120	SP...1104	215	32	M4.0X10	T15	£104.02	In Stock
PRO1600378	41	123	SP...1104	218	32	M4.0X10	T15	£106.59	In Stock
PRO1600379 Viewing	42	126	SP...1405	221	32	M4.0X10	T15	£109.17	In Stock
PRO1600380	43	129	SP...1405	239	40	M4.0X10	T15	£111.78	In Stock
PRO1600381	44	132	SP...1405	242	40	M5.0X11	T20	£114.35	In Stock
PRO1600382	45	135	SP...1405	245	40	M5.0X11	T20	£116.93	4-6 weeks
PRO1600383	46	138	SP...1405	248	40	M5.0X11	T20	£119.50	In Stock
PRO1600384	47	141	SP...1405	251	40	M5.0X11	T20	£122.08	In Stock
PRO1600385	48	144	SP...1405	254	40	M5.0X11	T20	£124.66	In Stock
PRO1600386	49	147	SP...1405	257	40	M5.0X11	T20	£127.23	4-6 weeks
PRO1600387	50	150	SP...1405	260	40	M5.0X11	T20	£129.84	In Stock
