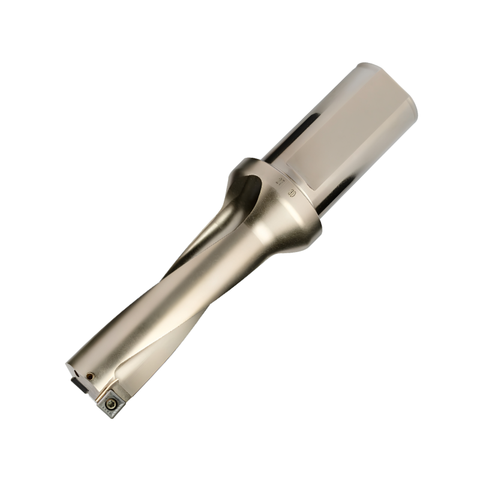

Vortex Indexable U-Drill - 3xD - SPMG/SPKX - 28mm
| Diameter | 28 |
| Flute Length | 84 |
| Insert | SP...0904 |
| Overall Length | 179 |
| Shank Size | 32 |
| Screw | M3.5X9 |
Learn more about Klarna
The Vortex Indexable U-Drill is a general-purpose drilling solution designed for reliable through‑hole production. Sized at 28 mm, it uses ISO SPMG or SPKX inserts for easy, cost-effective tool changes.
- Diameter: 28 mm
- Maximum drill depth: 3xD
- Insert compatibility: Uses SPMG or SPKX ISO inserts
- Coolant: Internal through coolant capability
- Holder availability: 2xD, 3xD and 4xD holders
- Material compatibility: General insert grades for Steel, Stainless Steel, Cast Iron & Exotics
This U‑drill delivers efficient, repeatable hole-making across common engineering materials. The through‑coolant design helps manage heat and chip evacuation for longer tool life and steadier performance, while the standard SPMG/SPKX inserts keep costs predictable and replacement straightforward. With a 3xD depth limit, it’s well-suited to mid‑length hole drilling, and the 28 mm diameter hits a versatile mid‑range size ideal for general manufacturing and production environments.
| Diameter | 28 |
| Flute Length | 84 |
| Insert | SP...0904 |
| Overall Length | 179 |
| Shank Size | 32 |
| Screw | M3.5X9 |
| Wrench | T15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Indexable U-Drill - 3xD - SPMG/SPKX
View full collection →You are viewing PRO1600365. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Overall Length | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600350 | 13 | 39 | SP...0502 | 125 | 25 | M2.0X5 | T6 | £33.77 | In Stock | |
| PRO1600351 | 14 | 42 | SP...0502 | 128 | 25 | M2.0X5 | T6 | £36.54 | 4-6 weeks | |
| PRO1600352 | 15 | 45 | SP...0502 | 131 | 25 | M2.0X5 | T6 | £38.92 | In Stock | |
| PRO1600353 | 16 | 48 | SP...0602 | 134 | 25 | M2.0X5 | T6 | £41.31 | In Stock | |
| PRO1600354 | 17 | 51 | SP...0602 | 137 | 25 | M2.2X5.5 | T7 | £43.63 | In Stock | |
| PRO1600355 | 18 | 54 | SP...0602 | 140 | 25 | M2.2X5.5 | T7 | £46.87 | In Stock | |
| PRO1600356 | 19 | 57 | SP...0602 | 143 | 25 | M2.2X5.5 | T7 | £49.83 | In Stock | |
| PRO1600357 | 20 | 60 | SP...0602 | 146 | 25 | M2.2X5.5 | T7 | £52.41 | 4-6 weeks | |
| PRO1600358 | 21 | 63 | SP...0602 | 158 | 32 | M2.2X5.5 | T7 | £54.98 | In Stock | |
| PRO1600359 | 22 | 66 | SP...07T3 | 161 | 32 | M2.2X5.5 | T7 | £57.59 | In Stock | |
| PRO1600360 | 23 | 69 | SP...07T3 | 164 | 32 | M2.5X8 | T8 | £60.17 | In Stock | |
| PRO1600361 | 24 | 72 | SP...07T3 | 167 | 32 | M2.5X8 | T8 | £62.74 | 4-6 weeks | |
| PRO1600362 | 25 | 75 | SP...07T3 | 170 | 32 | M2.5X8 | T8 | £65.32 | 4-6 weeks | |
| PRO1600363 | 26 | 78 | SP...07T3 | 173 | 32 | M2.5X8 | T8 | £67.89 | In Stock | |
| PRO1600364 | 27 | 81 | SP...07T3 | 176 | 32 | M2.5X8 | T8 | £70.47 | In Stock | |
| PRO1600365 Viewing | 28 | 84 | SP...0904 | 179 | 32 | M3.5X9 | T15 | £73.04 | 4-6 weeks | |
| PRO1600366 | 29 | 87 | SP...0904 | 182 | 32 | M3.5X9 | T15 | £75.65 | In Stock | |
| PRO1600367 | 30 | 90 | SP...0904 | 185 | 32 | M3.5X9 | T15 | £78.23 | In Stock | |
| PRO1600368 | 31 | 93 | SP...0904 | 188 | 32 | M3.5X9 | T15 | £80.80 | In Stock | |
| PRO1600369 | 32 | 96 | SP...0904 | 191 | 32 | M3.5X9 | T15 | £83.38 | 4-6 weeks | |
| PRO1600370 | 33 | 99 | SP...0904 | 194 | 32 | M3.5X9 | T15 | £85.96 | In Stock | |
| PRO1600371 | 34 | 102 | SP...1104 | 197 | 32 | M4.0X10 | T15 | £88.53 | 4-6 weeks | |
| PRO1600372 | 35 | 105 | SP...1104 | 200 | 32 | M4.0X10 | T15 | £91.11 | In Stock | |
| PRO1600373 | 36 | 108 | SP...1104 | 203 | 32 | M4.0X10 | T15 | £93.71 | In Stock | |
| PRO1600374 | 37 | 111 | SP...1104 | 206 | 32 | M4.0X10 | T15 | £96.29 | In Stock | |
| PRO1600375 | 38 | 114 | SP...1104 | 209 | 32 | M4.0X10 | T15 | £98.87 | In Stock | |
| PRO1600376 | 39 | 117 | SP...1104 | 212 | 32 | M4.0X10 | T15 | £101.44 | In Stock | |
| PRO1600377 | 40 | 120 | SP...1104 | 215 | 32 | M4.0X10 | T15 | £104.02 | In Stock | |
| PRO1600378 | 41 | 123 | SP...1104 | 218 | 32 | M4.0X10 | T15 | £106.59 | In Stock | |
| PRO1600379 | 42 | 126 | SP...1405 | 221 | 32 | M4.0X10 | T15 | £109.17 | In Stock | |
| PRO1600380 | 43 | 129 | SP...1405 | 239 | 40 | M4.0X10 | T15 | £111.78 | In Stock | |
| PRO1600381 | 44 | 132 | SP...1405 | 242 | 40 | M5.0X11 | T20 | £114.35 | In Stock | |
| PRO1600382 | 45 | 135 | SP...1405 | 245 | 40 | M5.0X11 | T20 | £116.93 | 4-6 weeks | |
| PRO1600383 | 46 | 138 | SP...1405 | 248 | 40 | M5.0X11 | T20 | £119.50 | In Stock | |
| PRO1600384 | 47 | 141 | SP...1405 | 251 | 40 | M5.0X11 | T20 | £122.08 | In Stock | |
| PRO1600385 | 48 | 144 | SP...1405 | 254 | 40 | M5.0X11 | T20 | £124.66 | In Stock | |
| PRO1600386 | 49 | 147 | SP...1405 | 257 | 40 | M5.0X11 | T20 | £127.23 | 4-6 weeks | |
| PRO1600387 | 50 | 150 | SP...1405 | 260 | 40 | M5.0X11 | T20 | £129.84 | In Stock |
