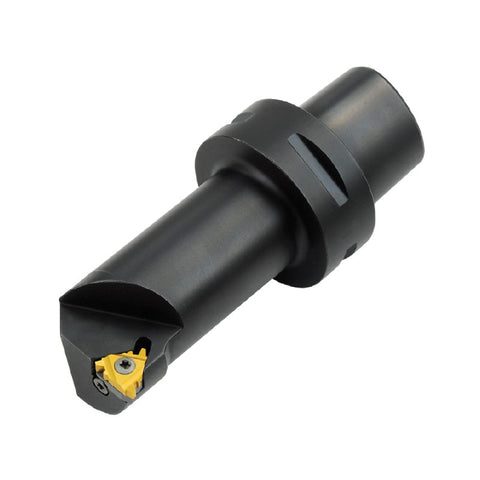

Carmex Thread Turning Holder Quick Change (CAT) Polygon - Internal - Right Hand - 90mm OAL - 16IR Insert - C6 Shank Size
| Type | Quick Change (CAT)(Polygon) |
| Internal or External | Internal |
| Minimum Bore | 36 |
| Shank Size | C6 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Carmex Thread Turning Holder Quick Change (CAT) Polygon is a precision toolholder designed for fast, reliable threading on CNC lathes and turning centers. Built for machinists in automotive, aerospace, and manufacturing environments, it combines CAT quick-change compatibility with a robust polygon geometry to deliver consistent thread forms with minimal setup time.
- CAT polygon interface: Designed to snap into CAT toolholder systems for rapid, repeatable tool changes during high-volume threading.
- 90 mm OAL: Compact overall length provides a stable cutting platform in tight tooling envelopes.
- Internal, Right-Hand: Optimized for clockwise threading operations with an internal turning configuration.
- 16IR Insert Compatibility: Accepts 16IR inserts to cover a wide range of thread pitches and profiles.
- C6 Shank Size: Standard shank dimension ensures reliable fit and rigidity on CAT-compatible spindles.
- Precision-Engineered: Tight tolerances and thoughtful geometry deliver accurate thread forms across profiles, helping reduce rework and improve consistency.
When used in production, this holder minimizes downtime by enabling quick tool changes without sacrificing thread accuracy. Its durable construction supports high-cycle threading tasks in demanding applications, delivering dependable performance from prototype runs to full-rate production. Ideal for operators who need versatile, repeatable thread turning with a single, reliable CAT-compatible holder that maintains precise geometry across diverse thread profiles.
Part Numbers
- Protool Part Number
- P63-SIR22090-16
- Brand
- Carmex
- Category
- Thread Turning
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Thread Turning Holders - Internal - Quick Change (CAT) Polygon
View full collection →You are viewing P63-SIR22090-16. Click any other SKU to view its full details.
| Product SKU | Minimum Bore | Shank Size | Hand | Overall Length | Insert | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| P40-SIR12060-16 | 20 | C4 | Right | 60 | 16IR | 37 | £156.86 | 5 days | |
| P40-SIR14060-16 | 25 | C4 | Right | 60 | 16IR | 38 | £156.86 | 5 days | |
| P40-SIR17070-16 | 29 | C4 | Right | 70 | 16IR | 48 | £156.86 | 5 days | |
| P40-SIR22090-16 | 36 | C4 | Right | 90 | 16IR | 69 | £156.86 | 5 days | |
| P40-SIR27080-16 | 44 | C4 | Right | 80 | 16IR | 60 | £156.86 | 5 days | |
| P50-SIR12060-16 | 20 | C5 | Right | 60 | 16IR | 35 | £173.98 | 5 days | |
| P50-SIR14060-16 | 25 | C5 | Right | 60 | 16IR | 36 | £173.98 | 5 days | |
| P50-SIR17070-16 | 29 | C5 | Right | 70 | 16IR | 47 | £173.98 | 5 days | |
| P50-SIR22090-16 | 36 | C5 | Right | 90 | 16IR | 68 | £173.98 | 5 days | |
| P50-SIR27105-16 | 44 | C5 | Right | 105 | 16IR | 84 | £173.98 | 5 days | |
| P63-SIR14070-16 | 25 | C6 | Right | 70 | 16IR | 42 | £292.70 | 5 days | |
| P63-SIR17075-16 | 29 | C6 | Right | 75 | 16IR | 48 | £292.70 | 5 days | |
| P63-SIR22090-16 Viewing | 36 | C6 | Right | 90 | 16IR | 64 | £199.04 | 5 days | |
| P63-SIR27105-16 | 44 | C6 | Right | 105 | 16IR | 80 | £199.04 | 5 days | |
| P40-SIR15065-22 | 25 | C4 | Right | 65 | 22IR | 42 | £156.86 | 5 days | |
| P40-SIR19070-22 | 29 | C4 | Right | 70 | 22IR | 48 | £156.86 | 5 days | |
| P40-SIR22090-22 | 38 | C4 | Right | 90 | 22IR | 69 | £156.86 | 5 days | |
| P40-SIR27080-22 | 46 | C4 | Right | 80 | 22IR | 60 | £156.86 | 5 days | |
| P50-SIR15065-22 | 25 | C5 | Right | 65 | 22IR | 41 | £173.98 | 5 days | |
| P50-SIR19070-22 | 29 | C5 | Right | 70 | 22IR | 47 | £173.98 | 5 days | |
| P50-SIR22090-22 | 38 | C5 | Right | 90 | 22IR | 68 | £173.98 | 5 days | |
| P50-SIR27105-22 | 46 | C5 | Right | 105 | 22IR | 84 | £173.98 | 5 days | |
| P63-SIR19075-22 | 29 | C6 | Right | 75 | 22IR | 48 | £292.70 | 5 days | |
| P63-SIR22090-22 | 38 | C6 | Right | 90 | 22IR | 64 | £199.04 | 5 days | |
| P63-SIR27105-22 | 46 | C6 | Right | 105 | 22IR | 80 | £199.04 | 5 days |
