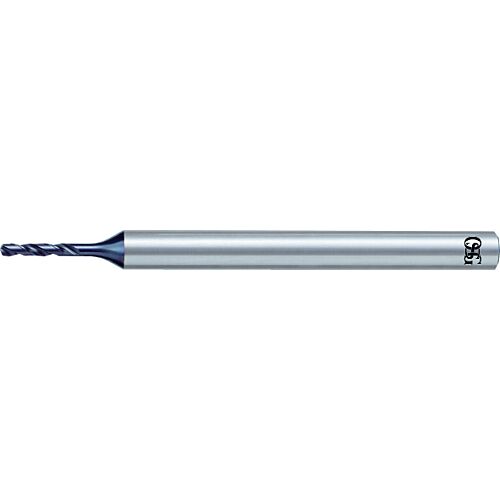

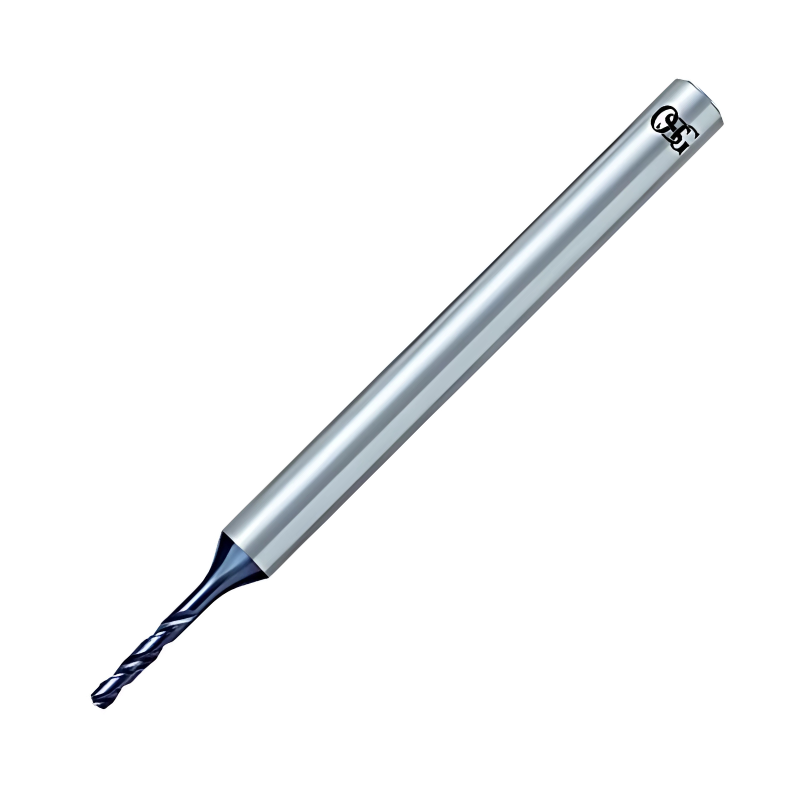

OSG Carbide Drill 8XD - WD1 Coated - With Oil Hole Drilling - Through Coolant - 5.1mm
| Drill Diameter | 5.10 |
| Flute Length | 57 |
| Overall Length | 97 |
| Shank Diameter | 6 |
Learn more about Klarna
Description
The OSG Carbide Drill 8XD, WD1 coated, with oil-hole lubrication and through-coolant capability, is a precision carbide drill designed for deep-hole work. With a 5.1 mm diameter, it’s ideal for engineers, machinists, and technicians who need clean, accurate holes in metals and plastics across a variety of applications.
Featuring an 8XD length-to-diameter ratio, this drill reaches deep features in a single setup while maintaining rigidity. The WD1 coating boosts wear resistance for longer tool life, even in challenging materials. The integrated oil-hole drilling and through-coolant system ensures efficient chip evacuation and effective temperature control for consistent hole quality.
- 8XD reach for deep-hole versatility: Eight times the diameter in length allows deep holes to be drilled in a single setup without sacrificing straightness or stability, reducing tool changes and improving workflow.
- WD1 coating for extended tool life: Enhanced wear resistance and smooth operation reduce edge wear and maintain hole accuracy over more cycles in demanding materials.
- Oil-hole and through-coolant design: Direct lubrication and coolant delivery flush chips away, cool the cutting edge, and minimize thermal distortion for cleaner holes and reliable performance.
This combination of long reach, durable coating, and efficient cooling makes the drill a dependable choice for production floors, maintenance shops, and prototyping environments. It helps you achieve consistent hole quality, reduce downtime, and maintain tight tolerances across a range of materials and applications.
Part Numbers
- Protool Part Number
- OSG-32210510
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Carbide Drill 8XD - WD1 Coated - With Oil Hole Drilling - With Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-32210510. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-32210300 | 3.00 | 30 | 70 | 4 | Coated | YES | £95.18 | 1-2 days | |
| OSG-32210310 | 3.10 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210317 | 3.17 (1/8) | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210320 | 3.20 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210330 | 3.30 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210340 | 3.40 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210350 | 3.50 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210357 | 3.57 (9/64) | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210360 | 3.60 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210370 | 3.70 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210380 | 3.80 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210390 | 3.90 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210397 | 3.97 (5/32) | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210400 | 4.00 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210410 | 4.10 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210420 | 4.20 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210430 | 4.30 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210437 | 4.37 (11/64) | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210440 | 4.40 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210450 | 4.50 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210460 | 4.60 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210470 | 4.70 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210476 | 4.79 (3/16) | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210480 | 4.80 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210490 | 4.90 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210500 | 5.00 | 50 | 90 | 6 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210510 Viewing | 5.10 | 57 | 97 | 6 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210516 | 5.16 (13/64) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210520 | 5.20 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210530 | 5.30 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210540 | 5.40 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210550 | 5.50 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210556 | 5.56 (7/32) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210560 | 5.60 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210570 | 5.70 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210580 | 5.80 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210590 | 5.90 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210595 | 5.95 (15/64) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210600 | 6.00 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210610 | 6.10 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210620 | 6.20 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210630 | 6.30 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210635 | 6.35 (1/4) | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210640 | 6.40 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210650 | 6.50 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210660 | 6.60 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210670 | 6.70 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210675 | 6.75 (17/64) | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210680 | 6.80 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210690 | 6.90 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210700 | 7.00 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210710 | 7.10 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210714 | 7.14 (9/32) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210720 | 7.20 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210730 | 7.30 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210740 | 7.40 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210750 | 7.50 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210754 | 7.54 (19/64) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210760 | 7.60 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210770 | 7.70 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210780 | 7.80 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210790 | 7.90 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210794 | 7.94 (19/64) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210800 | 8.00 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210810 | 8.10 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210820 | 8.20 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210830 | 8.30 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210833 | 8.33 (21/64) | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210840 | 8.40 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210850 | 8.50 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210860 | 8.60 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210870 | 8.70 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210873 | 8.73 (11/32) | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210880 | 8.80 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210890 | 8.90 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210900 | 9.00 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210910 | 9.10 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210913 | 9.13 (23/64) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210920 | 9.20 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210930 | 9.30 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210940 | 9.40 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210950 | 9.50 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210952 | 9.52 (3/8) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210960 | 9.60 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210970 | 9.70 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210980 | 9.80 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210990 | 9.90 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210992 | 9.92 (25/64) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32211000 | 10.00 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32211010 | 10.10 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211020 | 10.20 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211030 | 10.30 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211032 | 10.32 (13/32) | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211040 | 10.40 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211050 | 10.50 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211060 | 10.60 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211070 | 10.70 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211072 | 10.72 (27/64) | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211080 | 10.80 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211090 | 10.90 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211100 | 11.00 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211110 | 11.10 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211111 | 11.11 (7/16) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211120 | 11.20 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211130 | 11.30 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211140 | 11.40 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211150 | 11.50 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211151 | 11.51 (29/64) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211160 | 11.60 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211170 | 11.70 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211180 | 11.80 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211190 | 11.90 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211191 | 11.91 (15/32) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211200 | 12.00 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211230 | 12.3 (31/64) | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211250 | 12.50 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211270 | 12.7 (1/2) | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211300 | 13.00 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211350 | 13.50 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211400 | 14.00 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211429 | 14.29 (9/16) | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211450 | 14.50 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211500 | 15.00 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211550 | 15.50 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211587 | 15.87 (5/8) | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211600 | 16.00 | 152 | 204 | 16 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211650 | 16.50 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211700 | 17.00 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211750 | 17.50 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211800 | 18.00 | 171 | 223 | 18 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211850 | 18.50 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211900 | 19.00 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211950 | 19.50 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32212000 | 20.00 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days |
No products match your filters.
