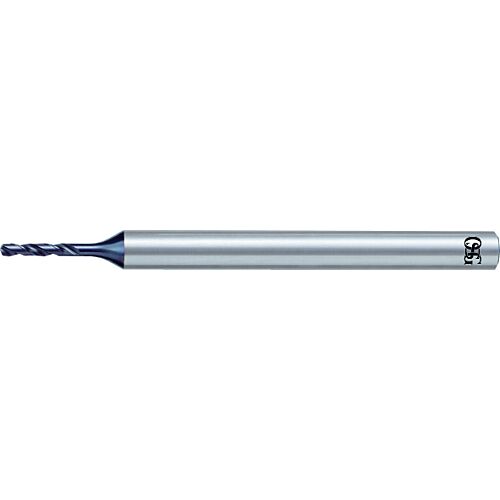

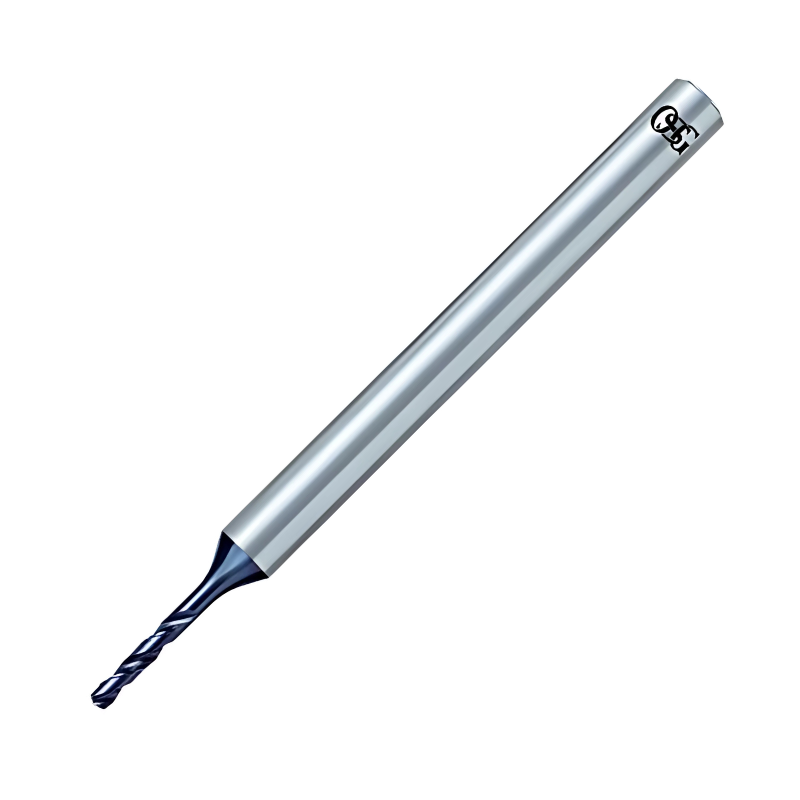

OSG Carbide Drill 8XD - WD1 Coated - With Oil Hole Drilling - Through Coolant - 5.3mm
SKU:OSG-32210530
Meet the OSG Carbide Drill 8XD, a through-coolant carbide drill finished with WD1 coating. Designed for deep-hole tasks, this 5.3 mm diameter tool delivers consistent hole quality and reliable pe...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 5.30 |
| Flute Length | 57 |
| Overall Length | 97 |
| Shank Diameter | 8 |
£118.20
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
Meet the OSG Carbide Drill 8XD, a through-coolant carbide drill finished with WD1 coating. Designed for deep-hole tasks, this 5.3 mm diameter tool delivers consistent hole quality and reliable performance across a wide range of materials. Its extended 8XD length-to-diameter ratio provides reach where space is tight, making it an efficient choice for production floors, machine shops, and maintenance work where precision matters.
WD1 coating enhances wear resistance, helping the drill stay sharp longer and resist built-up wear in demanding applications. The integrated oil hole drilling and through coolant design ensure efficient chip evacuation and effective temperature control, resulting in smoother cuts, less thermal distortion, and better surface finish even in challenging materials.
- 8XD geometry for deeper, precision drilling: Extends reach without sacrificing rigidity, enabling consistent, accurate holes in tight or hard-to-reach areas and reducing the need for secondary tools or rework.
- WD1 coating for extended tool life: Hardened wear resistance preserves edge integrity, lowers replacement frequency, and sustains precise hole sizes over longer production runs.
- Oil hole and through coolant system for efficient cooling and chip evacuation: Active cooling and continuous chip removal maintain stable cutting conditions, improve hole quality, and minimize overheating in demanding materials.
This drill is a reliable, high-performance choice for engineers, machinists, and operators seeking consistent results, reduced downtime, and a tool that handles demanding drilling tasks with confidence.
Part Numbers
- Protool Part Number
- OSG-32210530
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 8XD - WD1 Coated - With Oil Hole Drilling - With Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-32210530. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-32210300 | 3.00 | 30 | 70 | 4 | Coated | YES | £95.18 | 1-2 days | |
| OSG-32210310 | 3.10 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210317 | 3.17 (1/8) | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210320 | 3.20 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210330 | 3.30 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210340 | 3.40 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210350 | 3.50 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210357 | 3.57 (9/64) | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210360 | 3.60 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210370 | 3.70 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210380 | 3.80 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210390 | 3.90 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210397 | 3.97 (5/32) | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210400 | 4.00 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210410 | 4.10 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210420 | 4.20 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210430 | 4.30 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210437 | 4.37 (11/64) | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210440 | 4.40 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210450 | 4.50 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210460 | 4.60 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210470 | 4.70 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210476 | 4.79 (3/16) | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210480 | 4.80 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210490 | 4.90 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210500 | 5.00 | 50 | 90 | 6 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210510 | 5.10 | 57 | 97 | 6 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210516 | 5.16 (13/64) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210520 | 5.20 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210530 Viewing | 5.30 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210540 | 5.40 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210550 | 5.50 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210556 | 5.56 (7/32) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210560 | 5.60 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210570 | 5.70 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210580 | 5.80 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210590 | 5.90 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210595 | 5.95 (15/64) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210600 | 6.00 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210610 | 6.10 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210620 | 6.20 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210630 | 6.30 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210635 | 6.35 (1/4) | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210640 | 6.40 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210650 | 6.50 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210660 | 6.60 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210670 | 6.70 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210675 | 6.75 (17/64) | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210680 | 6.80 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210690 | 6.90 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210700 | 7.00 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210710 | 7.10 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210714 | 7.14 (9/32) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210720 | 7.20 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210730 | 7.30 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210740 | 7.40 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210750 | 7.50 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210754 | 7.54 (19/64) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210760 | 7.60 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210770 | 7.70 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210780 | 7.80 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210790 | 7.90 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210794 | 7.94 (19/64) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210800 | 8.00 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210810 | 8.10 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210820 | 8.20 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210830 | 8.30 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210833 | 8.33 (21/64) | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210840 | 8.40 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210850 | 8.50 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210860 | 8.60 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210870 | 8.70 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210873 | 8.73 (11/32) | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210880 | 8.80 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210890 | 8.90 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210900 | 9.00 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210910 | 9.10 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210913 | 9.13 (23/64) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210920 | 9.20 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210930 | 9.30 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210940 | 9.40 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210950 | 9.50 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210952 | 9.52 (3/8) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210960 | 9.60 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210970 | 9.70 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210980 | 9.80 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210990 | 9.90 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210992 | 9.92 (25/64) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32211000 | 10.00 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32211010 | 10.10 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211020 | 10.20 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211030 | 10.30 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211032 | 10.32 (13/32) | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211040 | 10.40 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211050 | 10.50 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211060 | 10.60 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211070 | 10.70 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211072 | 10.72 (27/64) | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211080 | 10.80 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211090 | 10.90 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211100 | 11.00 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211110 | 11.10 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211111 | 11.11 (7/16) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211120 | 11.20 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211130 | 11.30 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211140 | 11.40 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211150 | 11.50 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211151 | 11.51 (29/64) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211160 | 11.60 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211170 | 11.70 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211180 | 11.80 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211190 | 11.90 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211191 | 11.91 (15/32) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211200 | 12.00 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211230 | 12.3 (31/64) | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211250 | 12.50 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211270 | 12.7 (1/2) | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211300 | 13.00 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211350 | 13.50 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211400 | 14.00 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211429 | 14.29 (9/16) | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211450 | 14.50 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211500 | 15.00 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211550 | 15.50 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211587 | 15.87 (5/8) | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211600 | 16.00 | 152 | 204 | 16 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211650 | 16.50 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211700 | 17.00 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211750 | 17.50 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211800 | 18.00 | 171 | 223 | 18 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211850 | 18.50 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211900 | 19.00 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211950 | 19.50 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32212000 | 20.00 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days |
No products match your filters.
