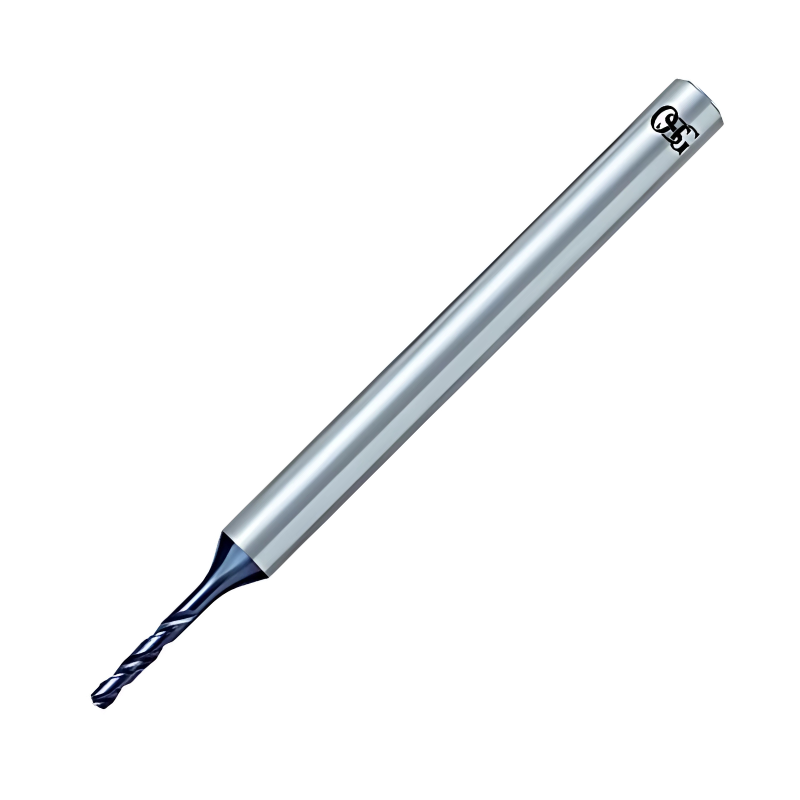

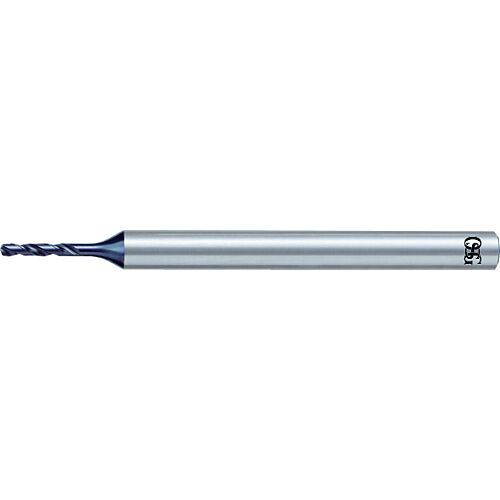

OSG Carbide Drill 8XD - WD1 Coated - With Oil Hole Drilling - Through Coolant - 5.16 (13/64)
SKU:OSG-32210516
The OSG Carbide Drill 8XD, WD1-coated and designed with oil hole drilling and through-coolant capability, is a precision drilling tool built for deep-hole work. Featuring an eight-to-one length-t...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 5.16 (13/64) |
| Flute Length | 57 |
| Overall Length | 97 |
| Shank Diameter | 8 |
£118.20
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
The OSG Carbide Drill 8XD, WD1-coated and designed with oil hole drilling and through-coolant capability, is a precision drilling tool built for deep-hole work. Featuring an eight-to-one length-to-diameter ratio (8XD) for extended reach, this 5.16 mm (13/64 in) diameter drill delivers reliable performance across a variety of materials in industrial settings.
- WD1 coating for wear resistance: The WD1 coating enhances tool life by reducing wear and maintaining stable performance in challenging materials, helping you run longer between replacements.
- Oil hole drilling and through coolant: Integrated coolant flow and oil delivery ensure efficient chip evacuation and better temperature control, improving hole quality and reducing thermal issues during deep drilling.
- 8XD long reach for deep holes: The eight-times-diameter length provides extended reach, enabling deeper holes with fewer tool changes and greater drilling versatility.
This combination of hard material carbide, protective WD1 coating, and active cooling delivers dependable, repeatable results—helping you complete projects faster, maintain hole quality, and reduce downtime in production or workshop environments.
Part Numbers
- Protool Part Number
- OSG-32210516
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 8XD - WD1 Coated - With Oil Hole Drilling - With Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-32210516. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-32210300 | 3.00 | 30 | 70 | 4 | Coated | YES | £95.18 | 1-2 days | |
| OSG-32210310 | 3.10 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210317 | 3.17 (1/8) | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210320 | 3.20 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210330 | 3.30 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210340 | 3.40 | 30 | 70 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210350 | 3.50 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210357 | 3.57 (9/64) | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210360 | 3.60 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210370 | 3.70 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210380 | 3.80 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210390 | 3.90 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210397 | 3.97 (5/32) | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210400 | 4.00 | 40 | 80 | 4 | Coated | YES | £85.02 | 1-2 days | |
| OSG-32210410 | 4.10 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210420 | 4.20 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210430 | 4.30 | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210437 | 4.37 (11/64) | 43 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210440 | 4.40 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210450 | 4.50 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210460 | 4.60 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210470 | 4.70 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210476 | 4.79 (3/16) | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210480 | 4.80 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210490 | 4.90 | 50 | 90 | 6 | Coated | YES | £99.08 | 1-2 days | |
| OSG-32210500 | 5.00 | 50 | 90 | 6 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210510 | 5.10 | 57 | 97 | 6 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210516 Viewing | 5.16 (13/64) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210520 | 5.20 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210530 | 5.30 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210540 | 5.40 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210550 | 5.50 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210556 | 5.56 (7/32) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210560 | 5.60 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210570 | 5.70 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210580 | 5.80 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210590 | 5.90 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210595 | 5.95 (15/64) | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210600 | 6.00 | 57 | 97 | 8 | Coated | YES | £118.20 | 1-2 days | |
| OSG-32210610 | 6.10 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210620 | 6.20 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210630 | 6.30 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210635 | 6.35 (1/4) | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210640 | 6.40 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210650 | 6.50 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210660 | 6.60 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210670 | 6.70 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210675 | 6.75 (17/64) | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210680 | 6.80 | 66 | 106 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210690 | 6.90 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210700 | 7.00 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210710 | 7.10 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210714 | 7.14 (9/32) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210720 | 7.20 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210730 | 7.30 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210740 | 7.40 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210750 | 7.50 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210754 | 7.54 (19/64) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210760 | 7.60 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210770 | 7.70 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210780 | 7.80 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210790 | 7.90 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210794 | 7.94 (19/64) | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210800 | 8.00 | 76 | 116 | 8 | Coated | YES | £144.71 | 1-2 days | |
| OSG-32210810 | 8.10 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210820 | 8.20 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210830 | 8.30 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210833 | 8.33 (21/64) | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210840 | 8.40 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210850 | 8.50 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210860 | 8.60 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210870 | 8.70 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210873 | 8.73 (11/32) | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210880 | 8.80 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210890 | 8.90 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210900 | 9.00 | 87 | 131 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210910 | 9.10 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210913 | 9.13 (23/64) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210920 | 9.20 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210930 | 9.30 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210940 | 9.40 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210950 | 9.50 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210952 | 9.52 (3/8) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210960 | 9.60 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210970 | 9.70 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210980 | 9.80 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210990 | 9.90 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32210992 | 9.92 (25/64) | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32211000 | 10.00 | 95 | 139 | 10 | Coated | YES | £195.03 | 1-2 days | |
| OSG-32211010 | 10.10 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211020 | 10.20 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211030 | 10.30 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211032 | 10.32 (13/32) | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211040 | 10.40 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211050 | 10.50 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211060 | 10.60 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211070 | 10.70 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211072 | 10.72 (27/64) | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211080 | 10.80 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211090 | 10.90 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211100 | 11.00 | 106 | 155 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211110 | 11.10 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211111 | 11.11 (7/16) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211120 | 11.20 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211130 | 11.30 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211140 | 11.40 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211150 | 11.50 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211151 | 11.51 (29/64) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211160 | 11.60 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211170 | 11.70 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211180 | 11.80 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211190 | 11.90 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211191 | 11.91 (15/32) | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211200 | 12.00 | 114 | 163 | 12 | Coated | YES | £267.94 | 1-2 days | |
| OSG-32211230 | 12.3 (31/64) | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211250 | 12.50 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211270 | 12.7 (1/2) | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211300 | 13.00 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211350 | 13.50 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211400 | 14.00 | 133 | 182 | 14 | Coated | YES | £380.24 | 1-2 days | |
| OSG-32211429 | 14.29 (9/16) | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211450 | 14.50 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211500 | 15.00 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211550 | 15.50 | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211587 | 15.87 (5/8) | 152 | 204 | 16 | Coated | YES | £626.31 | 1-2 days | |
| OSG-32211600 | 16.00 | 152 | 204 | 16 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211650 | 16.50 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211700 | 17.00 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211750 | 17.50 | 171 | 223 | 18 | Coated | YES | £707.32 | 1-2 days | |
| OSG-32211800 | 18.00 | 171 | 223 | 18 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211850 | 18.50 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211900 | 19.00 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32211950 | 19.50 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days | |
| OSG-32212000 | 20.00 | 190 | 244 | 20 | Coated | YES | £907.48 | 1-2 days |
No products match your filters.
