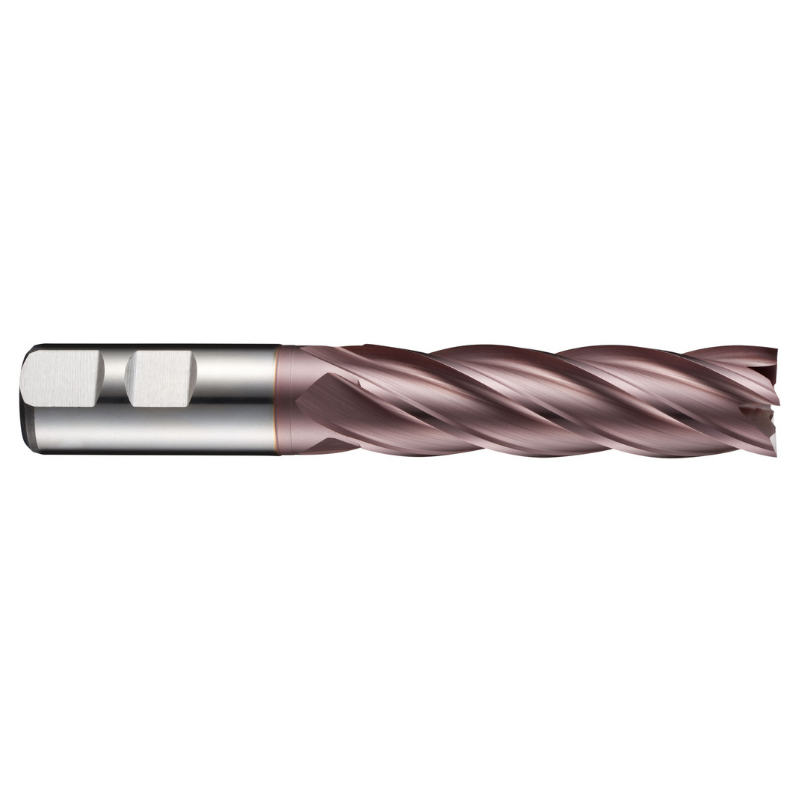

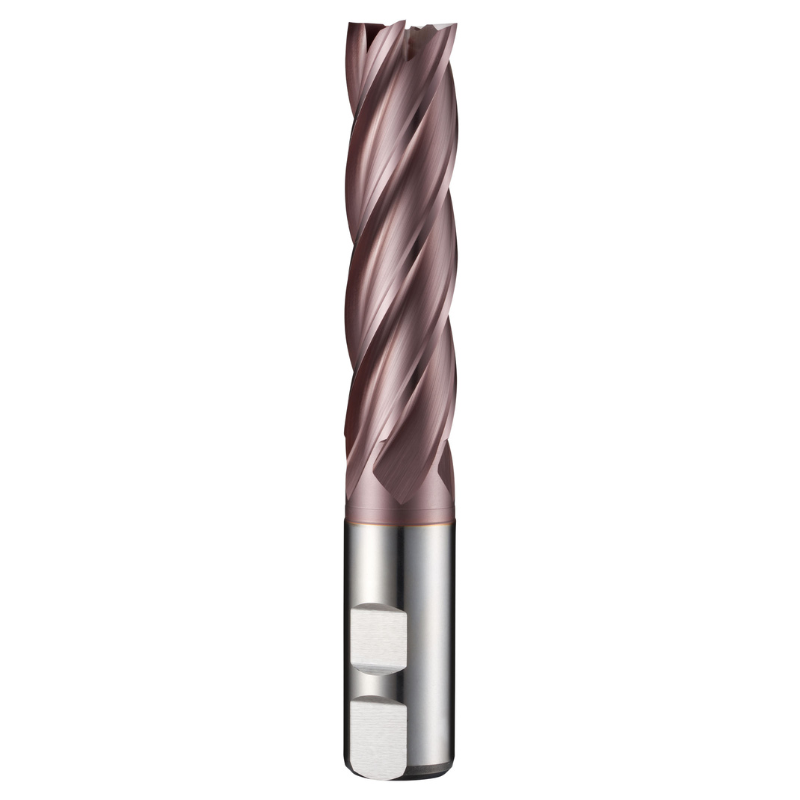

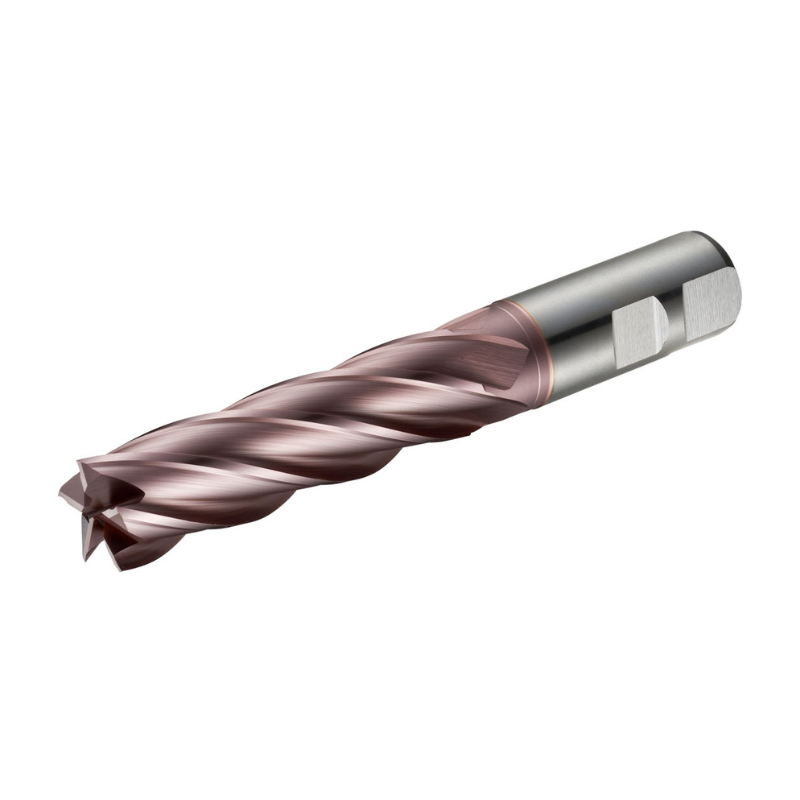

Dormer Pramet C295 12.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

Engineered for precision milling, the Dormer Pramet C295 12.0 mm HSS-E end mill is a long-series tool built for shoulder and slot milling in free‑machining steels, cast iron, copper alloys, and titanium alloys. With a TiCN-coated HSS‑E core and a robust DIN 844 L shank, this cutter is designed for enduring performance in challenging materials.

• Diameter: 12.0 mm
• Length of cut: 53 mm
• Overall length: 110 mm
• Reach / neck relief: 64.5 mm
• Shank: Weldon 12 mm
• Material / coating: HSS‑E powdered metallurgy with TiCN coating
• Flutes: 4‑flute design
• Helix / rake: 30° helix, 12° rake
• DIN standard: DIN 844 L

This end mill’s 4‑flute geometry provides efficient chip evacuation and a smooth finish on both shoulder features and slots. The TiCN coating enhances wear resistance and reduces built‑up edge when cutting workpieces such as plain carbon and alloy steels, cast iron, copper alloys, and titanium alloys. The long reach with neck relief enables deeper cavities and tight pockets without compromising rigidity, while the Weldon shank ensures secure, repeatable toolholding in standard holders.
