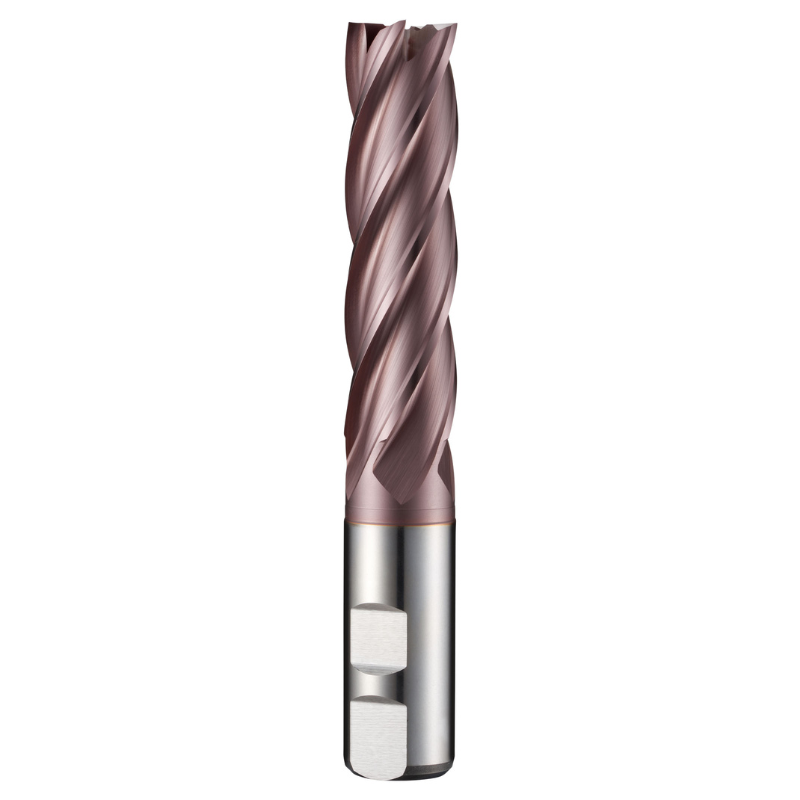

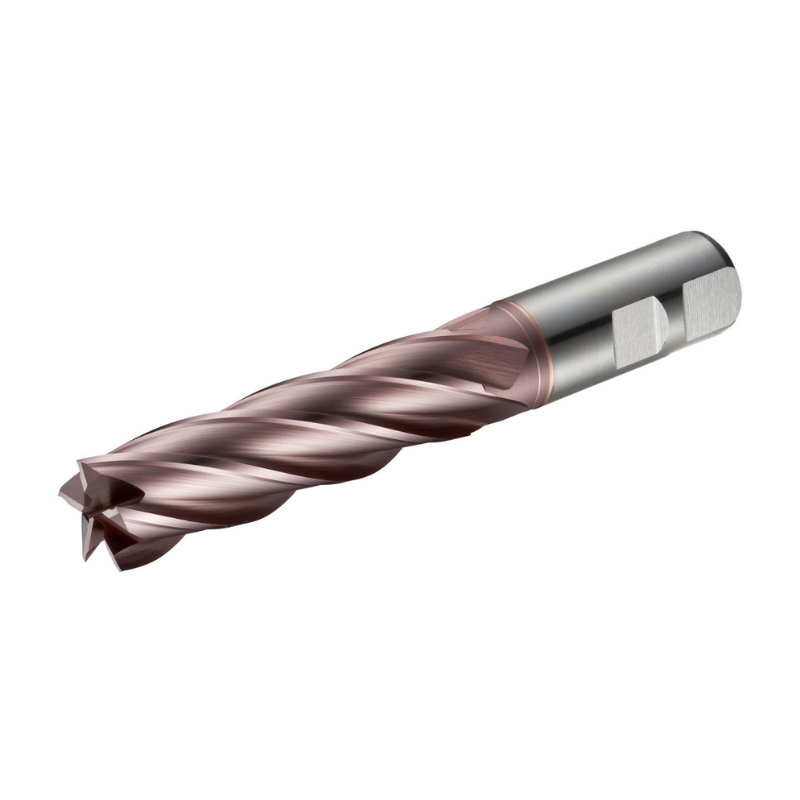

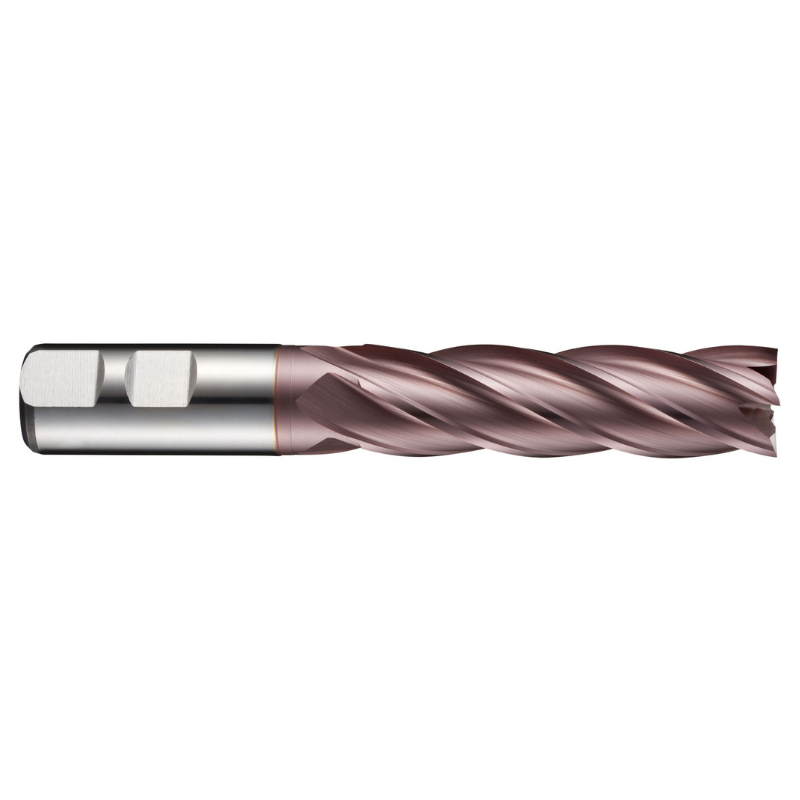

Dormer Pramet C295 15.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

The Dormer Pramet C295 15.0 mm end mill is a long-series, four-flute tool built for precise shoulder milling and slot milling in a range of ferrous and nonferrous materials. Designed for durability and consistent performance, it combines a robust HSS-E substrate with a hard TiCN coating to tackle daily machining challenges.

• Diameter: 15 mm
• Flutes: 4-flute geometry for efficient chip evacuation and stable cutting
• Length of cut: 53 mm
• Overall length: 110 mm
• Reach with neck relief: 64.5 mm
• Shank: Weldon 12 mm
• Material and coating: HSS-E powder metallurgy with TiCN coating
• Standard: DIN 844 L long-series end mill
• Helix and rake: 30° helix, 12° rake angle
• Applications: Shoulder milling and slot milling in free machining plain carbon and alloy steels, cast iron, copper or copper alloys, and titanium or titanium alloys

This end mill is engineered to deliver reliable performance across a broad spectrum of materials and applications. The TiCN coating reduces wear and improves surface finish, while the powder-metallurgical HSS-E substrate combines toughness with hardness for longer tool life. The long-series design provides extended reach for deep slots and pockets without compromising rigidity, and the Weldon shank ensures secure clamping in chucks or collets. With its precise 30° helix and 12° rake angle, it achieves smooth cutting action and efficient chip control, making it well-suited for both production and shop-floor milling of complex parts.
