Dormer Pramet C295 25.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

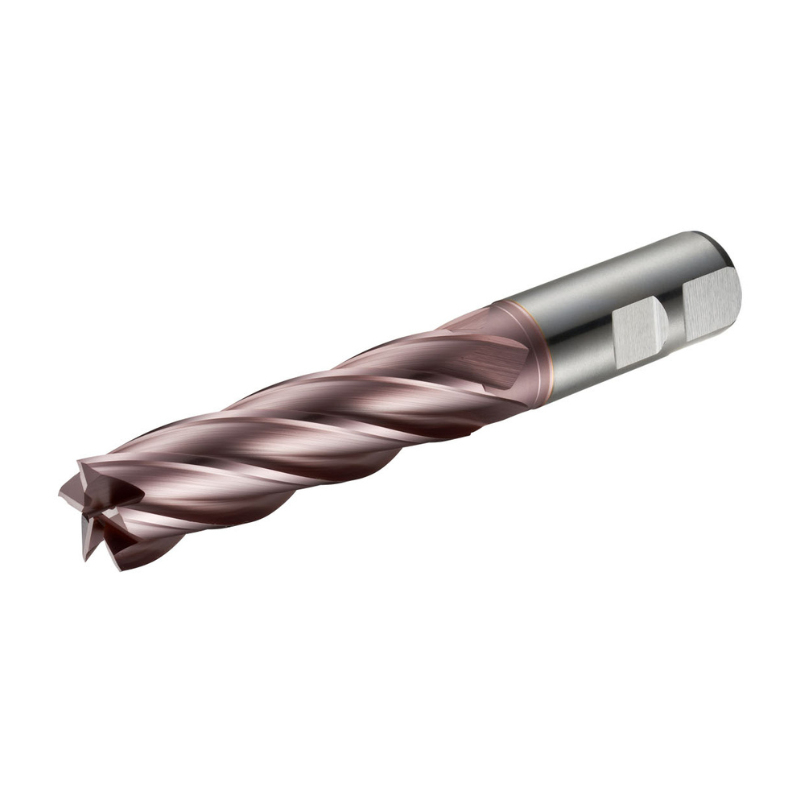

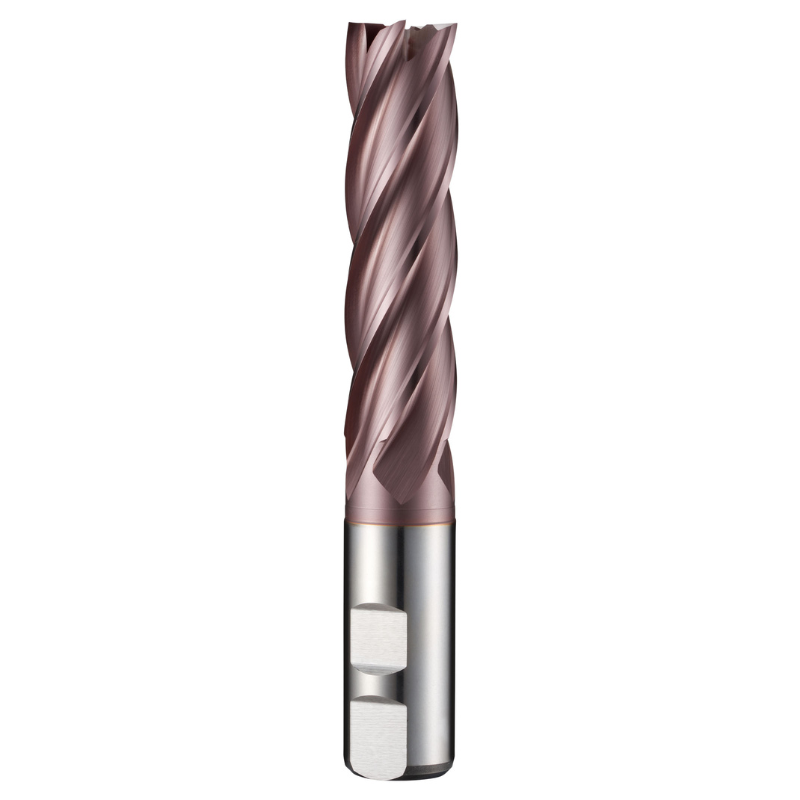

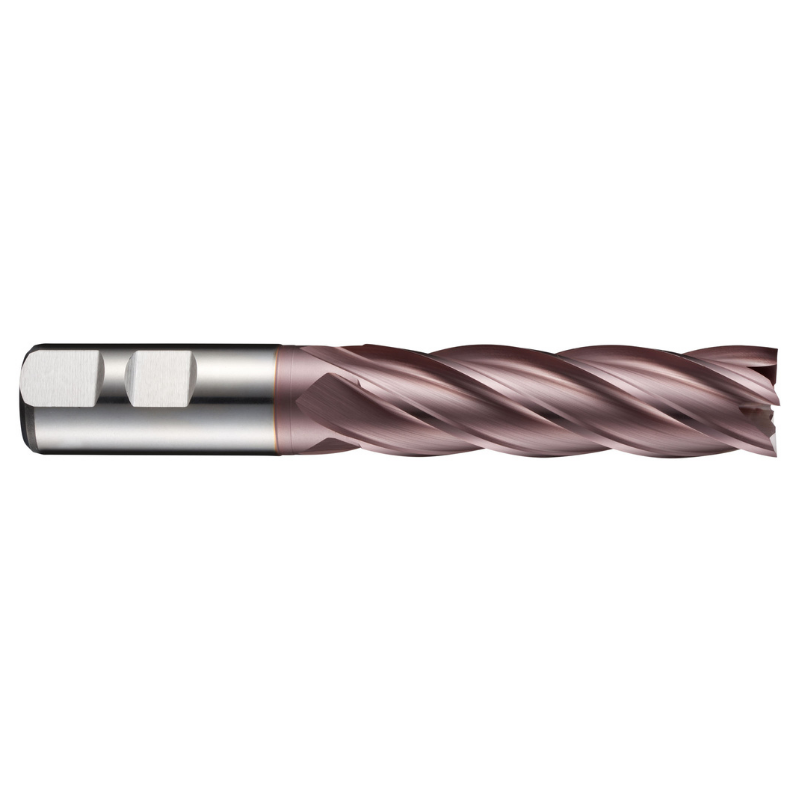

Introducing the Dormer Pramet C295: a 25 mm HSS-E powder-metallurgical end mill with TiCN coating, designed for shoulder and slot milling in deep pockets and complex features. Its long-series geometry delivers extended reach while maintaining stable, precise cutting in a range of materials.

• Diameter: 25.0 mm
• Flutes: 5-flute design for efficient chip evacuation and rigidity
• Length of Cut: 90 mm
• Overall Length: 166 mm
• Reach (with neck relief): 109.5 mm
• Shank: Weldon 25 mm
• Material & Coating: Powder-metallurgical HSS-E substrate with TiCN coating
• Helix: 30°
• Rake Angle: 12°
• DIN Standard: DIN 844 L
• Applications: Shoulder milling and slot milling in free-machining steels, cast iron, copper/copper alloys, and titanium/titanium alloys

The tool’s 30° helix and 12° rake angle promote smooth cutting action, reduced cutting forces, and better surface finish across challenging workpieces. The long reach, aided by neck relief, enables deep-pocket and shoulder milling without compromising rigidity or accuracy. TiCN coating reduces wear and friction, extending tool life when machining a variety of metals, including free-machining steels, alloys, cast iron, copper alloys, and titanium alloys. A secure Weldon 25 mm shank ensures repeatable clamping and stability in demanding setups, making this end mill ideal for precise, high-efficiency pocketing and long-reach slot milling tasks.
