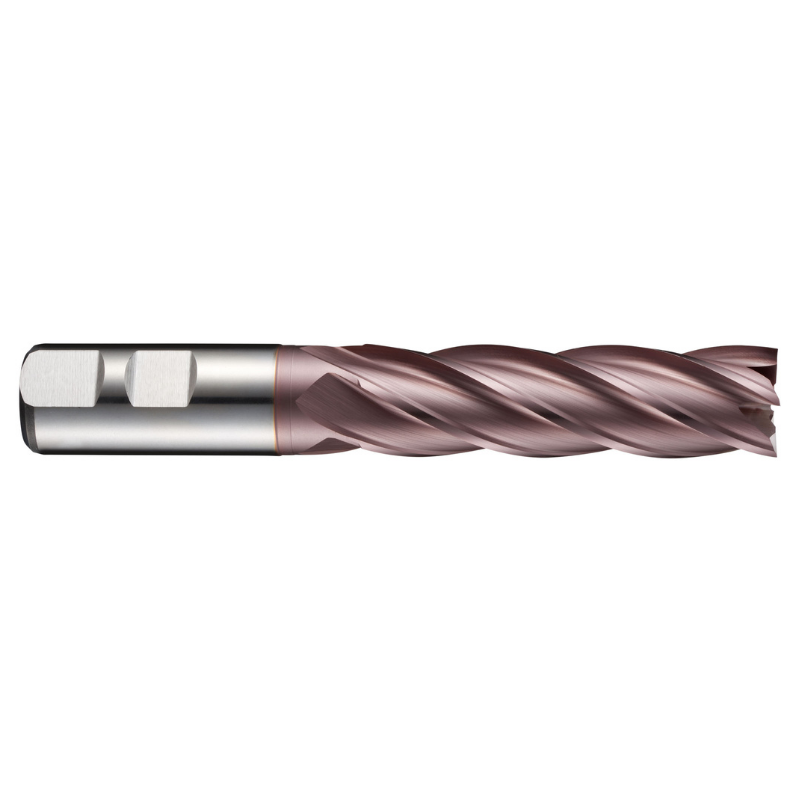

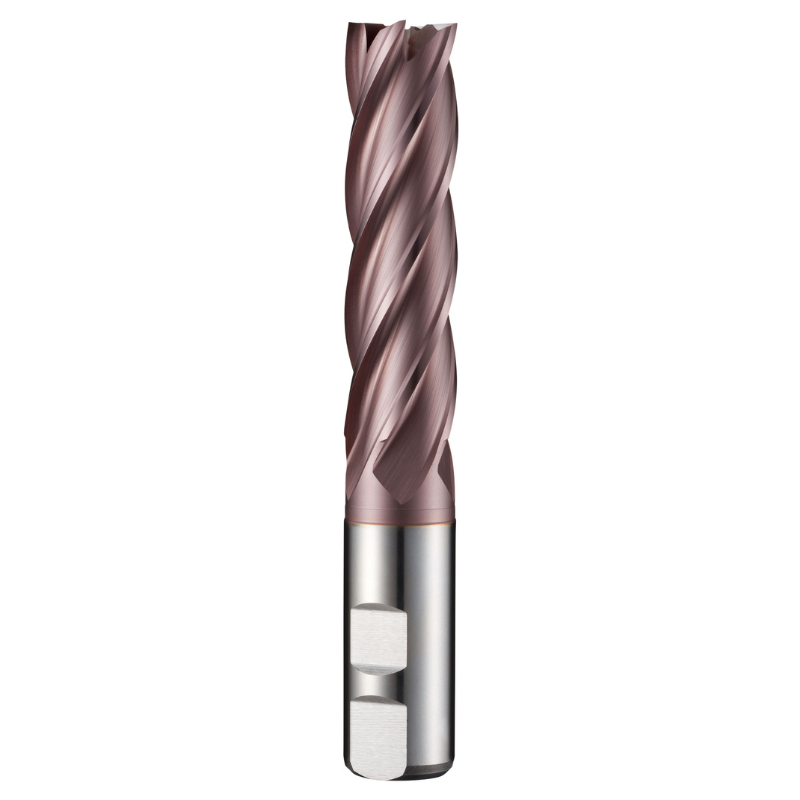

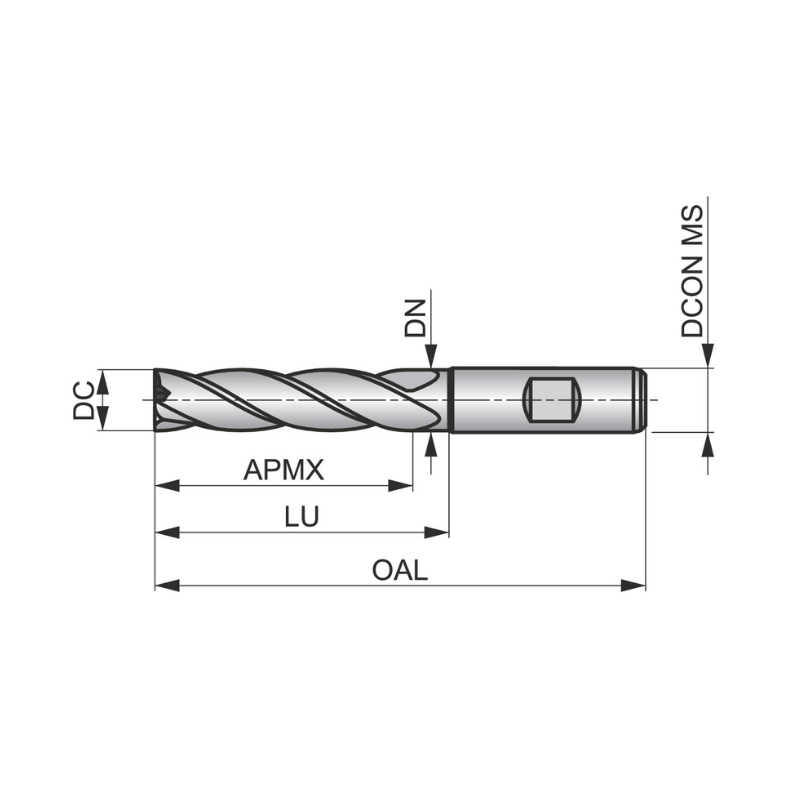

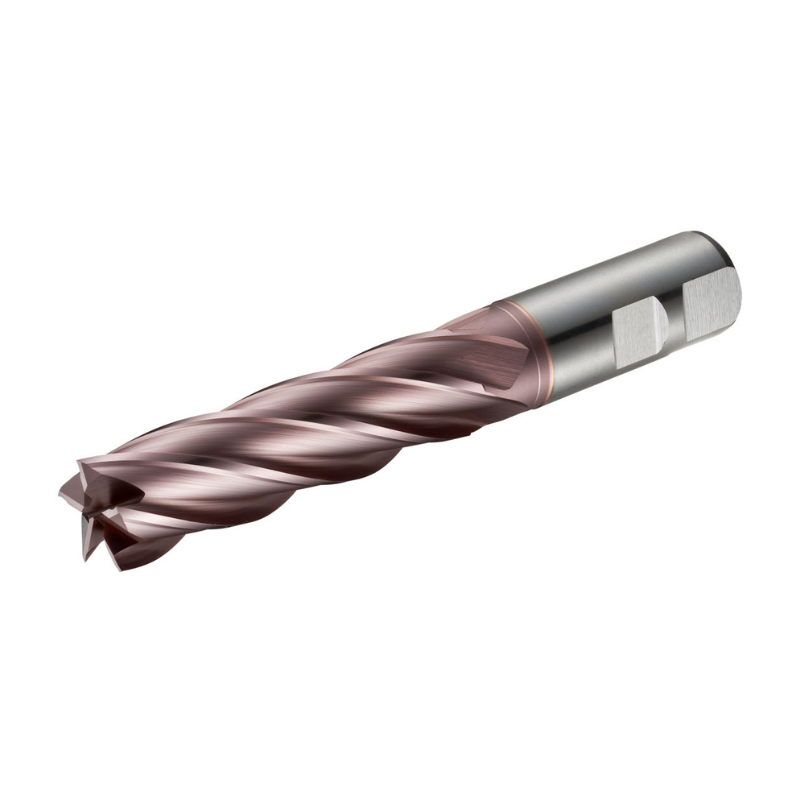

Dormer Pramet C295 30.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

Durable long-series end mill from Dormer Pramet designed for precise shoulder and slot milling. With a 30 mm diameter, 6 flutes, and a long reach, it handles deep pockets and challenging cuts in a range of metals with reliable performance.

• Diameter: 30 mm
• Flutes: 6-flute geometry for efficient material removal and smooth finishes
• Length of cut: 90 mm
• Overall length: 166 mm
• Reach with neck relief: 109.5 mm
• Shank: Weldon, 25 mm
• Material & coating: Powder-metallurgical HSS-E with TiCN coating for enhanced hardness and wear resistance
• Helix angle: 30°
• Rake angle: 12°
• DIN standard: DIN 844 L compatible
• Applications: Shoulder milling and slot milling in free-machining steel, cast iron, copper alloys, and titanium alloys

This end mill is built to deliver dependable performance in production and workshop environments. The TiCN coating helps reduce wear and heat generation during extended cuts, while the 6-flute design supports higher material removal rates without sacrificing part quality. Its long reach and neck relief enable deeper cavities and pockets, making it a versatile choice for complex milling tasks across multiple materials. The Weldon shank provides secure clamping for consistent accuracy in demanding milling operations.
