Dormer Pramet R454 11.80 mm CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L

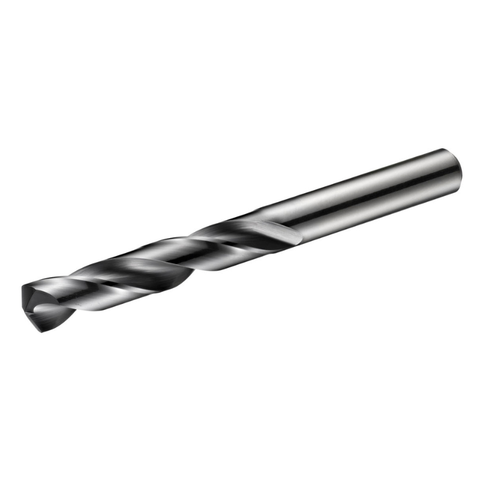

Name: Dormer Pramet R454 11.80 mm CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L
Brand: Dormer Pramet
SKU: DOR-R45411.8
Price: 77.05 GBP
Availability: InStock

SKU:DOR-R45411.8

Material Compatibility

Specifications at a glance

Type	Jobber Drill
Drill Diameter	11.80
Flute Length	70
Overall Length	118

View all specifications ↓

£77.05

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

The Dormer Pramet R454 11.80 mm carbide drill is built for tough metalworking tasks. It features a 140° four-facet split point for self-centering starts, and a TiAlN coating that extends tool life and boosts performance on harder materials. Paired with the FORCE-X stepped shank and DIN 6537 L compatibility, this drill delivers precise, repeatable holes even at higher speeds.

Self-centering 140° four-facet split point: Starts holes precisely and reduces push force, helping prevent wandering and delivering clean entry.
TiAlN coating for longer life: Improves wear resistance and heat resistance, enabling faster cutting and longer service life on steel, stainless steel, and aluminum.
CTW flute design with premium carbide for speed and reliability: Provides increased strength for higher cutting speeds and feeds, resulting in consistent hole quality on challenging materials.

By combining a precise point, protective coating and a robust flute design, this drill supports faster workflows, fewer tool changes, and reliable hole quality from start to finish. The durable carbide core and TiAlN coating help stabilize performance at high speeds, while DIN 6537 L compatibility and the FORCE-X stepped shank ensure a secure, repeatable fit for demanding applications—delivering accurate holes with h9 tolerance across steel, aluminum, and stainless steel.

Part Numbers

Protool Part Number: DOR-R45411.8
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R454 CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILLS DIN 6537 L

View full collection →

You are viewing DOR-R45411.8. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4543.0	3.00	28	66	6	£39.47	2 days
DOR-R4543.1	3.10	28	66	6	£39.47	2 days
DOR-R4541/8	1/8	28	66	6	£39.47	2 days
DOR-R4543.2	3.20	28	66	6	£39.47	2 days
DOR-R4543.3	3.30	28	66	6	£39.47	2 days
DOR-R4543.4	3.40	28	66	6	£39.47	2 days
DOR-R4543.5	3.50	28	66	6	£39.47	2 days
DOR-R4549/64	9/64	28	66	6	£39.47	2 days
DOR-R4543.6	3.60	28	66	6	£39.47	2 days
DOR-R4543.7	3.70	28	66	6	£39.47	2 days
DOR-R4543.8	3.80	36	74	6	£39.47	2 days
DOR-R4543.9	3.90	36	74	6	£39.47	2 days
DOR-R4545/32	5/32	36	74	6	£39.47	2 days
DOR-R4544.0	4.00	36	74	6	£39.47	2 days
DOR-R4544.1	4.10	36	74	6	£40.66	2 days
DOR-R4544.2	4.20	36	74	6	£40.66	2 days
DOR-R4544.3	4.30	36	74	6	£40.66	2 days
DOR-R45411/64	11/64	36	74	6	£40.66	2 days
DOR-R4544.4	4.40	36	74	6	£40.66	2 days
DOR-R4544.5	4.50	36	74	6	£40.66	2 days
DOR-R4544.6	4.60	36	74	6	£40.66	2 days
DOR-R4544.7	4.70	36	74	6	£40.66	2 days
DOR-R4543/16	3/16	44	82	6	£40.66	2 days
DOR-R4544.8	4.80	44	82	6	£40.66	2 days
DOR-R4544.9	4.90	44	82	6	£40.66	2 days
DOR-R4545.0	5.00	44	82	6	£40.66	2 days
DOR-R4545.1	5.10	44	82	6	£40.66	2 days
DOR-R45413/64	13/64	44	82	6	£40.66	2 days
DOR-R4545.2	5.20	44	82	6	£40.66	2 days
DOR-R4545.5	5.50	44	82	6	£40.66	2 days
DOR-R4547/32	7/32	44	82	6	£40.66	2 days
DOR-R4545.6	5.60	44	82	6	£40.66	2 days
DOR-R4545.7	5.70	44	82	6	£40.66	2 days
DOR-R4545.8	5.80	44	82	6	£40.66	2 days
DOR-R45415/64	15/64	44	82	6	£40.66	2 days
DOR-R4546.0	6.00	44	82	6	£40.66	2 days
DOR-R4546.1	6.10	53	91	8	£46.79	2 days
DOR-R4546.2	6.20	53	91	8	£46.79	2 days
DOR-R4546.3	6.30	53	91	8	£46.79	2 days
DOR-R4541/4	1/4	53	91	8	£46.79	2 days
DOR-R4546.4	6.40	53	91	8	£46.79	2 days
DOR-R4546.5	6.50	53	91	8	£46.79	2 days
DOR-R4546.6	6.60	53	91	8	£46.79	2 days
DOR-R4546.7	6.70	53	91	8	£46.79	2 days
DOR-R45417/64	17/64	53	91	8	£46.79	2 days
DOR-R4546.8	6.80	53	91	8	£46.79	2 days
DOR-R4546.9	6.90	53	91	8	£46.79	2 days
DOR-R4547.0	7.00	53	91	8	£46.79	2 days
DOR-R4547.1	7.10	53	91	8	£46.79	2 days
DOR-R4549/32	9/32	53	91	8	£46.79	2 days
DOR-R4547.3	7.30	53	91	8	£46.79	2 days
DOR-R4547.4	7.40	53	91	8	£46.79	2 days
DOR-R4547.5	7.50	53	91	8	£46.79	2 days
DOR-R45419/64	19/64	53	91	8	£46.79	2 days
DOR-R4547.6	7.60	53	91	8	£46.79	2 days
DOR-R4547.7	7.70	53	91	8	£46.79	2 days
DOR-R4547.8	7.80	53	91	8	£46.79	2 days
DOR-R4547.9	7.90	53	91	8	£46.79	2 days
DOR-R4545/16	5/16	53	91	8	£46.79	2 days
DOR-R4548.0	8.00	53	91	8	£46.79	2 days
DOR-R4548.1	8.10	61	103	10	£52.87	2 days
DOR-R4548.2	8.20	61	103	10	£52.87	2 days
DOR-R45421/64	21/64	61	103	10	£52.87	2 days
DOR-R4548.4	8.40	61	103	10	£52.87	2 days
DOR-R4548.5	8.50	61	103	10	£52.87	2 days
DOR-R4548.6	8.60	61	103	10	£52.87	2 days
DOR-R4548.7	8.70	61	103	10	£52.87	2 days
DOR-R45411/32	11/32	61	103	10	£52.87	2 days
DOR-R4548.8	8.80	61	103	10	£52.87	2 days
DOR-R4548.9	8.90	61	103	10	£52.87	2 days
DOR-R4549.0	9.00	61	103	10	£52.87	2 days
DOR-R4549.1	9.10	61	103	10	£52.87	2 days
DOR-R45423/64	23/64	61	103	10	£52.87	2 days
DOR-R4549.3	9.30	61	103	10	£52.87	2 days
DOR-R4549.4	9.40	61	103	10	£52.87	2 days
DOR-R4549.5	9.50	61	103	10	£52.87	2 days
DOR-R4543/8	3/8	61	103	10	£52.87	2 days
DOR-R4549.6	9.60	61	103	10	£52.87	2 days
DOR-R4549.7	9.70	61	103	10	£52.87	2 days
DOR-R4549.8	9.80	61	103	10	£52.87	2 days
DOR-R4549.9	9.90	61	103	10	£52.87	2 days
DOR-R45425/64	25/64	61	103	10	£52.87	2 days
DOR-R45410.0	10.00	61	103	10	£52.87	2 days
DOR-R45410.1	10.10	70	118	12	£77.05	2 days
DOR-R45410.2	10.20	70	118	12	£77.05	2 days
DOR-R45410.3	10.30	70	118	12	£77.05	2 days
DOR-R45413/32	13/32	70	118	12	£77.05	2 days
DOR-R45410.4	10.40	70	118	12	£77.05	2 days
DOR-R45410.5	10.50	70	118	12	£77.05	2 days
DOR-R45410.6	10.60	70	118	12	£77.05	2 days
DOR-R45427/64	27/64	70	118	12	£77.05	2 days
DOR-R45411.0	11.00	70	118	12	£77.05	2 days
DOR-R4547/16	7/16	70	118	12	£77.05	2 days
DOR-R45411.2	11.20	70	118	12	£77.05	2 days
DOR-R45411.4	11.40	70	118	12	£77.05	2 days
DOR-R45411.5	11.50	70	118	12	£77.05	2 days
DOR-R45429/64	29/64	70	118	12	£77.05	2 days
DOR-R45411.6	11.60	70	118	12	£77.05	2 days
DOR-R45411.8 Viewing	11.80	70	118	12	£77.05	2 days
DOR-R45415/32	15/32	70	118	12	£77.05	2 days
DOR-R45412.0	12.00	70	118	12	£77.05	2 days
DOR-R45412.1	12.10	76	124	14	£99.54	2 days
DOR-R45412.2	12.20	76	124	14	£99.54	2 days
DOR-R45431/64	31/64	76	124	14	£99.54	2 days
DOR-R45412.5	12.50	76	124	14	£99.54	2 days
DOR-R45412.7	12.70	76	124	14	£99.54	2 days
DOR-R4541/2	1/2	76	124	14	£99.54	2 days
DOR-R45412.8	12.80	76	124	14	£99.54	2 days
DOR-R45413.0	13.00	76	124	14	£99.54	2 days
DOR-R45433/64	33/64	76	124	14	£99.54	2 days
DOR-R45417/32	17/32	76	124	14	£99.54	2 days
DOR-R45413.5	13.50	76	124	14	£99.54	2 days
DOR-R45413.8	13.80	76	124	14	£99.54	2 days
DOR-R45435/64	35/64	76	124	14	£99.54	2 days
DOR-R45414.0	14.00	76	124	14	£99.54	2 days
DOR-R45414.25	14.25	82	133	16	£128.23	2 days
DOR-R4549/16	9/16	82	133	16	£128.23	2 days
DOR-R45414.5	14.50	82	133	16	£128.23	2 days
DOR-R45437/64	37/64	82	133	16	£128.23	2 days
DOR-R45414.8	14.80	82	133	16	£128.23	2 days
DOR-R45415.0	15.00	82	133	16	£128.23	2 days
DOR-R45419/32	19/32	82	133	16	£128.23	2 days
DOR-R45415.1	15.10	82	133	16	£128.23	2 days
DOR-R45439/64	39/64	82	133	16	£128.23	2 days
DOR-R45415.5	15.50	82	133	16	£128.23	2 days
DOR-R45415.8	15.80	82	133	16	£128.23	2 days
DOR-R4545/8	5/8	82	133	16	£128.23	2 days
DOR-R45416.0	16.00	82	133	16	£128.23	2 days
DOR-R45441/64	41/64	91	143	18	£201.90	2 days
DOR-R45416.5	16.50	91	143	18	£201.90	2 days
DOR-R45421/32	21/32	91	143	18	£201.90	2 days
DOR-R45417.0	17.00	91	143	18	£201.90	2 days
DOR-R45443/64	43/64	91	143	18	£201.90	2 days
DOR-R45411/16	11/16	91	143	18	£201.90	2 days
DOR-R45417.5	17.50	91	143	18	£201.90	2 days
DOR-R45417.8	17.80	91	143	18	£201.90	2 days
DOR-R45445/64	45/64	91	143	18	£201.90	2 days
DOR-R45418.0	18.00	91	143	18	£201.90	2 days
DOR-R45423/32	23/32	99	153	20	£224.40	2 days
DOR-R45418.5	18.50	99	153	20	£224.40	2 days
DOR-R45447/64	47/64	99	153	20	£224.40	2 days
DOR-R45419.0	19.00	99	153	20	£224.40	2 days
DOR-R4543/4	3/4	99	153	20	£224.40	2 days
DOR-R45419.5	19.50	99	153	20	£224.40	2 days
DOR-R45419.8	19.80	99	153	20	£224.40	2 days
DOR-R45420.0	20.00	99	153	20	£224.40	2 days
DOR-R454A	5.94	44	82	6	£40.66	2 days
DOR-R454B	6.05	53	91	8	£46.79	2 days
DOR-R454C	6.15	53	91	8	£46.79	2 days
DOR-R454D	6.25	53	91	8	£46.79	2 days
DOR-R454E	6.35	53	91	8	£46.79	2 days
DOR-R454F	6.53	53	91	8	£46.79	2 days
DOR-R454G	6.63	53	91	8	£46.79	2 days
DOR-R454H	6.76	53	91	8	£46.79	2 days
DOR-R454I	6.91	53	91	8	£46.79	2 days
DOR-R454J	7.04	53	91	8	£46.79	2 days
DOR-R454L	7.37	53	91	8	£46.79	2 days
DOR-R454N	7.67	53	91	8	£46.79	2 days
DOR-R454O	8.03	61	103	10	£52.87	2 days
DOR-R454Q	8.43	61	103	10	£52.87	2 days
DOR-R454R	8.61	61	103	10	£52.87	2 days
DOR-R454S	8.84	61	103	10	£52.87	2 days
DOR-R454U	9.35	61	103	10	£52.87	2 days
DOR-R454W	9.80	61	103	10	£52.87	2 days
DOR-R454X	10.08	70	118	12	£77.05	2 days
DOR-R454Y	10.26	70	118	12	£77.05	2 days
DOR-R454Z	10.49	70	118	12	£77.05	2 days
DOR-R454N1	5.79	44	82	6	£40.66	2 days
DOR-R454N2	5.61	44	82	6	£40.66	2 days
DOR-R454N3	5.41	44	82	6	£40.66	2 days
DOR-R454N4	5.31	44	82	6	£40.66	2 days
DOR-R454N5	5.22	44	82	6	£40.66	2 days
DOR-R454N6	5.18	44	82	6	£40.66	2 days
DOR-R454N7	5.11	44	82	6	£40.66	2 days
DOR-R454N8	5.06	44	82	6	£40.66	2 days
DOR-R454N9	4.98	44	82	6	£40.66	2 days
DOR-R454N10	4.92	44	82	6	£40.66	2 days
DOR-R454N11	4.85	44	82	6	£40.66	2 days
DOR-R454N14	4.62	36	74	6	£40.66	2 days
DOR-R454N15	4.57	36	74	6	£40.66	2 days
DOR-R454N16	4.50	36	74	6	£40.66	2 days
DOR-R454N19	4.22	36	74	6	£40.66	2 days
DOR-R454N20	4.09	36	74	6	£40.66	2 days
DOR-R454N21	4.04	36	74	6	£40.66	2 days
DOR-R454N24	3.86	36	74	6	£39.47	2 days
DOR-R454N26	3.73	36	74	6	£39.47	2 days
DOR-R454N27	3.66	28	66	6	£39.47	2 days
DOR-R454N28	3.57	28	66	6	£39.47	2 days
DOR-R454N29	3.45	28	66	6	£39.47	2 days
DOR-R454N30	3.26	28	66	6	£39.47	2 days
