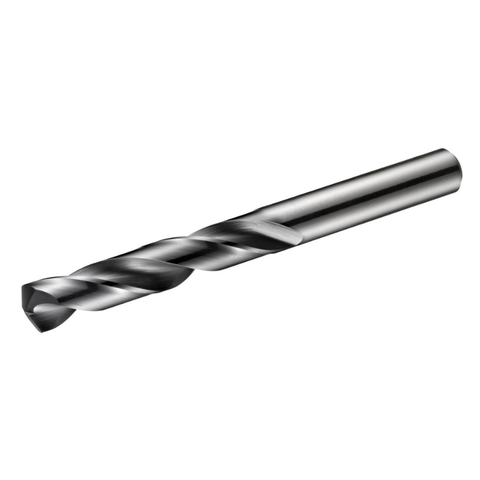

Dormer Pramet R454 13.00 mm CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L

The Dormer Pramet R454 13.00 mm carbide drill is built for reliable, high-quality hole production. It features a stepped shank from the standard X5D series and a DIN 6537 L length, making it compatible with a wide range of toolholders while delivering consistent performance across common metals such as steel, aluminium, and stainless steel.

Engineered for accuracy under demanding conditions, the drill combines a 140° four-facet split point for easy self-centering and reduced start-up force, a Titanium Aluminium Nitride (TiAlN) coating for longer tool life and better performance on harder materials, and a CTW flute design that strengthens the tool and supports higher cutting speeds and feeds for faster, repeatable results.

• Self-centering Split Point (140°): Starts holes precisely where you intend, minimizes wandering, and reduces the push force required during drilling.
• TiAlN Coating: Extends tool life and improves performance on steel, aluminium, and stainless steel, enabling longer production runs between changes.
• CTW Flute Design: Increases tool strength and supports higher speeds and feeds, delivering consistent hole quality even under challenging cutting conditions.

This high-performance drill delivers accurate holes at higher speeds and feeds while withstanding demanding production environments. Its carbide construction, TiAlN coating, and robust flute geometry work together to reduce downtime, improve workflow, and help you achieve tight tolerances (h9) across a range of common materials. Whether fabricating frames, fixtures, or structural components, the R454 13.00 mm drill offers dependable performance from setup to finish.
